VFD EtherNet/IP Option Card
Option Card Application Manual
54
5.1.2 A Demonstration of Rockwell Automation PLC
Device
ControlLogix 1756-L71
1756-EN2TR
192.168.1.20
C2000
CMC-EIP01
192.168.1.106
Software Logix Designer V31.00.00

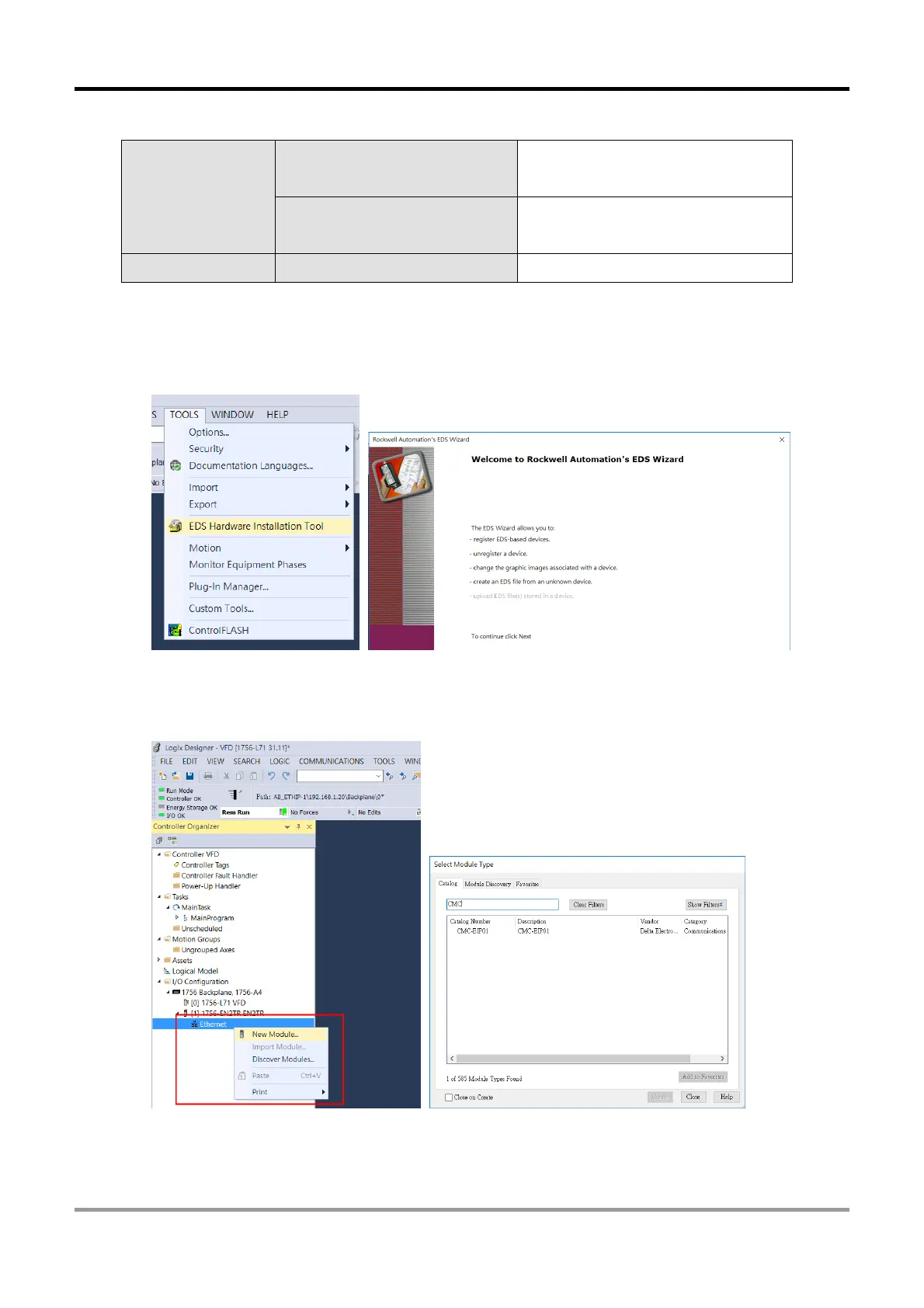

1. For details on setting the IP address of option card and drive parameters, see Chapter 4.
2. Open Logix Designer software to install the EDS file. Download the latest EDS file from
Delta’s website.
3. After the installation is finished, in Controller Organizer → I/O Configuration panel, right-
click Ethernet, and then click New Module to add device.
