Delta CMM-EIP02 User Manual

VFD EtherNet/IP Option Card
Option Card Application Manual
20
○
2
○
3
○
4
○
1

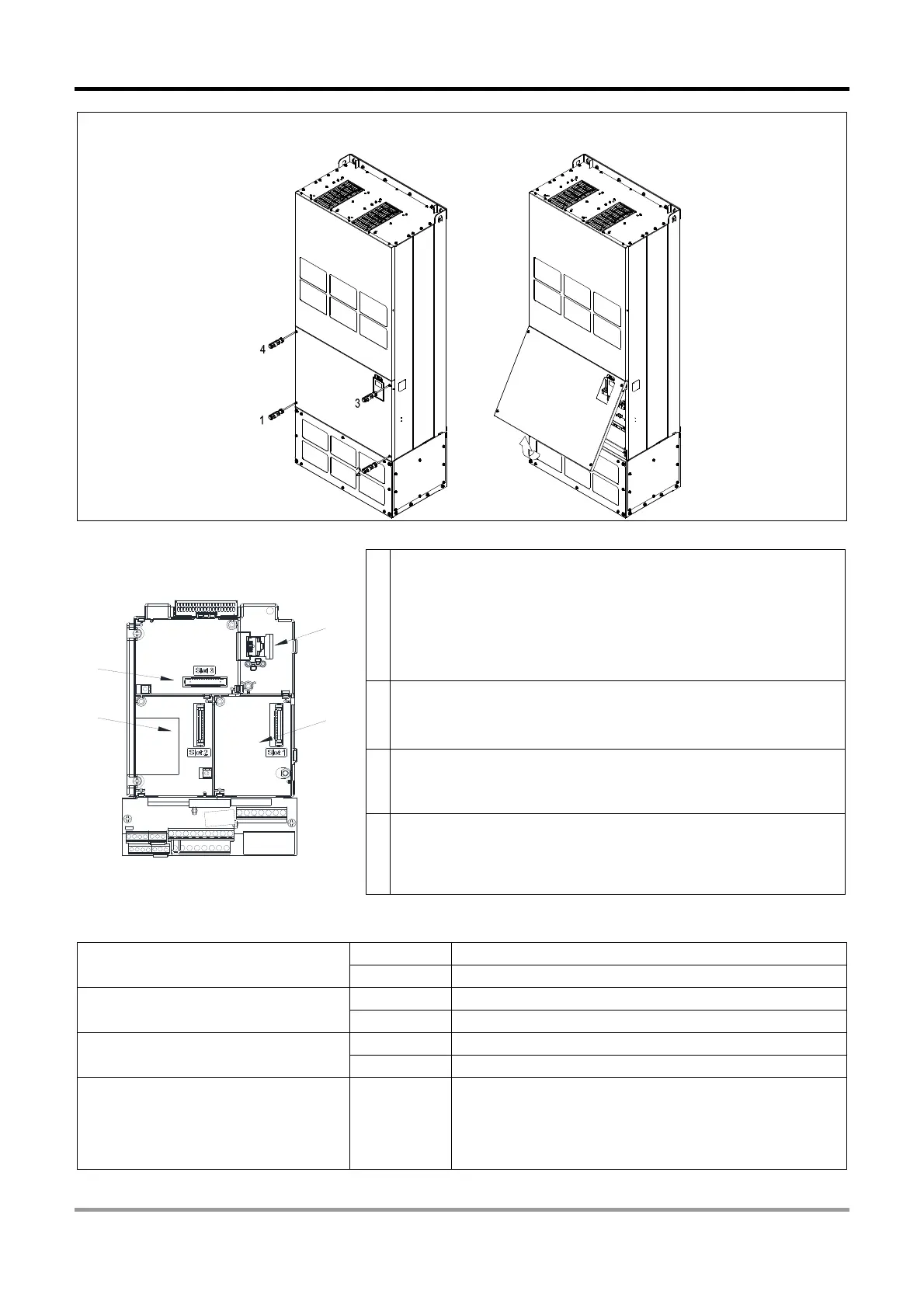

Frame H
Screw torque: 14–16 kg-cm / (12.15–13.89 lb-in.) / (1.4–1.6 Nm)
1
RJ45 (Socket) for digital keypad KPC-CC01
 See Chapter 10 <Digital Keypad> in M300 and C2000 user
manuals for details on using the digital keypad.
 You can buy the optional accessory RJ45 extension lead as
required. See Chapter 10 <Digital Keypad> in M300 and C2000
user manuals for details.
2
Communication extension card (Slot 1)
CMC-PD01; CMC-DN01; CMC-EIP01; EMC-COP01; CMC-EC01;
CMC-PN01
3
I/O & Relay extension card (Slot 3)
EMC-D42A; EMC-D611A; EMC-A22A; EMC-R6AA; EMC-BPS01
4
PG card (Slot 2)
EMC-PG01L; EMC-PG02L; EMC-PG01O; EMC-PG02O;
EMC-PG01U; EMC-PG02U; EMC-PG01R; EMC-PG01H
Specifications for Option Card Terminals
EMC-D42A; EMC-D611A; EMC-BPS01
Wire Gauge 0.2–0.5 mm
2
(26–20 AWG)
Torque 5 kg-cm / (4.4 Ib-in.) / (0.5 Nm)
EMC-R6AA
Wire Gauge 0.2–0.5 mm
2
(26–20 AWG)
Torque 8 kg-cm / (7 Ib-in.) / (0.8 Nm)
EMC-A22A
Wire Gauge 0.2–4 mm
2
(24–12 AWG)
Torque 5 kg-cm / (4.4 Ib-in.) / (0.5 Nm)
EMC-PG01L; EMC-PG02L;
EMC-PG01O; EMC-PG02O;
EMC-PG01U; EMC-PG02U;
EMC-PG01R; EMC-PG01H
Wire Gauge 0.2–0.5 mm
2
(26–20 AWG)
Slot 1
Slot 3
Slot 2
