VFD EtherNet/IP Option Card
Option Card Application Manual
40

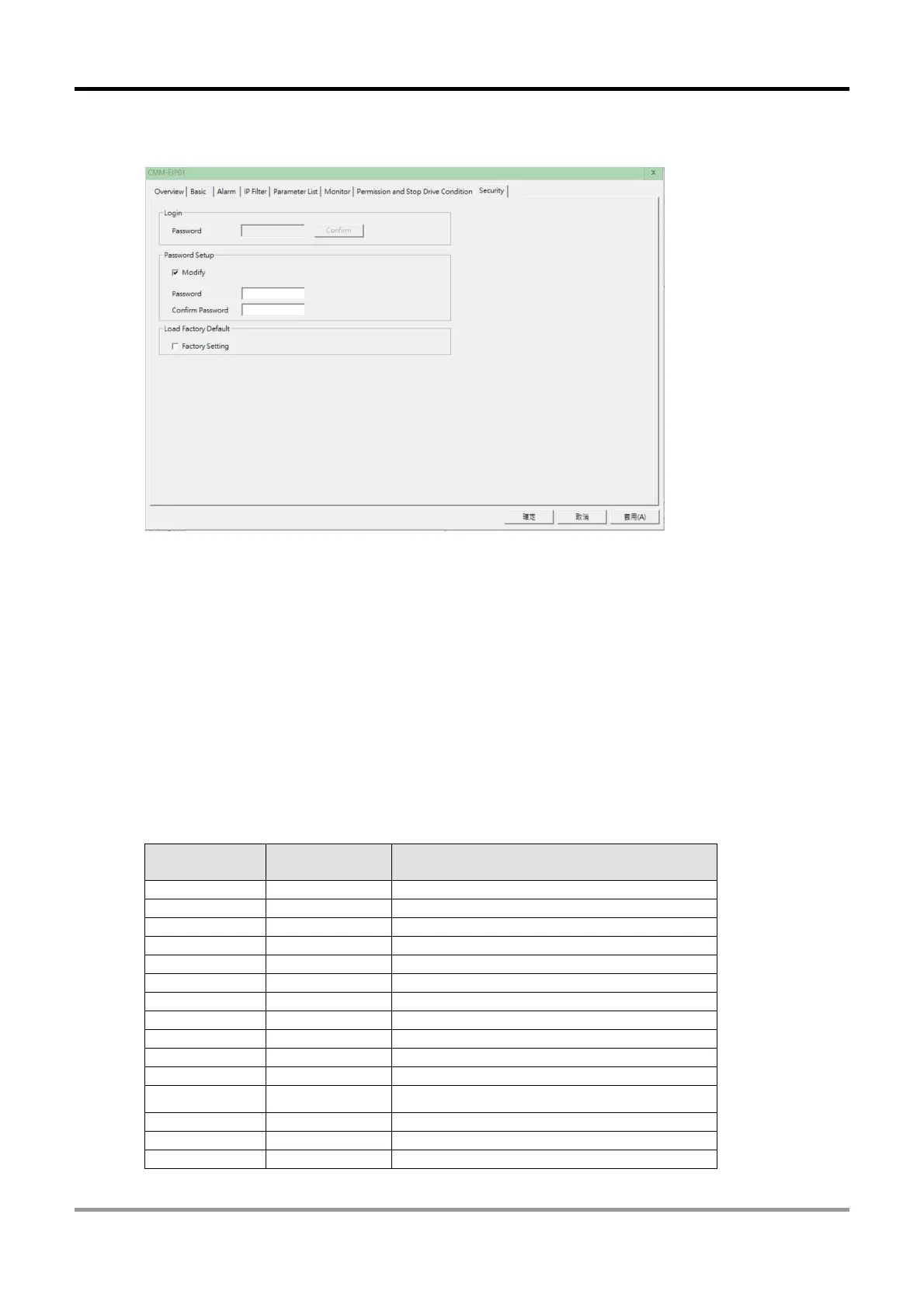

5. To clear the password, select Modify in Security page. Empty the Password and Password
Confirm columns, and then press Apply button to clear the password.
6. After you have cleared the password, you can modify the parameters without entering any
password.
Password missing: When DSCISoft setting page opens, the page is locked with password
and you cannot change any settings. You are also unable to restore the settings to default
values. At this time, use the digital keypad to set Pr.09-90 = 1 to restore the option card to
default settings.
Change IP address: You can use the digital keypad to change the network parameters even
under password protection.
For example, assume that the password is 1234, if you need to change IP address to
192.168.1.16, set the parameters according to the table below.
Keypad
Address
Setting Value Function Description
09-75 0 Set the IP address is assigned by Static IP.
09-76 192 IP Address 1
09-77 168 IP Address 2
09-78 1 IP Address 3
09-79 16 IP Address 4
09-80 255 Netmask 1
09-81 255 Netmask 2
09-82 255 Netmask 3
09-83 0 Netmask 4
09-84 192 Gateway 1
09-85 168 Gateway 2
09-86 1 Gateway 3
09-87 1 Gateway 4
09-88 34 Password Low
09-89 12 Password High
