DVP-ES3/EX3/SV3/SX3 Series Hardware and Operation Manual

8-36

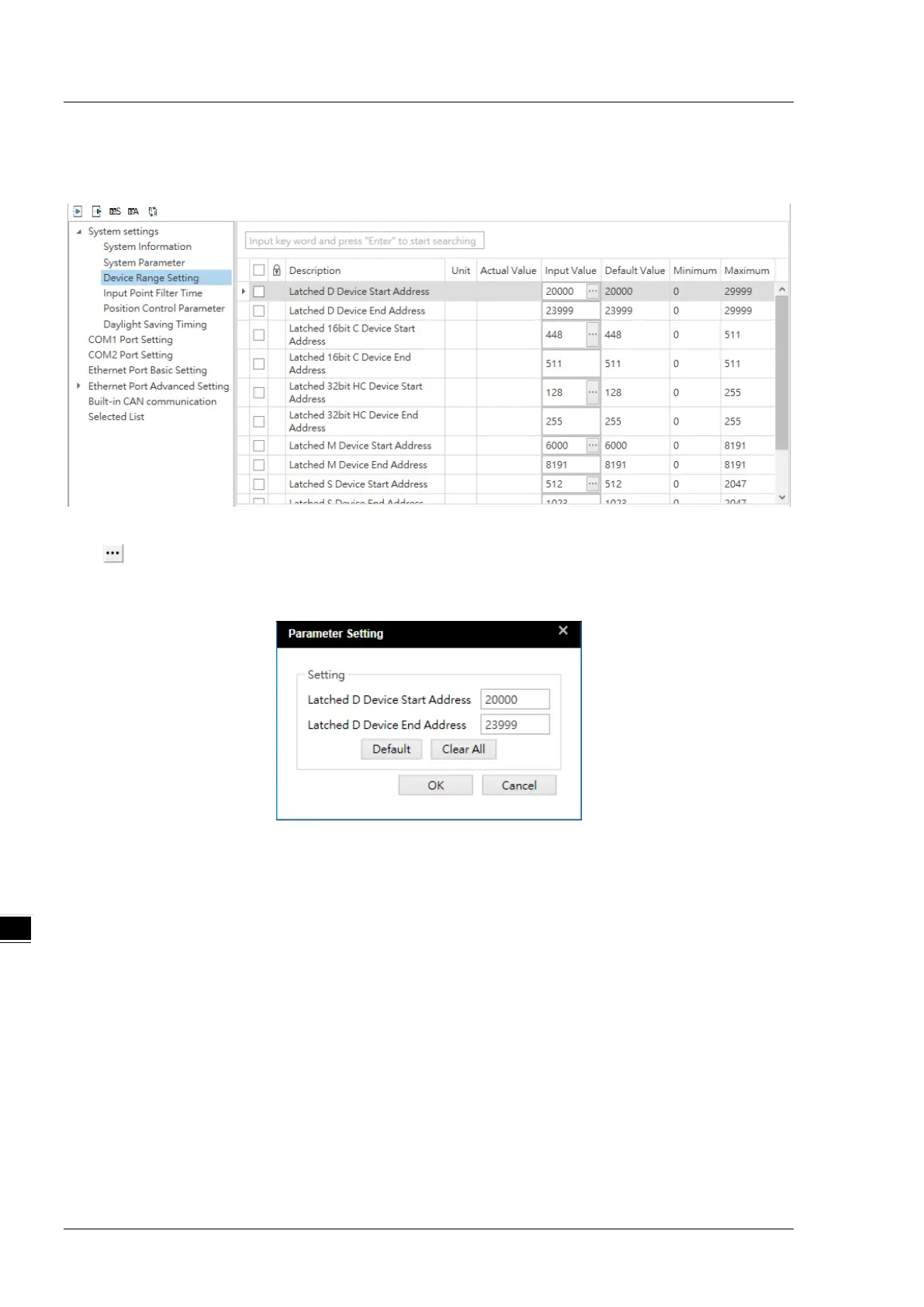

Device Range Setting

The parameters on

Device Range Setting

table are shown in the following window.

Click

to open the parameter dialog box to set the start and end address. In the dialog box, click

Default

to restore

the setting to the default values; click

Clear

to clear the set values; click

to save the values and close the dialog

box; click

Cancel

to discard the setting and close the dialog box.
