DVP-ES3/EX3/SV3/SX3 Series Hardware and Operation Manual

9-74

9.11.1.2 Using the Webpage

List of browsers that support DVP-ES3/EX3/SV3/SX3 Series webpage:

Provider Browser Supported versions

Microsoft Internet Explorer V10.0 and later

Microsoft Edge V20 and later

Google Chrome V14 and later

Mozilla Firefox V17 and later

Apple Safari V5.1 and later

 Operation Steps:

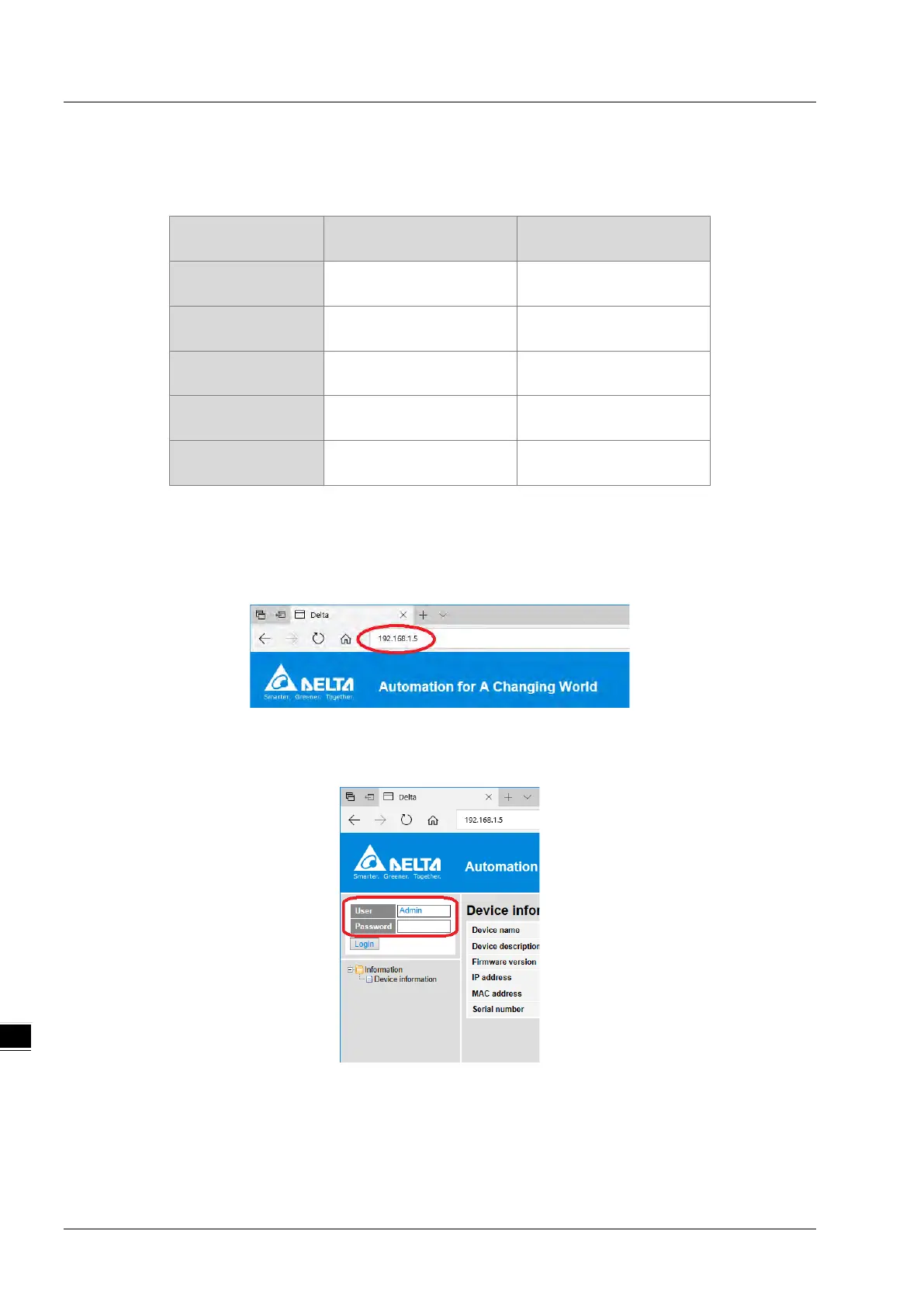

a. Open your browser, enter DVP-ES3 IP address in the search bar to connect to DVP-ES3 PLC.

b. After the webpage appears, enter “Admin” in the User section and click Login without entering any password.

Set up the password after login to ensure security.
