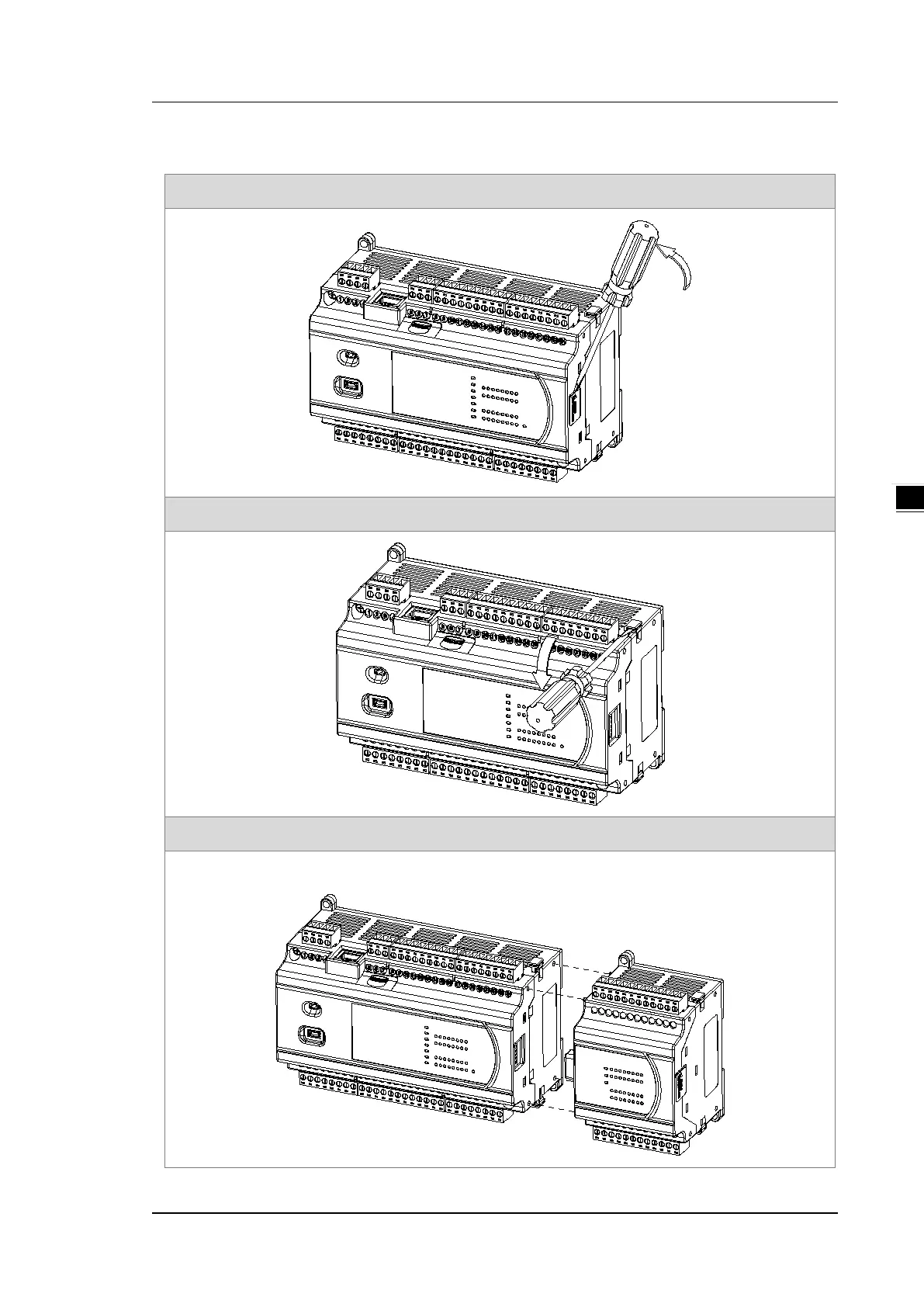

4.1.3.2 Linking the CPU Module and a Module
Step 1: Use a flat head screwdriver to open the side cover on the CPU module for linking a module.
Step 2: Use a flat head screwdriver to release the I/O module securing clip.
Step 3: Connect the CPU module and the module with the I/O connecting ports.
