Chapter 9 Ethernet Specification and Operation
9-23

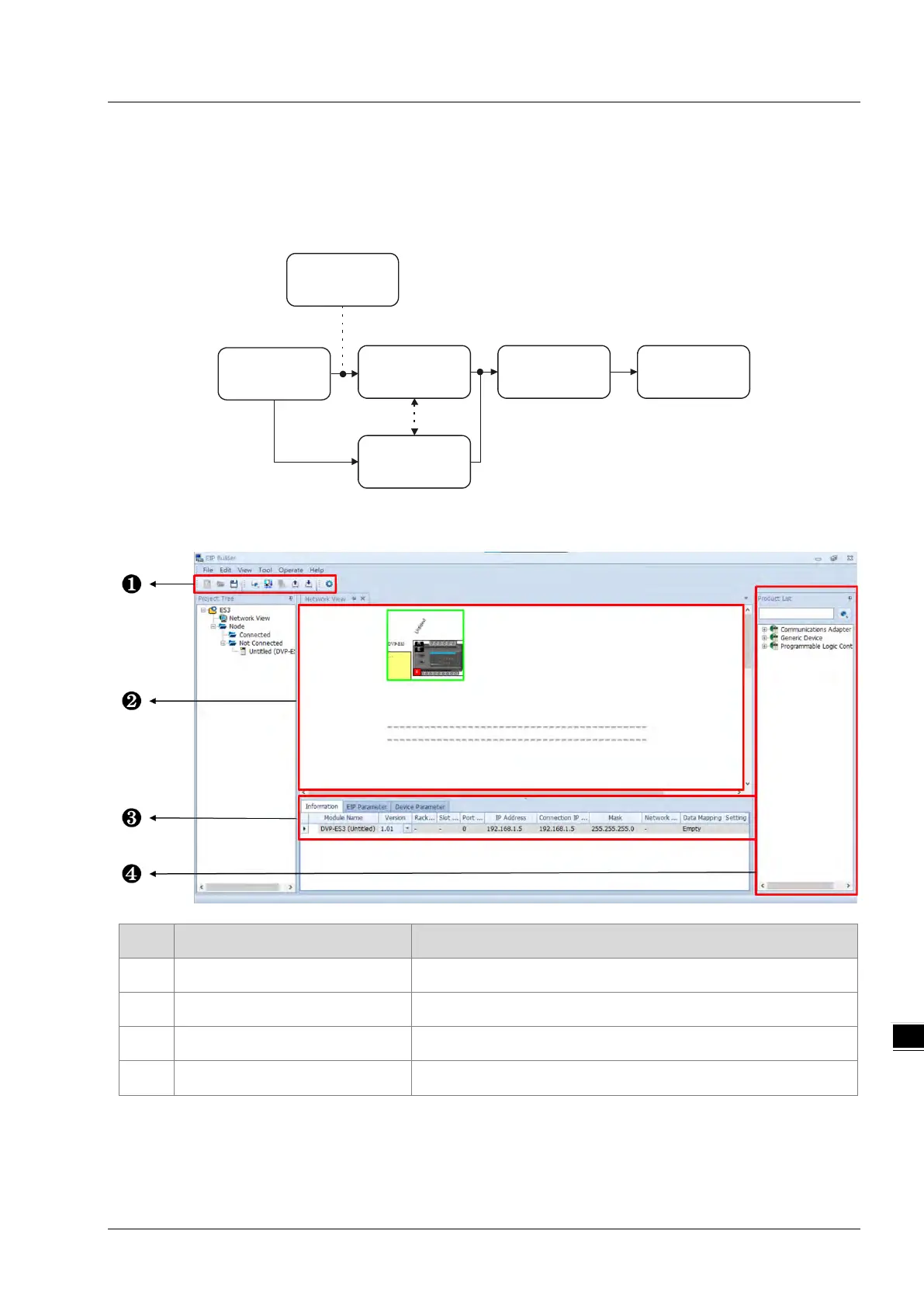

9.4.3 Network
EIP Builder provides a graphical user interface, and you can see the devices and their EtherNet/IP connections in the
Network View. This section provides an overview of how to add your devices to the network connections.
Add Device
(Scan Network)
Create Network
(Set u p Connection)
Set up Device
Settings
IP Manager
(Set up IP)
Add Devices
(Manually)
EIPBuilder
Descriptions of the EIP Builder Window
Item Definition
Toolbar Toolbar buttons
Network View Displays the connected devices and their connection status
Configuration Area Displays the configurations and allows you to set the parameters
Product List Displays the available devices that can be connected to EtherNet/IP
