Chapter 9 Ethernet Specification and Operation

9-83

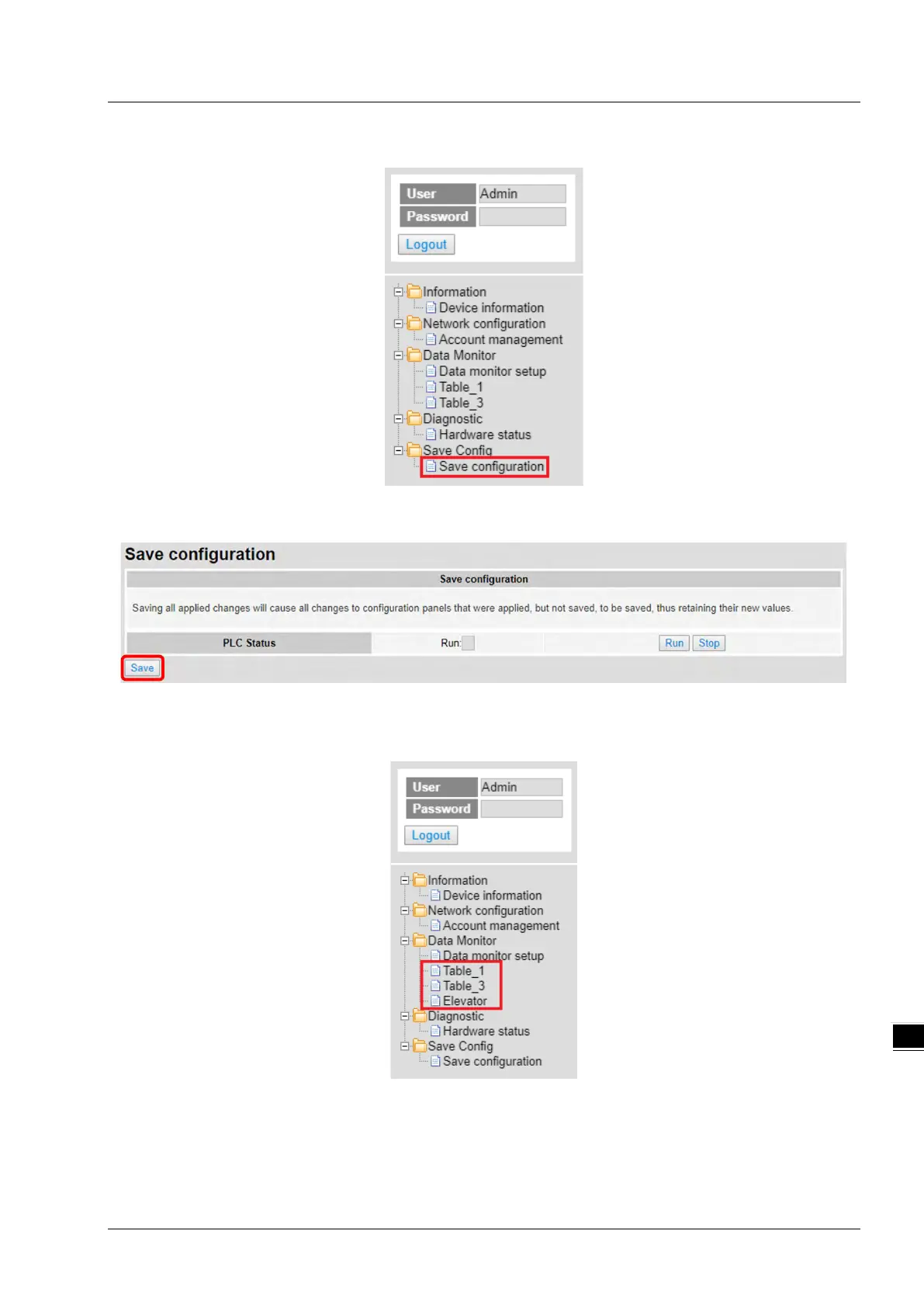

e. Double-click Save configuration to open the setting page.

f. Click “Save” to save and download the settings to the device.

g. Once the download is complete, you can see the newly added table to be monitored under the Data Monitor

node.

h. Note: The data monitor table must be downloaded to the device otherwise even if the data monitor table is

created, it cannot be monitored.
