Chapter 10 CANopen Function and Operation

10-35

3. Setting the CANopen Baud Rate and Node ID of DVP-ES3 Series PLC

The DVP-ES3 Series PLC uses the default setting values: Node ID: 1 and baud rate: 1Mbps.

You set the CANopen Node ID and baud rate for the DVP-ES3 Series PLC in the CANopen Builder

software, as shown in the following steps.

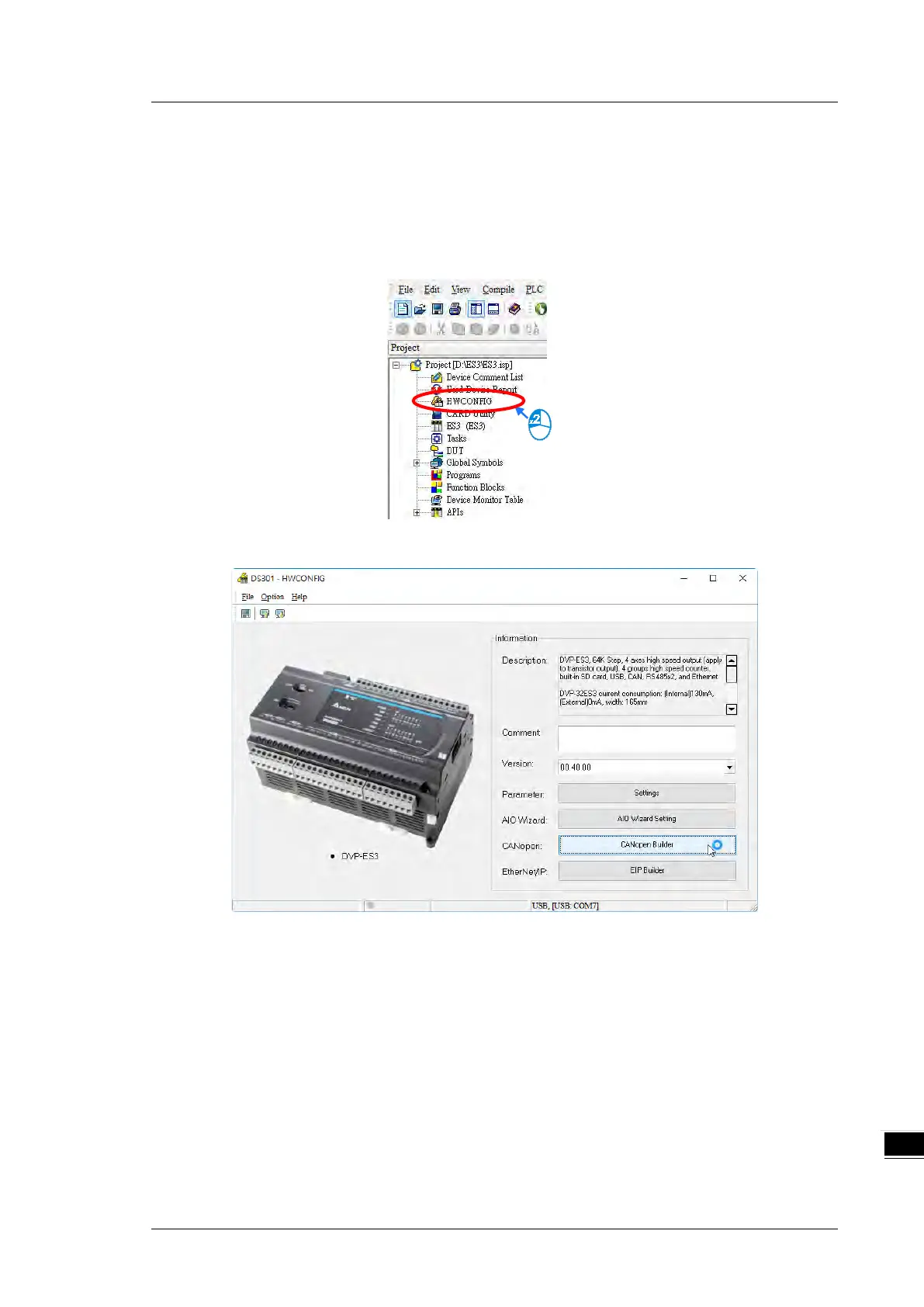

A. In ISPSoft, double-click HWCONFIG in the project management area to start HWCONFIG.

B. Click CANopen Builder.

DELTA_IA-PLC_DVP-ES3-EX3-SV3-SX31
