Chapter 10 CANopen Function and Operation

10-37

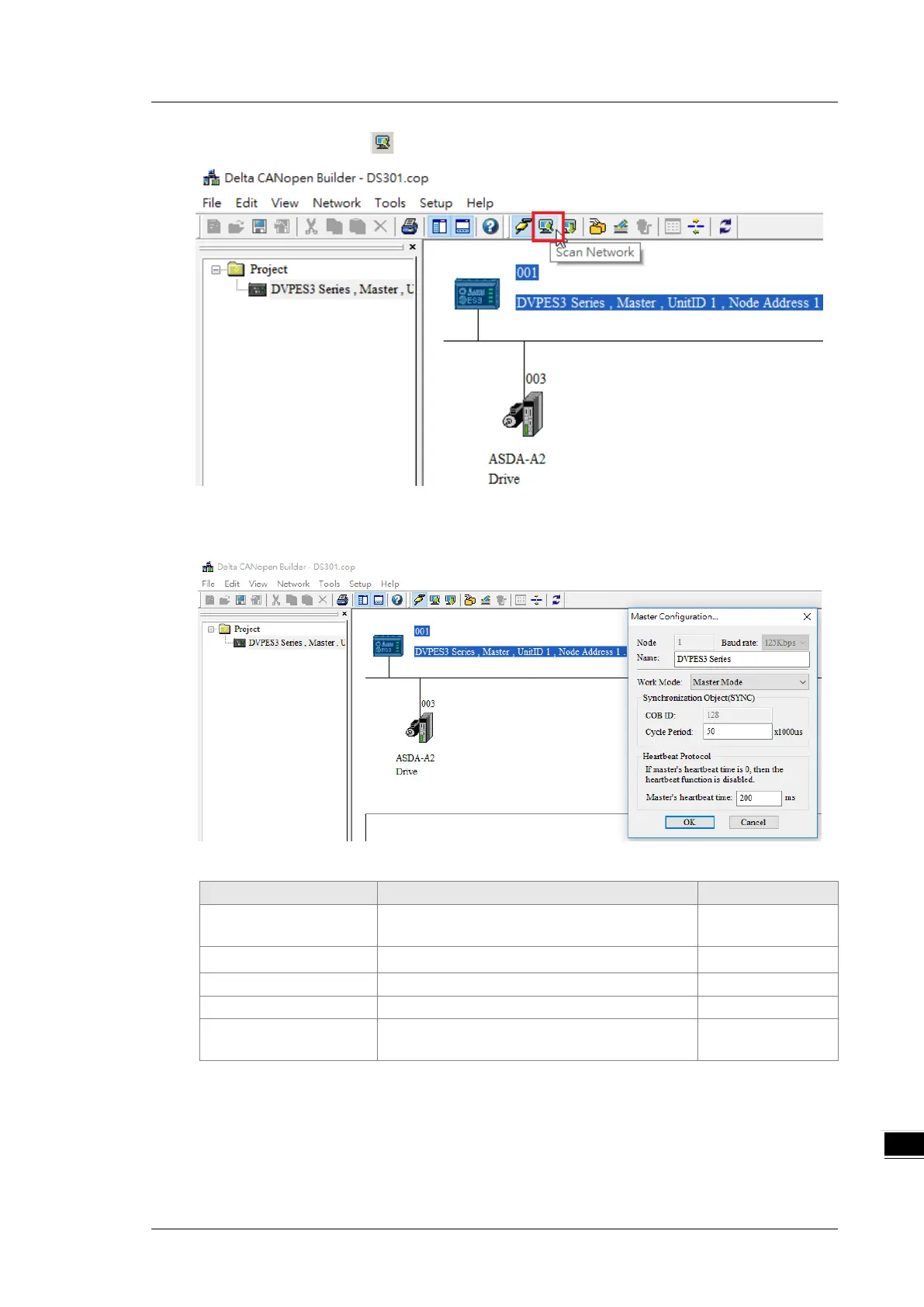

E. Click the Scan Network button on the Toolbar to scan the network.

F. On the Network menu, click Master parameter to display the Master Configuration dialog box.

Item

Explanation

Default

Node ID

Node ID of DVP-ES3 Series PLC on the

CANopen network

Baud rate CANopen communication rate 1M bit/second

Work mode

CANopen master/slave mode

Master

Cycle period

Cycle time for sending one SYNC message

50ms

Master heartbeat time

Interval time for sending the master heartbeat

message

200ms

Configure the CANopen communication stations and rates in HWCONFIG.
