DVP-ES3/EX3/SV3/SX3 Series Hardware and Operation Manual

2-30

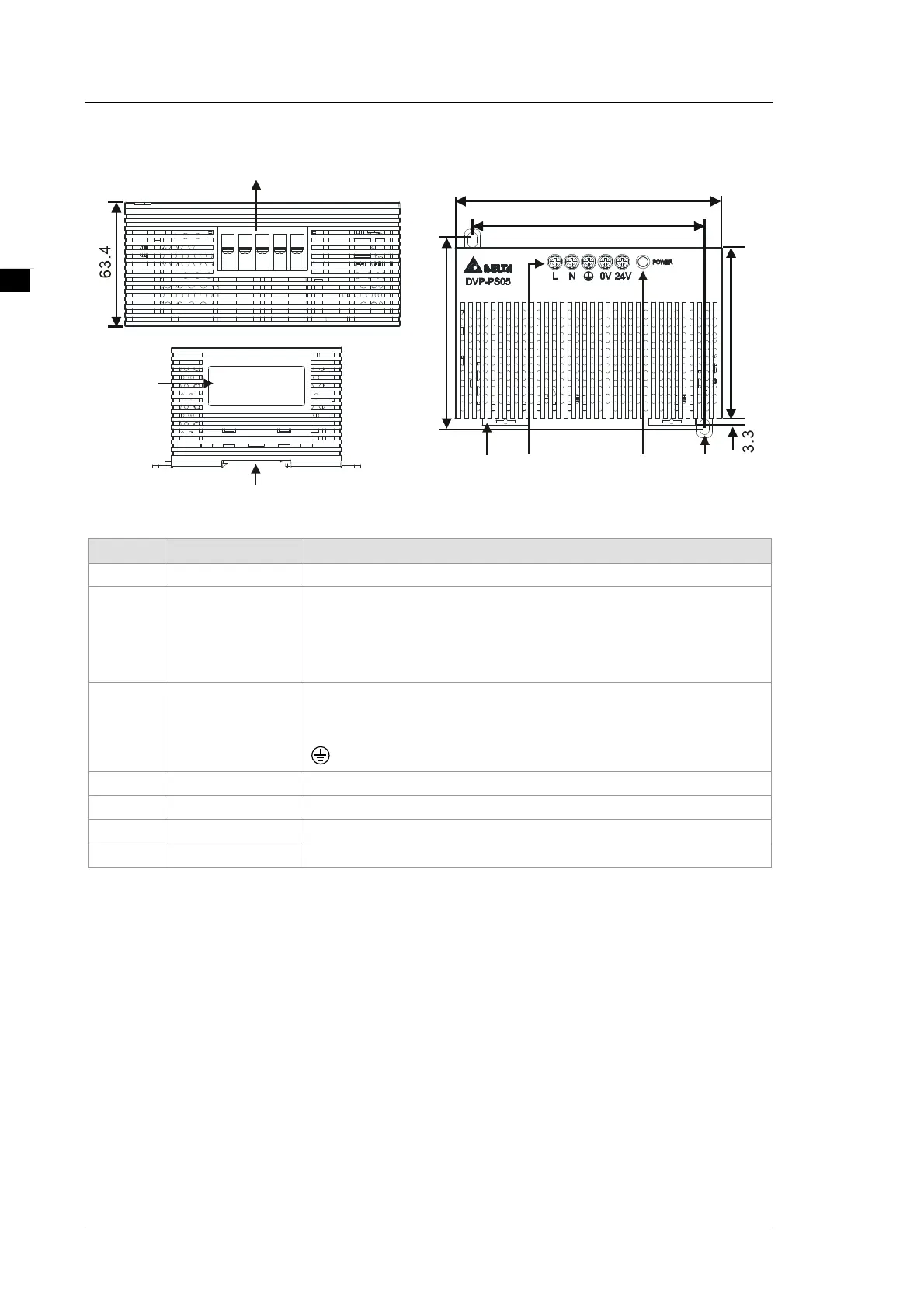

 DVPPS05

3 2 1

90.00

101.00

121.60

140.00

Unit: mm

Number

Name

Description

Power LED

Power status of the power module

Output terminal

configuration

24V: DC power output: 24VDC

0V: DC power output reerence ground

Input terminal

configuration

LG: Line ground

L: AC power input (Line)

N: AC power input (Neutral)

：Earth ground terminal

DIN rail clip

Secures the module onto the DIN rail

DIN rail slot (35 mm)

For the DIN rail

Label

Nameplate

Mounting hole

Used for the module to be securely attached or mounted to a surface

DELTA_IA-PLC_DVP-ES3-EX3-SV3-SX31
Revision History2
Table of Contents5
Chapter 1 Product Introduction15
- 1.1 Overview16
  - 1.1.1 DVP-ES3/EX3 Series CPU Modules and Their Extension Modules17
  - 1.1.2 DVP-SV3/SX3 Series CPU Modules and Their Extension Modules22
- 1.2 Overview29
- 1.3 Characteristics30
Chapter 2 Specifications and System Configuration39
- 2.1 DVP-ES3/EX3 Series40
  - 2.1.1 General Specifications40
  - 2.1.2 CPU Module Specifications41
- 2.2 DVP-SV3/SX3 Series56
  - 2.2.1 General Specifications56
  - 2.2.2 CPU Module Specifications57
- 2.3 Power Supply Module66
  - 2.3.1 General Specifications66
  - 2.3.2 Power Supply Module Profiles67
Chapter 3 Installing Software69
- 3.1 Installing and Uninstalling ISPSoft70
  - 3.1.1 Installing ISPSoft71
  - 3.1.2 Uninstalling ISPSoft77
- 3.2 Installing DIADesigner79
- 3.3 Installing and Uninstalling COMMGR81
  - 3.3.1 Installing COMMGR81
  - 3.3.2 Uninstalling COMMGR84
Chapter 4 Installing Hardware85
- 4.1 DVP-ES3/EX3 Series87
- 4.2 DVP-SV3/SX3 Series112
Chapter 5 CPU and Module Devices141
- 5.1 Introduction on CPU Devices142
- 5.2. CPU Device Functions146
Chapter 6 Writing a Program161
- 6.1 Quick Start162
- 6.2 Procedure for Creating a Project in ISPSoft164
- 6.3 Creating a Project165
- 6.4 Hardware Configuration166
  - 6.4.1 Configuring a Module166
  - 6.4.2 Setting the Parameters167
- 6.5 Creating a Program168
- 6.6 Testing and Debugging a Program186
- 6.7 Setting a Real-time Clock198
Chapter 7 Memory Card201
- 7.1 Overview of Memory Cards202
  - 7.1.1 Appearances of Memory Cards202
  - 7.1.2 Memory Card Specifications202
- 7.2 Before using a Memory Card203
  - 7.2.1 Formatting a Memory Card203
- 7.3 Installing and Removing a Memory Card204
- 7.4 Memory Card Contents207
  - 7.4.1 Initializing a Memory Card207
  - 7.4.2 Folder Structure in a Memory Card207
- 7.5 Introduction to the CARD Utility209
- 7.6 Backing Up a Project211
- 7.7 Restoring a Project217
- 7.8 Restoration Starts Once CPU is supplied with Power221
- 7.9 CPU Error Log222
Chapter 8 Hardware Configuration and Data Exchange Setups223
- 8.1 Hardware Configuration Tool for DVP-ES3 Series Modules – ISPSoft HWCONFIG224
- 8.2 Hardware Configuration Tool for DVP-ES3/EX3/SV3/SX3 Series Modules – DIADesigner229
- 8.3 Setting the Parameters in a DVP-ES3 Series CPU Module – ISPSoft233
  - 8.3.1 Opening the PLC Parameter Setting Window233
  - 8.3.2 Setting the Basic CPU Parameters234
- 8.4 Setting the Parameters in a DVP-ES3/EX3/SV3/SX3 Series CPU Module – DIADesigner253
  - 8.4.1 Opening the Controller Parameter Setting Window253
  - 8.4.2 Setting the Basic CPU Parameters254
- 8.5 Data Exchange272
  - 8.5.1 Device Settings Dialog Box Descriptions - ISPSoft272
    - 8.5.1.1 Data Exchange - COM1 and Data Exchange - COM2273
    - 8.5.1.2 Data Exchange - Ethernet274
  - 8.5.2 Device Settings Dialog Box Descriptions - DIADesigner276
Chapter 9. EtherNet/IP Specification and Operation283
- 9.1 Introduction285
- 9.2 Installation289
  - 9.2.1 EtherNet/IP Device289
  - 9.2.2 Network Cable Installation289
- 9.3 Specifications293
- 9.4 EIP Builder296
- 9.5 Explicit Message318
- 9.6 Troubleshooting319
  - 9.6.1 EtherNet/IP Error Codes and Their Solutions319
- 9.7 Studio 5000 Software Operation322
- 9.8 CIP Object325
- 9.9 Delta EIP Product List353
- 9.10 Network Security354
- 9.11 Operation and Monitor on the Web355
Chapter 10 CANopen Function and Operation369
- 10.1 Introduction to CANopen370
- 10.2 Installation and Network Topology376
- 10.3 The CANopen Protocol383
- 10.4 Sending SDO, NMT and Reading Emergency Message through the Ladder Diagram391
- 10.5 Troubleshooting399
  - 10.5.1 CANopen Network Node State Display399
- 10.6 Application Example402
- 10.7 Object Dictionary411
Chapter 11 EtherCAT Function and Operation417
- 11.1 Introduction418
- 11.2 EtherCAT Port418
- 11.3 Wiring419
- 11.4 IP Settings419
- 11.5 SM/SR419
- 11.6 EtherCAT Master420
- 11.7 Webpage421
- 11.8 Network Security422
Chapter 12 CPU Module Operating Principles423
- 12.1 CPU Module Operations424
- 12.2 CPU Module Operating Modes426
  - 12.2.1 Operating Modes426
  - 12.2.2 Status and Operation under Different Operating Modes426
Chapter 13 Data Tracer and Data Logger429
- 13.1 Data Tracer430
  - 13.1.1 About Data Tracer430
  - 13.1.2 ISPSoft Demostration Example434
- 13.2 Data Logger435
  - 13.2.1 About Data Logger435
  - 13.2.2 Related SM Flags and SR Registors440
Chapter 14 Troubleshooting441
- 14.1 Troubleshooting441
- 14.2 Troubleshooting for CPU Modules447
- 14.3 Troubleshooting for Other Modules457
- 14.4 LED Indicators and Error Codes for CPU Modules457
Appendix A Installing a USB Driver463
- A.1 Disable Driver Signature Enforcement464
  - A.1.1 Disable Driver Signature Enforcement in Windows 8464
  - A.1.2 Disable Driver Signature Enforcement in Windows 10466
- A.2 Installing the USB Driver468
- A.3 Notes on Utilizing USB Communication473
Appendix B Device Addresses475
- B.1 Standard Modbus Device Addresses476
- B.2 Function Codes and Number of Devices Supported for Modbus Protocols477
Appendix C EMC Standards479
- C.1 EMC Standards for an ES3/EX3/SV3/SX3 Series System480
Appendix D Maintenance and Inspection483
- D.1 Cautions484
- D.2 Daily Maintenance485
  - D.2.1 Daily Inspection485
- D.3 Periodic Maintenance486
  - D.3.1 Periodic Inspection486
