Installation and Operation Manual for Solar Power Inverter M70A EU V1.1 EN 2020-02-20
7 Installation
Connecting the communication card
RS485 connection diagram for a DC1 data collector with
multiple inverters
The DC1 data collector from Delta does not have an integrated
RS485 termination resistor. Depending on where the DC1 is
located in the RS485 series, an external RS485 termination
resistor may need to be connected, see Fig. 7.4, p. 69.
RS485-1 RS485-2
35
6 4
120Ω
RS485-1 RS485-2
35
6 4
Termination resistor = ONTermination resistor = ON Termination resistor = OFF
Termination resistor = ONTermination resistor = ON Termination resistor = OFF

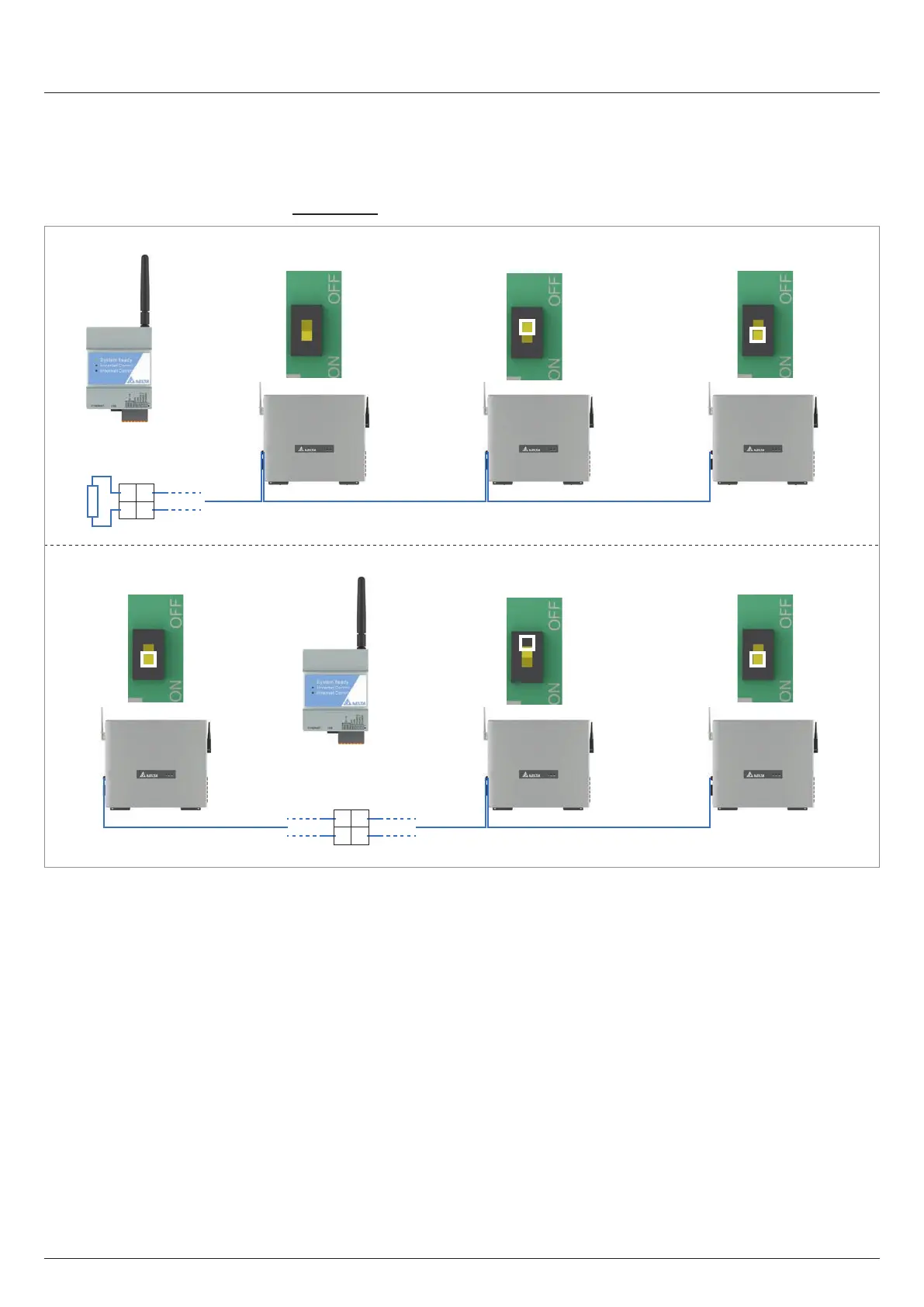

Fig. 7.4: RS485 connection diagram for a DC1 data collector
with multiple inverters
