AVR-3808CI / AVR-3808 / AVC-3808

SCHEMATIC DIAGRAMS (28/37)

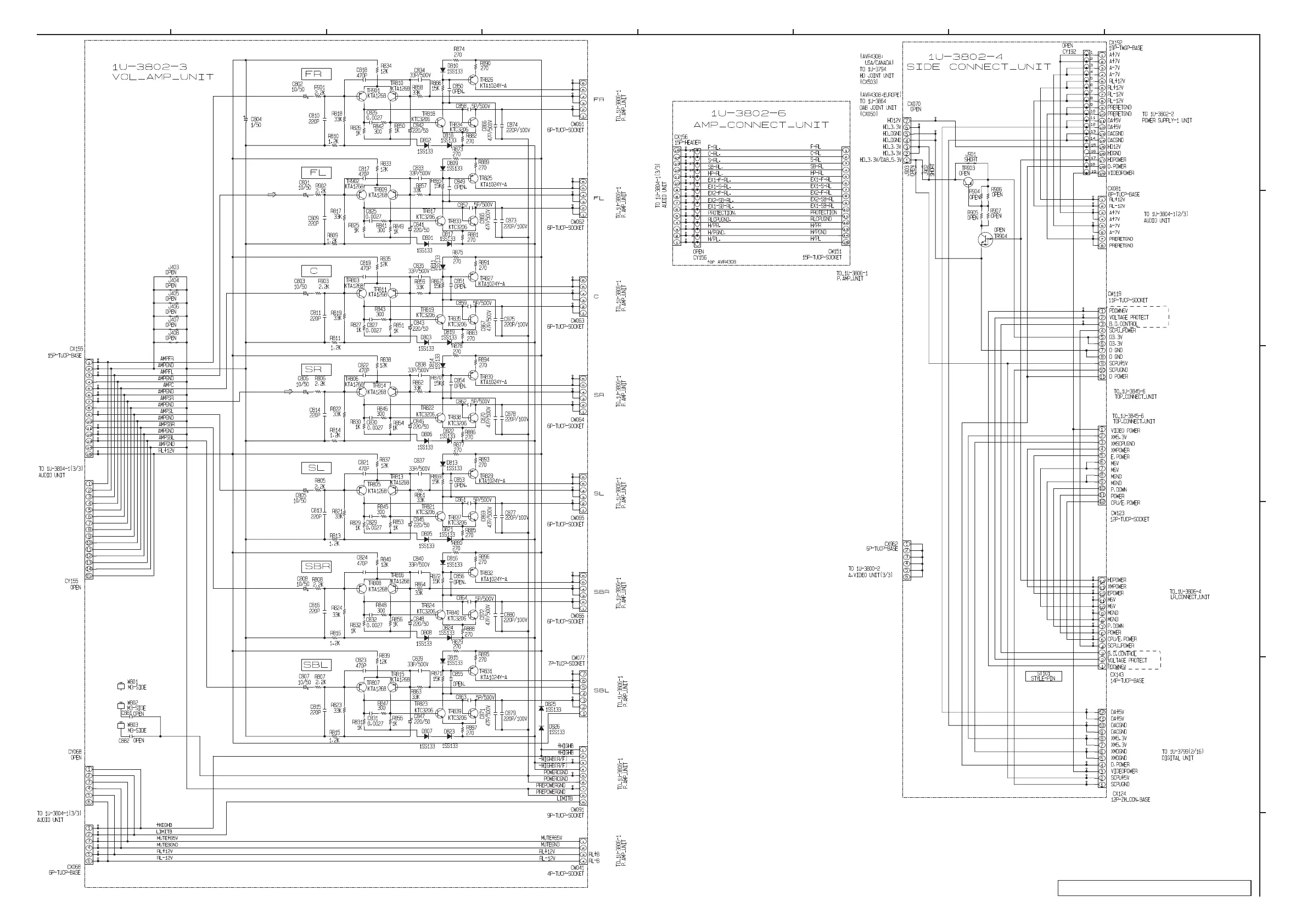

1U-3802 P. SUPPLY UNIT(3/3)

1U-3802-3 VOL AMP UNIT

1U-3802-4 SIDE CONNECT UNIT

1U-3802-6 AMP CONNECT UNIT
