Chapter 2 Getting Started the BHT and System Mode
63

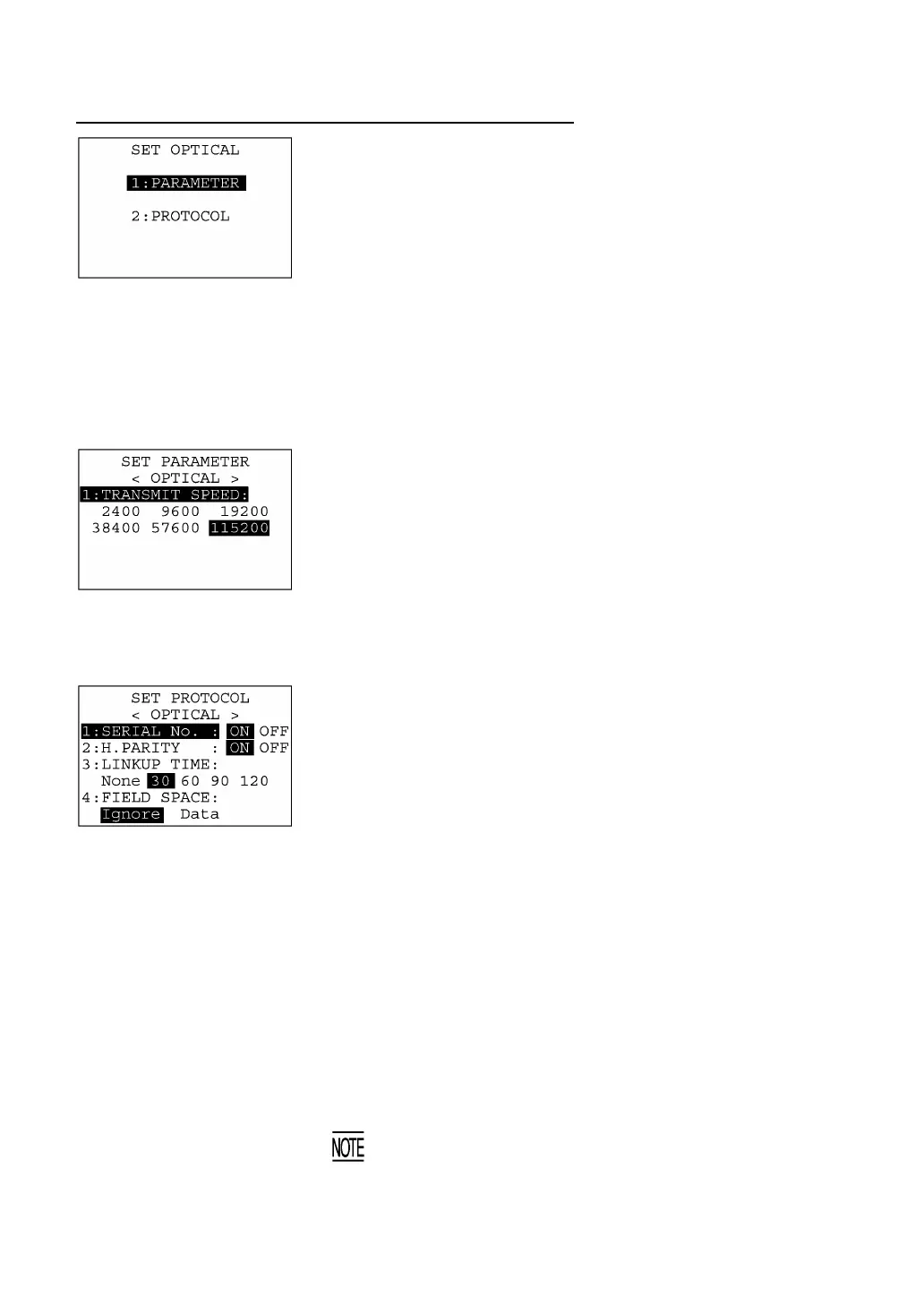

Setting the communications parameters for the IrDA interface
Selecting "1:OPTICAL" on the SET COMMUNICATION menu calls
up the screen shown at left.
[1] PARAMETER: Switches to the communications
parameters setting screen.
[2] PROTOCOL: Switches to the communications protocol
option screen.
Select a desired screen by using the numerical keys or F5 and F6
keys, and then press the ENT key.
To return to the SET COMMUNICATION menu, press the C key.
(1) Communications parameters setting screen
Selecting "1:PARAMETER" on the SET OPTICAL screen calls up the
screen shown at left.
Highlighted is the current setting.
Select the desired transmission speed by using the numerical keys o
F7 and F8 keys, and then press the ENT key.
To return to the SET OPTICAL screen, press the C key.
(2) Communications protocol option screen
Selecting "2: PROTOCOL" on the SET OPTICAL screen calls up the
screen shown at left.
Highlighted is the current setting.
[1] SERIAL No.: Selects whether or not to add serial numbers
to data blocks.
[2] H. PARITY: Selects whether or not to add a horizontal
parity.
[3] LINKUP TIME: Selects the timeout length (in seconds) to be
applied when a link is to be established.
[4] FIELD SPACE: Specifies the treatment of trailing spaces in
fields.
To trim trailing spaces in fields, select Ignore;
to retain them as data, select Data.
Select a desired item by using the numerical keys or F5 and F6 keys.
Then select a desired setting by using the F7 and F8 keys.
To return to the SET OPTICAL screen, press the C key.
If the BHT-Ir protocol has been selected, the serial number and
horizontal parity settings will be ignored.
