68
Defining the function of M1 , M2 , M3 (left-hand trigger switch), or M4 (right-hand trigger switch)
key

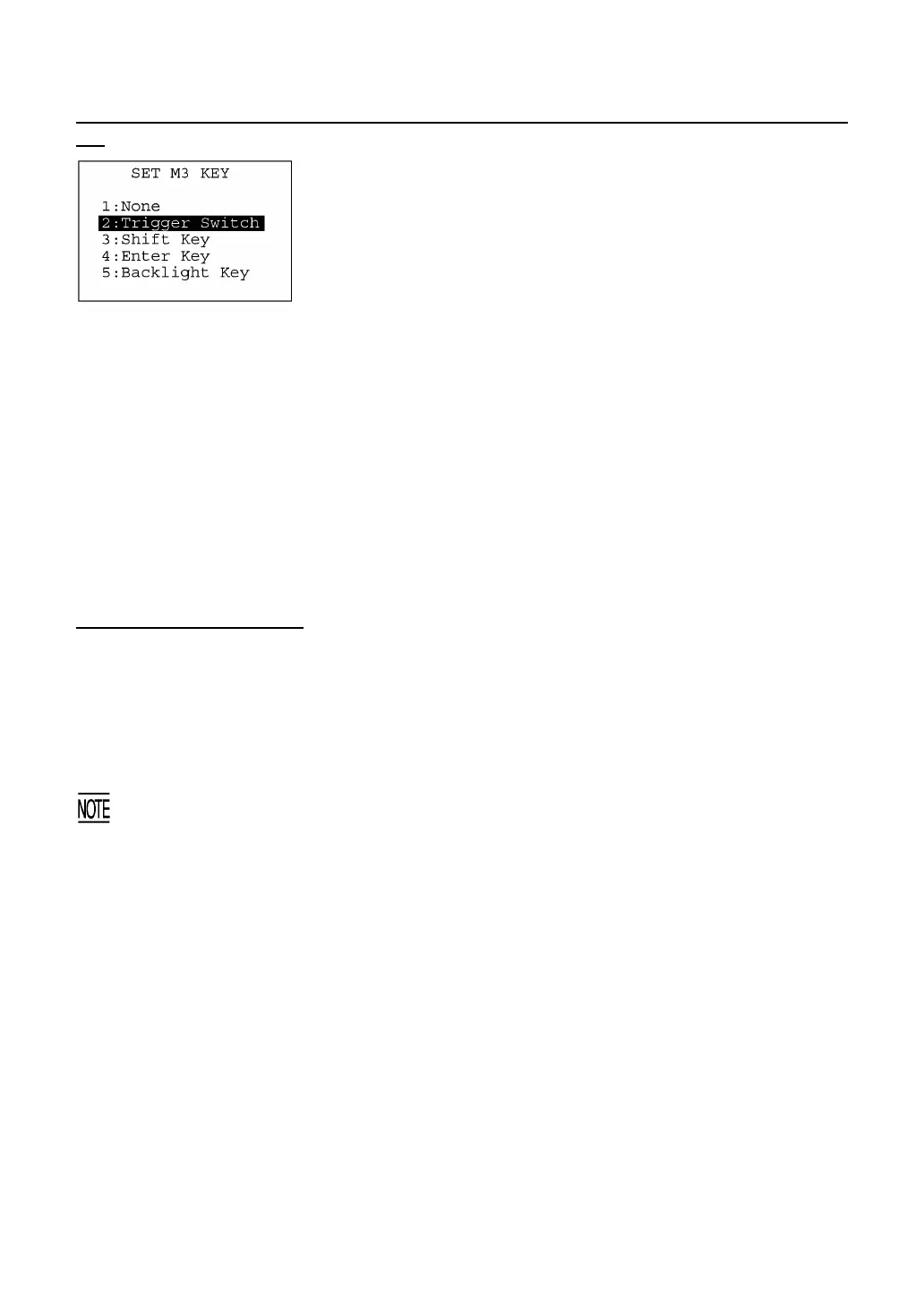

Selecting the "2:M1 KEY," "3:M2 KEY," "4:M3 KEY" or "5:M4 KEY" on
the SET KEY menu calls up the screen as shown at left. (This
example appears when the "4:M3 KEY" is selected.)
Highlighted is the current setting.
The M1 , M2 , M3 or M4 key can function as listed below.
[1] None: The key entry will be ignored.
[2] Trigger Switch: As a trigger switch.
[3] Shift Key: As a SF key.
[4] Enter Key: As an ENT key.
[5] Backlight Key: As a backlight function on/off key.
Select a desired setting by using the numerical keys or F5 and F6
keys, and then press the ENT key. The screen returns to the SE
KEY menu.
Magic keys (M1 through M4)
The M3 and M4 keys are assigned the trigger switch function by default. You can make them function as
a SF key, ENT key, or backlight function on/off key.
If you define the M1 key as a backlight function on/off key, pressing the M1 key activates or deactivates
the backlight function.
In user programs, a string data can be also assigned to these magic keys.
The backlight function on/off key can be assigned only to any one of M1 through M4 keys. The ke
defined more recently will act as a backlight function on/off key and one defined earlier will be
ignored.
That is, if you define the M1 and M2 keys as a backlight function on/off key in this order, the M2 ke
will work as a backlight function on/off key and the M1 key's entry will be ignored.
