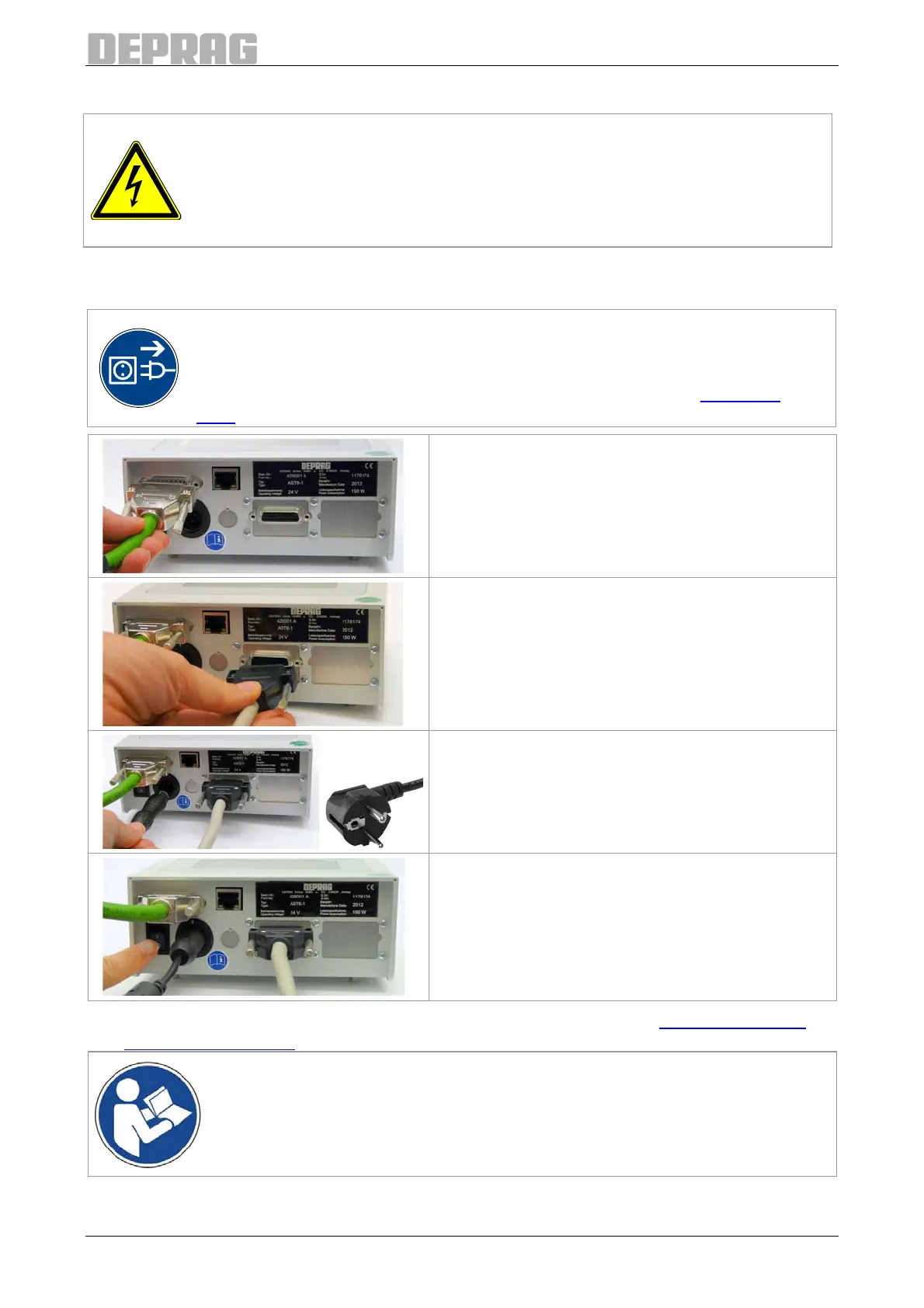

7.2 Assembly Instruction
WARNING
Risk of fatal injury due to electrocution!
Put off the AST6 sequence controller at the main switch and remove the
mains plug before connecting the screwdriver!
Commissioning should be done only by competent personnel.
For the initial start-up proceed as indicated in the brief instructions 013738 "Quick-Start
Instructions for the Operation of the Sequence Controller AST6 with 320E... screwdriver"
CAUTION
Injuries from electricity or damages on the device
Prior to connecting to the power, compare the layout design of the sequence
controller AST6 with the in-house power supply (also refer to Technical
Data)
Connect the screwdriver (to the GX4 interface)
and screw on the retaining screw tightly.
Connect the plug of Input/output-interface (to
the GX2 interface) and screw on the retaining
screw tightly.
Connect the sequence controller AST6 to the
power supply (GX1 interface).
Watch for the white marking.
Plug the power cable into the power socket.
Switch on the sequence controller AST6 using
the main switch.
More information about the interface assignment can be found under Connection Panel
and Interface Description.
Read the Operating Instruction /Safety Guidelines.
Please read and heed the enclosed operating instructions for the
individual actuators and sensors.
