60
• Angle monitoring: yes / no
Monitoring of the angle with a window angle if the angle monitoring is switched on,
the following parameters are added:
◦ Swelling moment
Input of the torque from when the angle monitoring should be started (compare
point 1 in Figure 41:).
◦ Angle upper limit
Upper limit of the end angle
◦ Angle lower limit
Lower limit of the end angle
10.1.4.3 Screwing Applications depending on Friction
The screwing sample friction dependent screwing connects the screwing sample friction
measurement and the screwing to differential moment.
Sequence of the screwing sample:

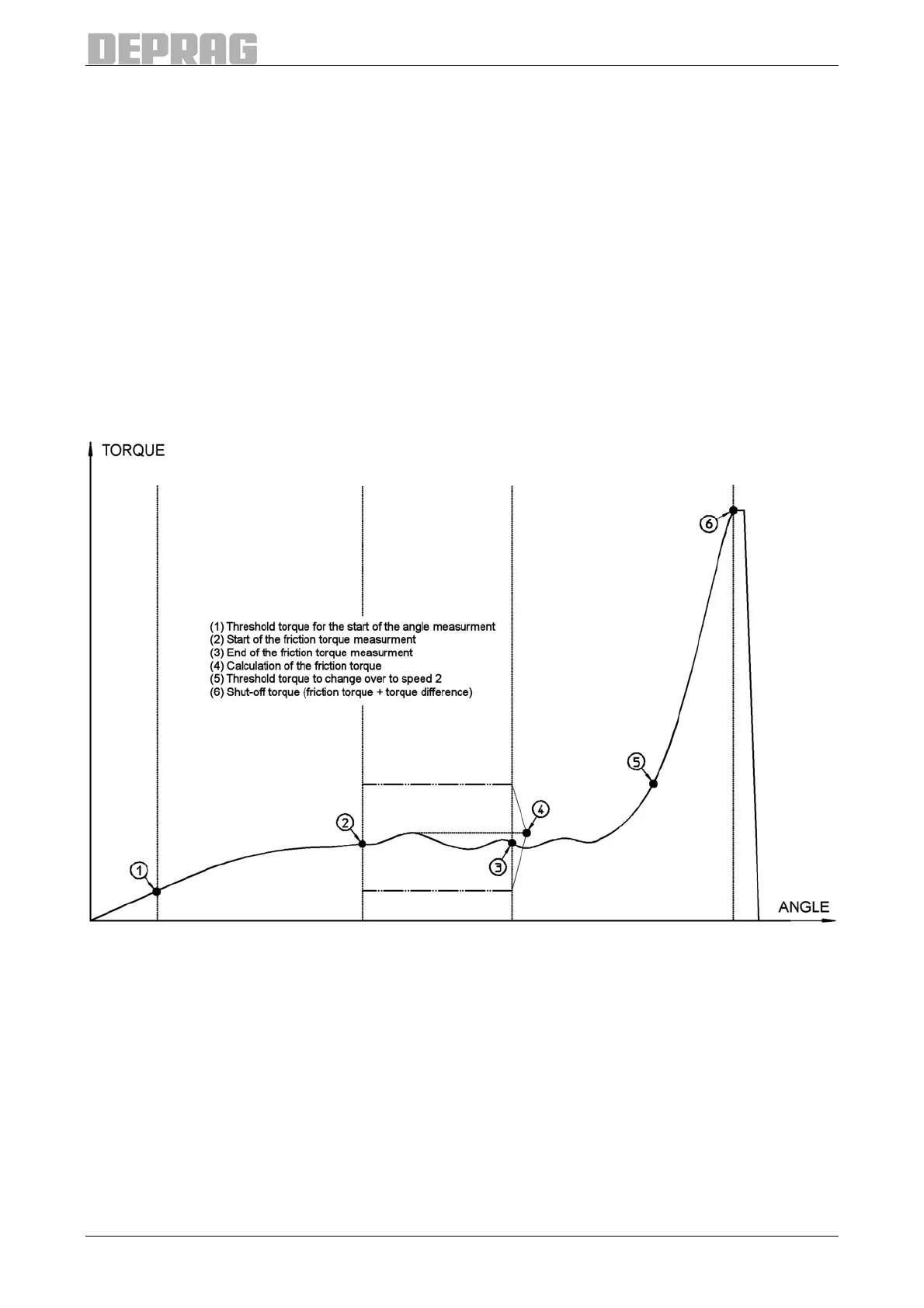

Figure 42: Screwing Applications depending on Friction
Switching off criteria:
The screwing process is ended once the
• cut-out torque is reached
• a monitoring criteria is reached
• the maximum screwing time (monitoring time) is expired
