Deprag AST6 User Manual

37
8.3.4.2.2 Curve Representation

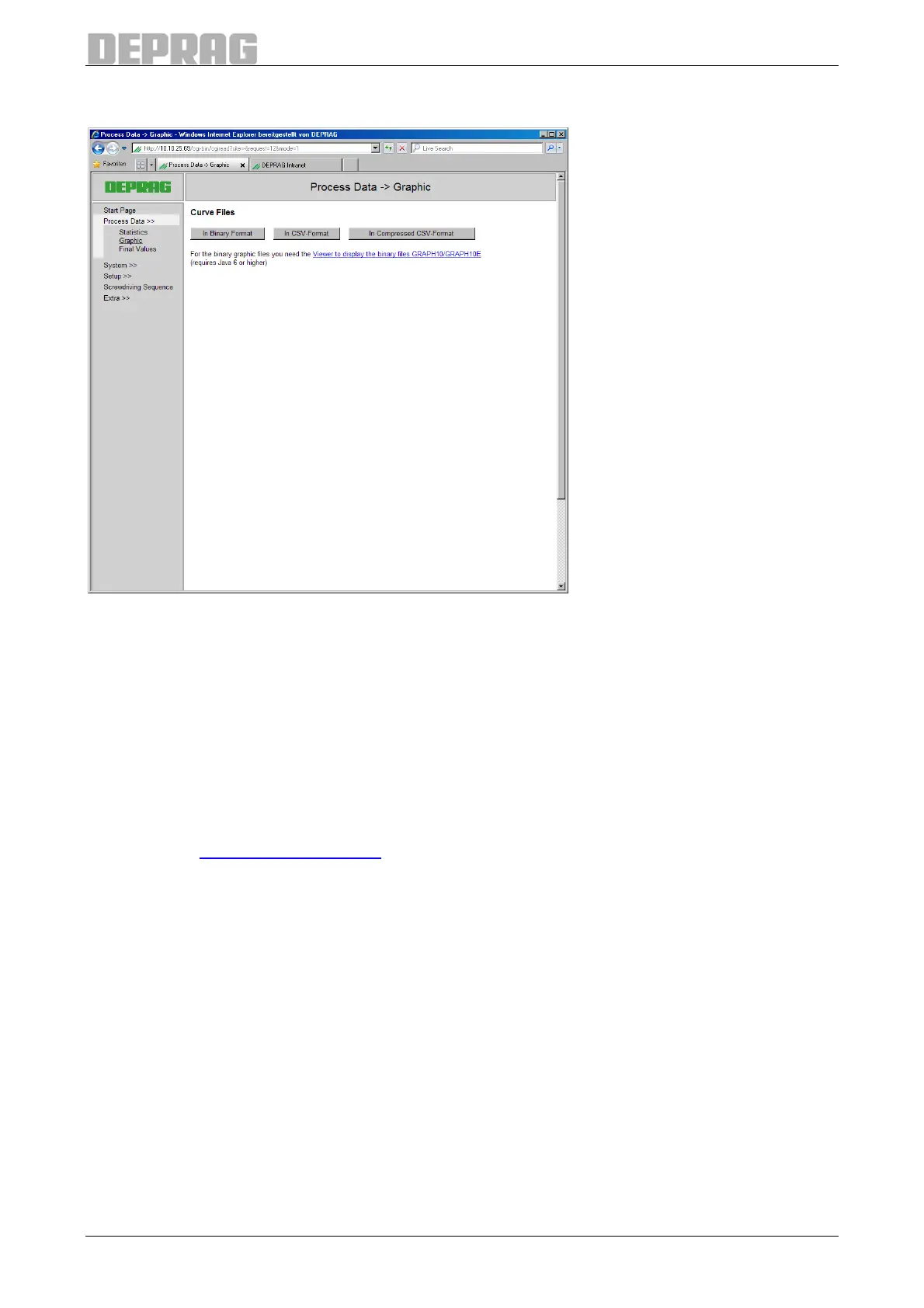

Figure 22: Downloading Curve Data
This page provides the possibility to load the data of the last screwing application as a
data from the sequence controller AST6. In principle, all screwing applications are
recorded. The record will be available until the sequence controller AST6 is switched off or
a new screw connection is established. It is furthermore possible to download, free of
charge, the viewing program GRAPH10(E) for the binary curve data.
If you click the blue note on the "Viewer for the display of binary data" then you will first
receive a detailed description of the installation of the GRAPH10 viewer. At the end of the
description you will find information to load the program onto your PC.
(Also refer to Curve Representation
)
