30
Click on the button to output a new graphic display.

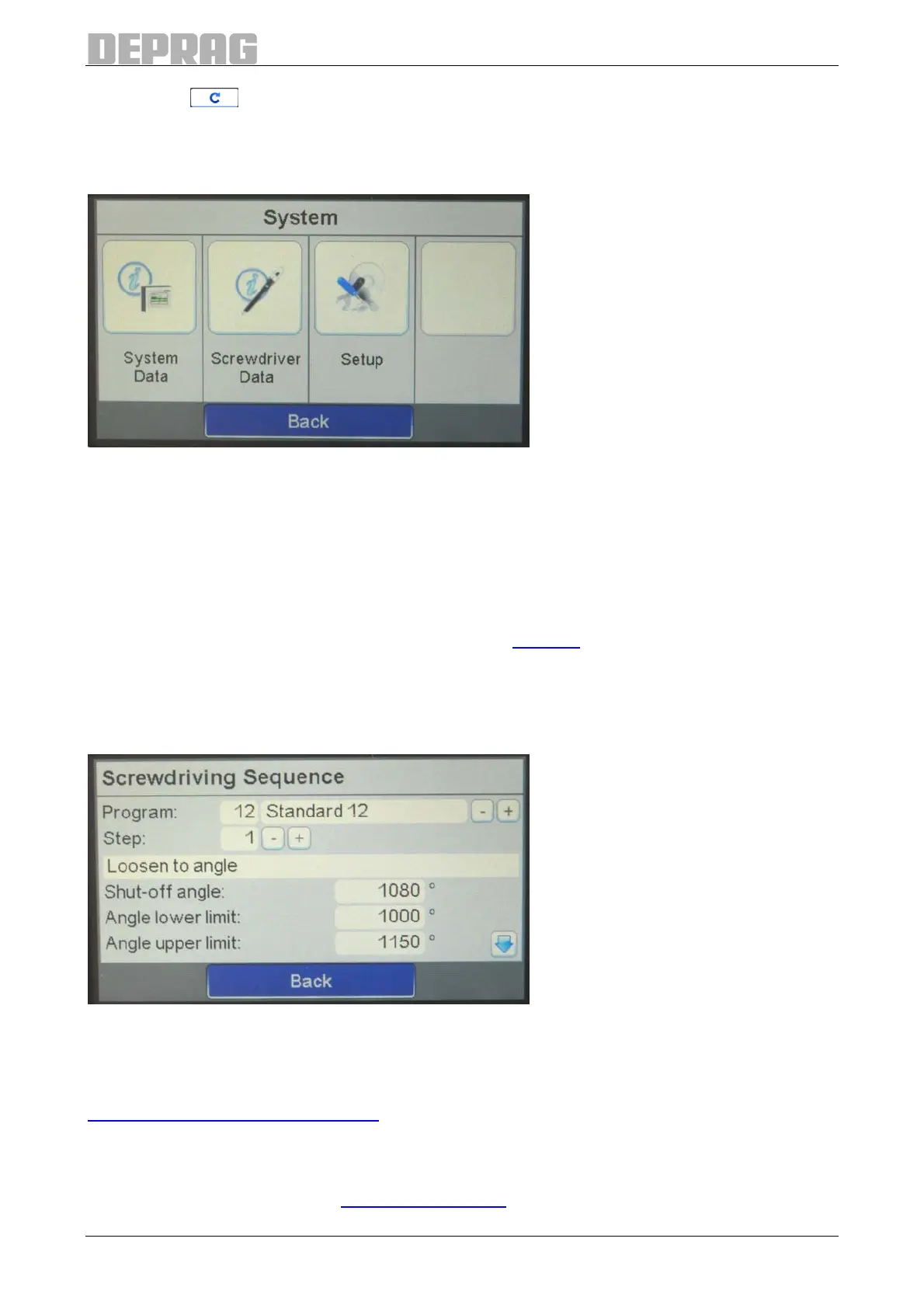

8.2.3.2 System Menu
Figure 15: Menu System
The system menu contains all information about the complete system as well as system
settings.
In the system data menu all information for the sequence controller AST6 is displayed, in
the tool data menu all information for the screwdriver are displayed.
If the correct password is entered then the default settings for the sequence controller
AST6 can be set in the settings menu (also refer to Settings).
If you did not enter a password then only the set values are displayed. Changes are not
possible.
8.2.3.3 Screwing Sequence Menu
Figure 16: Screwing Sequence
If the correct password is entered then the prepared programs can be adjusted in the
screwing sequence menu via the web interface (also refer to
Screwing Samples and Commands).
Parameter changes can only be performed at the sequence controller AST6. If you would
like to insert further steps or options such a angle monitoring, then you must do this via the
angle monitoring (also refer to Screwing Sequence
).
