8.2.3.1 Process Data Menu

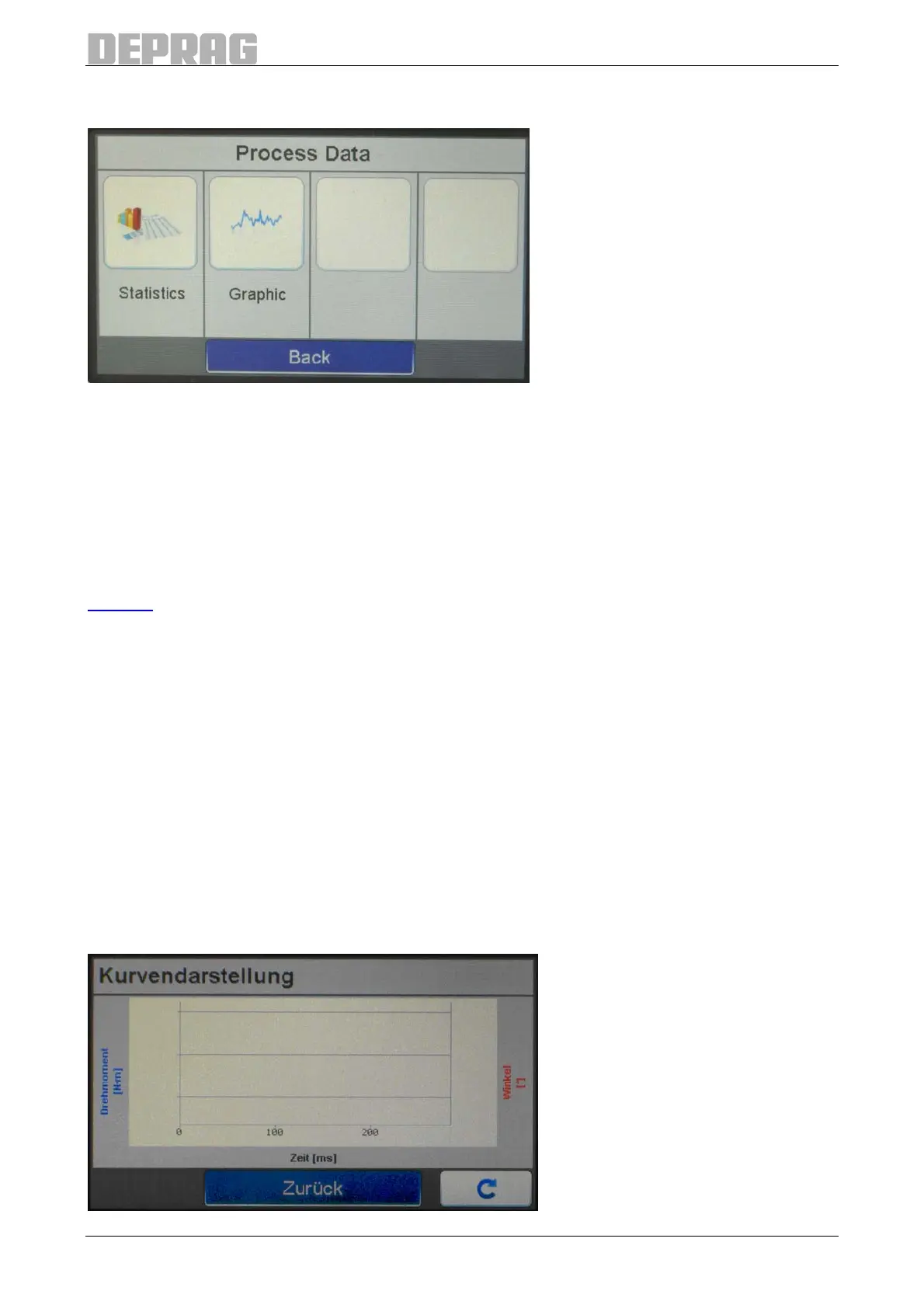

Figure 13: Process Data Menu
The process data menu provides the possibility to receive information about the screwing
processes.
8.2.3.1.1 Statistics Menu
Statistical information pertaining to various programs can be displayed in the "Statistics"
menu option. The prerequisite for this purpose is that the 'Statistics' command is entered in
the screwdriver program after the appropriate stage of the screw fixing operation (see also
Statistic).
First select the program number for which you would like to display the statistics. To do
this, enter the program number directly or use the + and - keys.
Click on the "Torque" or "Angle" buttons in order to display the statistics for the torque or
the angle.
Click on the button with the trash can icon to delete the statistics of the current program or
that of all programs.
Click on the "CP Limits" button to change the lower and upper limits of C
p
/C
pk
.
8.2.3.1.2 Curve Display Menu
Graphical information pertaining to the last screwdriver operation can be displayed in the
"Curve display" menu option.
Figure 14: Curve display
