8.3.4.2.3 Screwdriver Results

The end values of the screwing of the last seven days can be downloaded as CSV data

(refer to Final Values) .

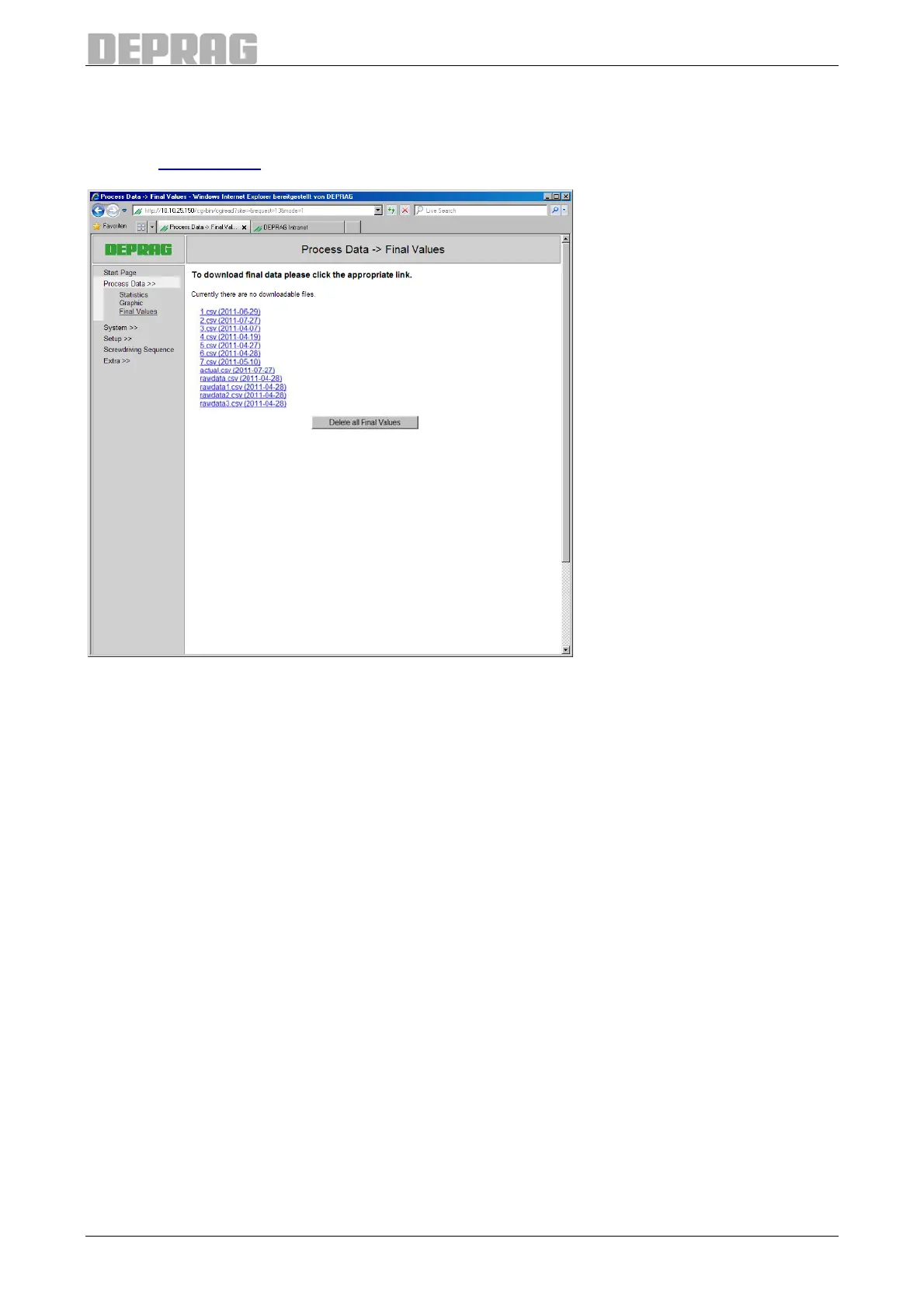

Figure 23: Screwdriver Results

The final values cannot be deleted if you have not entered a valid password.
