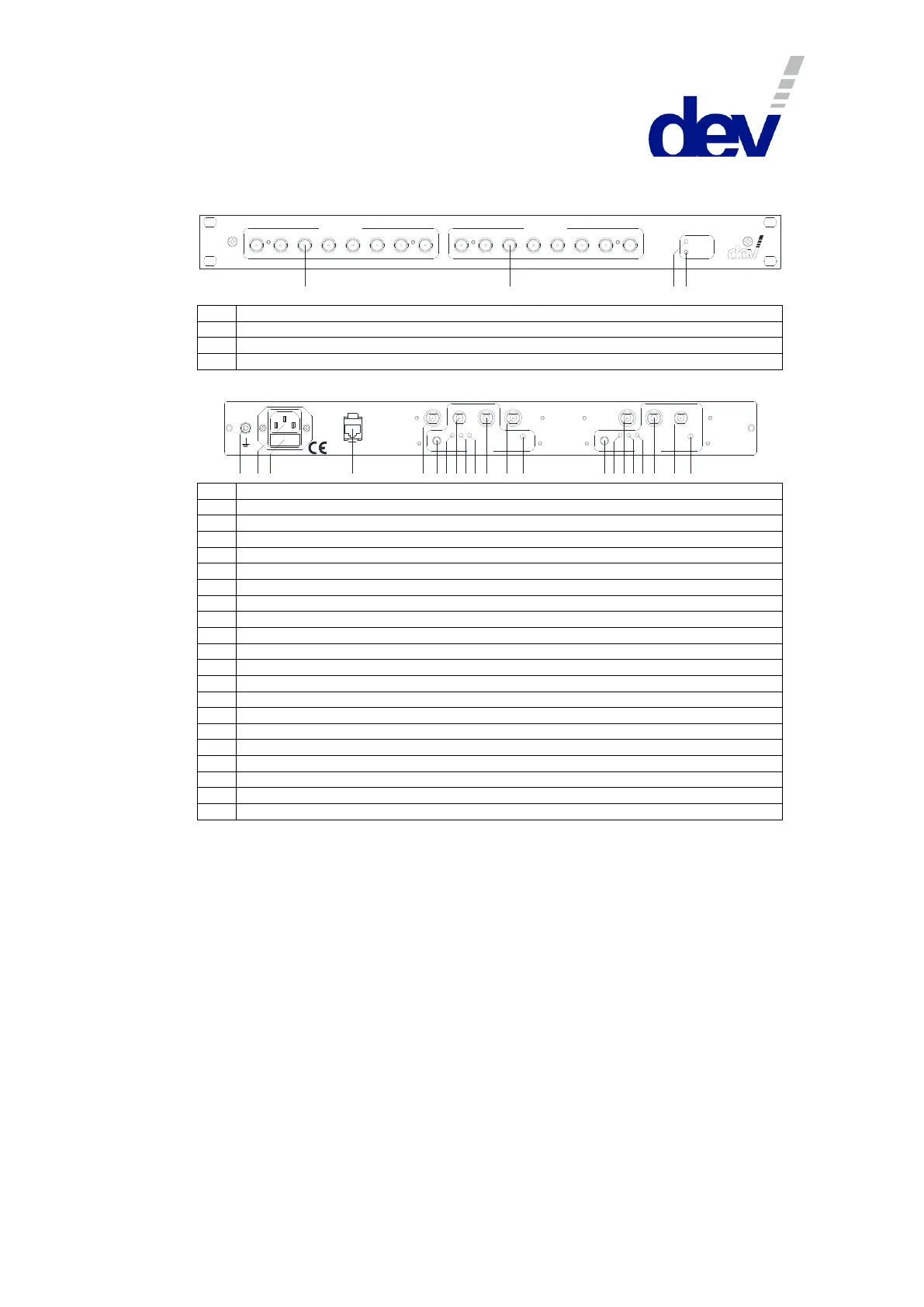

3.2 Product Drawings
Front View:
1 2
4
2 x 1:8 / 1 x 1 :16 Distributio n A mp lifie r 700...23 00 M Hz
DEV 2 194
Outputs A mp lifie r 2
1 2
3
4
5
6
7
8
1 2
3
4
5
6
7
8
Alarm
Outputs A mp lifie r 1
Oper atio n
3
1
"Outputs Amplifier 1" "1"…"8": output ports Amplifier 1; 75 Ohm, BNC (f) connectors
2
"Outputs Amplifier 2" "1"…"8": output ports Amplifier 2; 75 Ohm, BNC (f) connectors
3
"Operation" LED
4
"Alarm" LED
Rear View:
1
Fus e 2 A T
W AR NING :
D isco nn ect po wer
be for e o pen ing !
50/60 Hz
40 VA
100 ...2 40 V
In 1 :16
Ethern et
Amplifier 1
Op.
RF
Bias
Bias
O I
Op.
RF
Bias
Bias
O I
Mon In 1:8 Out 2 Out 1 In 1:8 Mon
Mon Mon
Amplifier 2
2 3
4 5
6
7
1310 11 12 1415 21161718 19 208 9
1
Grounding bolt
2
AC power inlet
3
AC power fuse
4
"Ethernet" connector; RJ-45
5
"In 1:16": Input port internal 1:2 splitter; 75 Ohm, F (f))
6
"Mon": Monitor port for input signal of Amplifier 1; 50 Ohm, SMA (f)
7
"Op.": Operation status LED Amplifier 1
8
"Mon": Monitor port for output signal of Amplifier 1; 75 Ohm, F (f)
9
"RF": RF level status LED Amplifier 1
10
"Bias": LNB power supply status LED Amplifier 1
11
"In 1:8": Input port Amplifier 1; 75 Ohm, F (f)
12
"Out 2": Second output port internal 1:2 splitter; 75 Ohm, F (f)
13
"Bias": LNB power supply push button Amplifier 1
14
"Mon": Monitor port for input signal of Amplifier 2; 50 Ohm, SMA (f)
15
"Op.": Operation status LED Amplifier 2
16
"Out 1": First output port internal 1:2 splitter; 75 Ohm, F (f)
17
"RF": RF level status LED Amplifier 2
18
"Bias": LNB power supply status LED Amplifier 2
19
"In 1:8": Input port Amplifier 2; 75 Ohm, F (f)
20
"Mon": Monitor port for output signal of Amplifier 2; 75 Ohm, F (f)
21
"Bias": LNB power supply push button Amplifier 2
