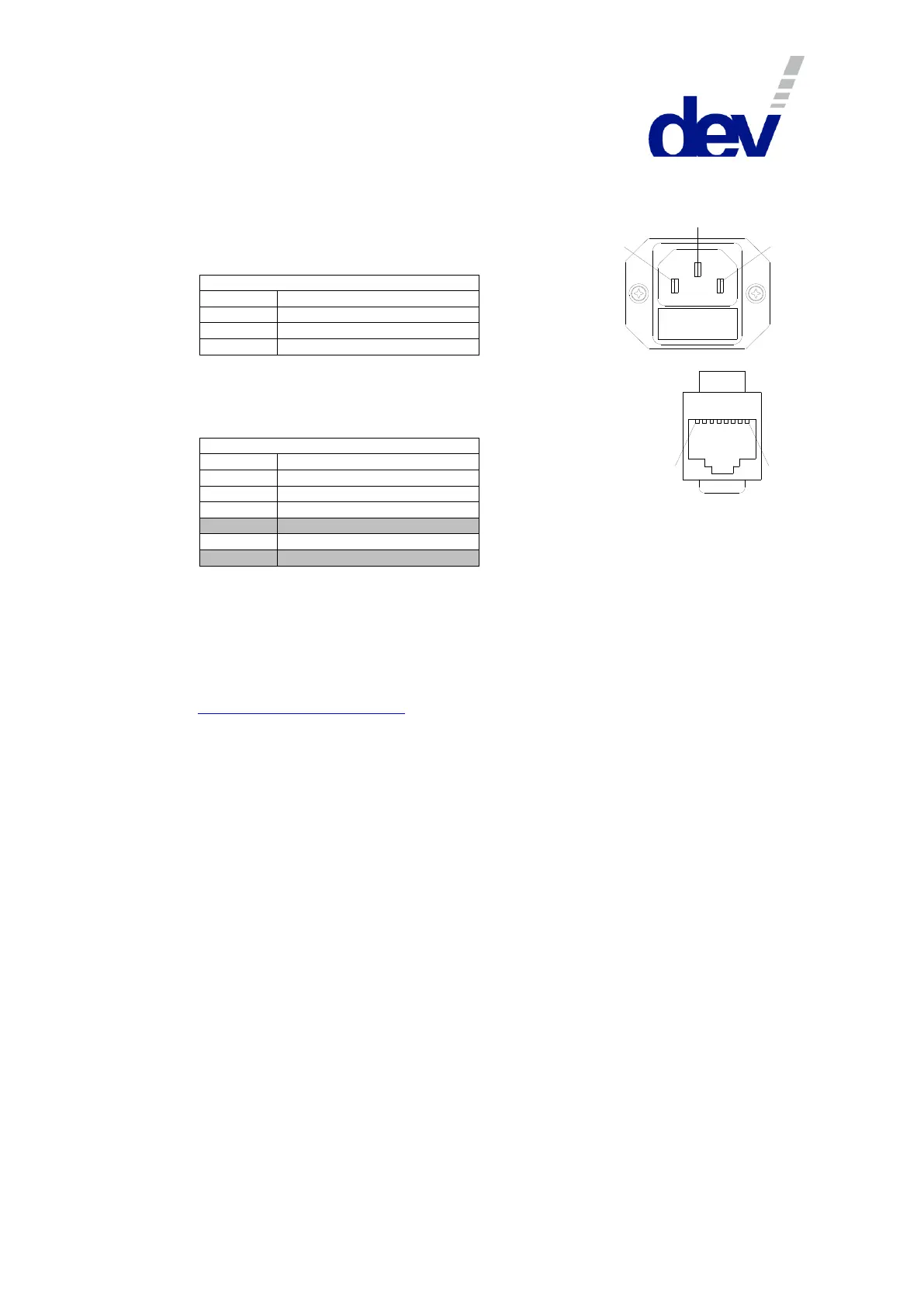

7 Connectors
AC Power Plug
Connector: IEC rubber connector (male) IEC 60320 C14
Connector screws: none
AC Power Plug
Pin
Functionality
Pin 1
L (Live/Phase)
Pin 2
PE (Protective Earth)
Pin 3
N (Neutral)
Ethernet Connector
Connector: RJ-45
Connector assembly: none
Ethernet Connector
Pin
Functionality
Pin 1
Tx+
Pin 2
Tx-
Pin 3
Rx+
Pins 4…5
do not use
Pin 6
Rx-
Pins 7…8
do not use
• "do not use" means that normally the pin should be left open.
8 Technical Data
The technical data is stated in the DEV 2194 spec sheet; please refer to
www.dev-systemtechnik.com.
