User Manual DEV 2194
42 Copyright DEV Systemtechnik GmbH 2013-2017

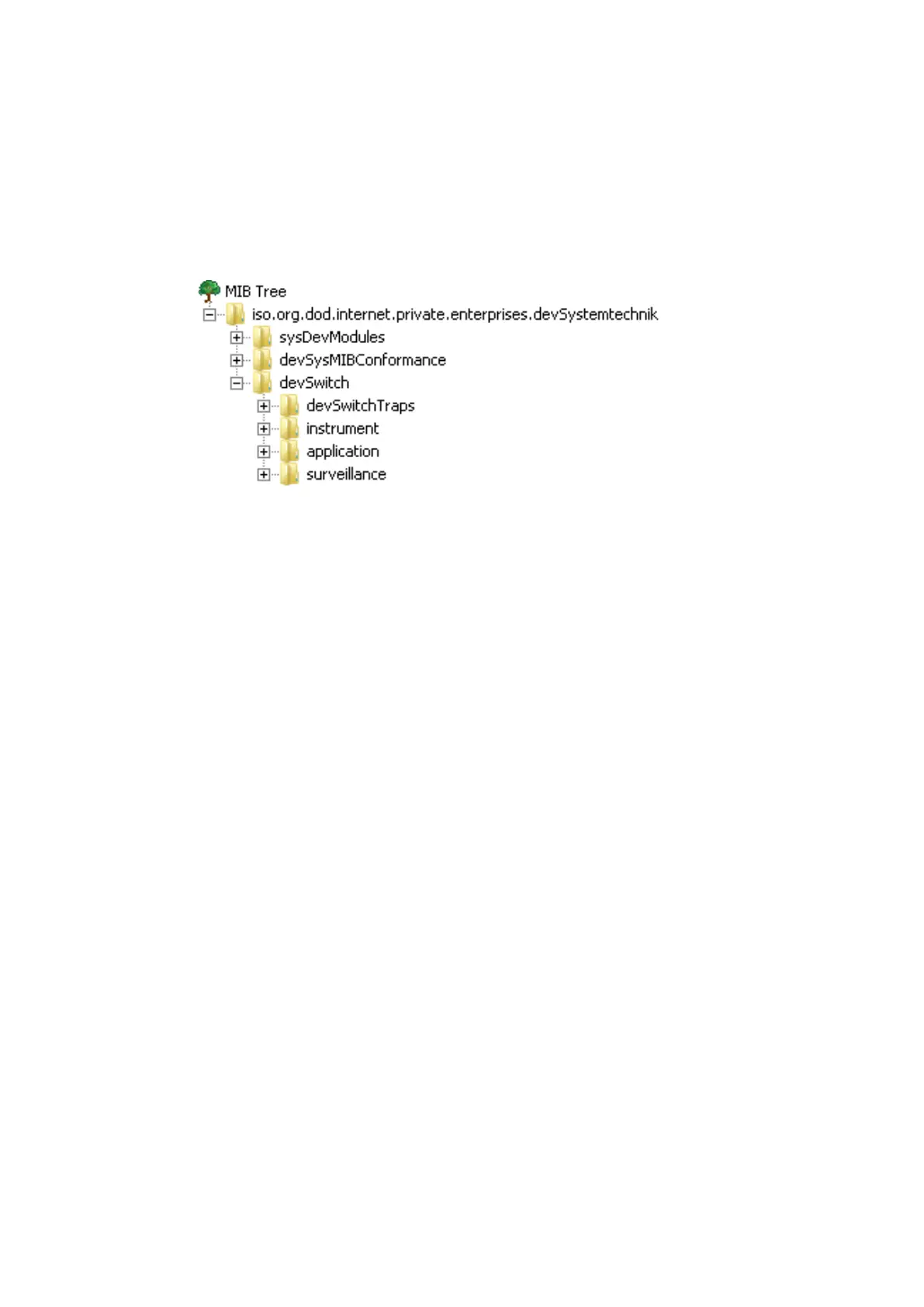

5.5.3 The Switch MIB Tree
The MIB is stored on the controller of the device and can be downloaded via the
SNMP setup of the Web Interface (please refer to chapter 5.4.7.2.2) or directly with
a web browser via the link:
http://<IP-of-the-device>/dev-switch.mib
As shown above, the section .devSwitch is divided in four branches:
• .devSwitchTraps (chapter 5.5.4.1),
• .instrument (chapter 5.5.4.2),
• .application (chapter 5.5.4.3), and
• .surveillance (chapter 5.5.4.4).
In the corresponding sub-chapter, the content of each branch is shown expanded
and each object within a branch is described.
