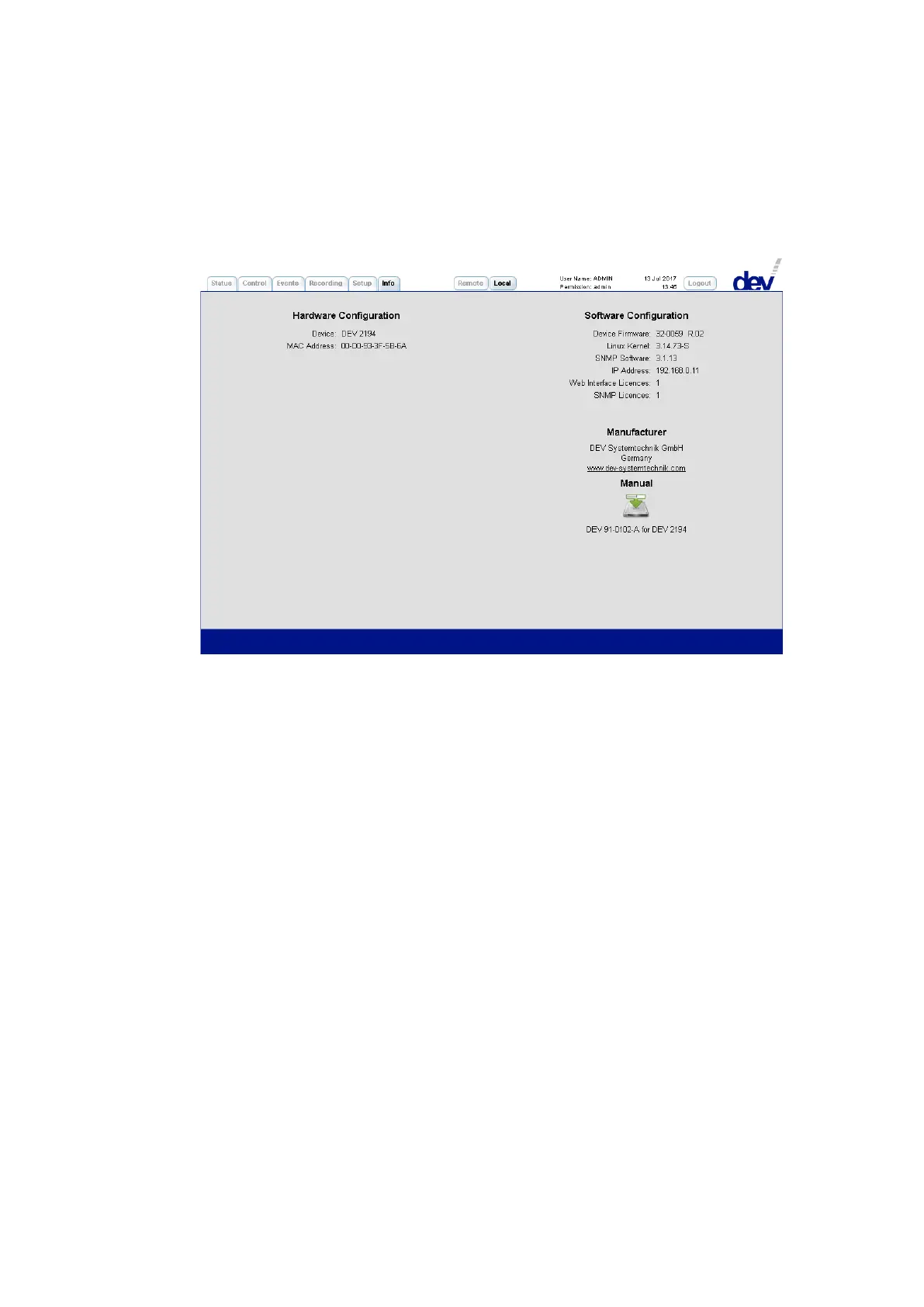

5.4.8 Info Tab
The Info Tab provides information regarding configuration and setup of the device.
This information is mainly intended for support purposes; part of this information
may be requested when contacting DEV Systemtechnik.
In the left column, the "Hardware Configuration" is described:
Device, here: DEV 2194
MAC Address, here: 00-D0-93-3F-5B-6A
In the right column on the top, the "Software Configuration" is described:
Device Firmware version, here: 32-0059 R.02
Linux Kernel version, here: 3.14.73-S
SNMP Software version, here: 3.1.13
the current IP Address of the device, here: 192.168.0.11
Web Interface Licenses, here: 1
SNMP Licenses, here: 1
An icon is located on the bottom right for downloading the electronic version of the
user manual.
Finally, in the right column in the middle the manufacturer's name, country, and
hyperlink are listed.
