DEVO-7 Page 73 of 170

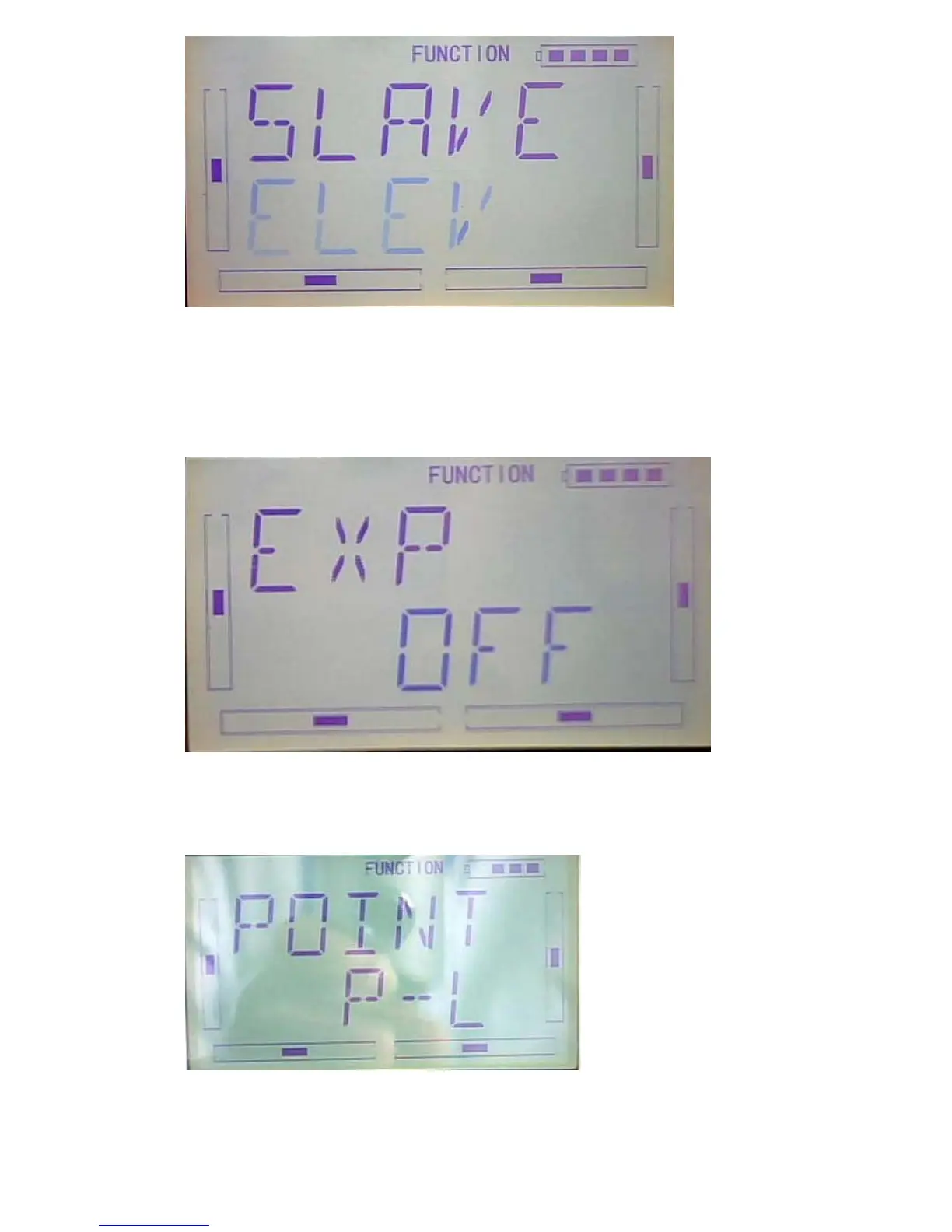

3) Exponential curve: after setting the slave channel, press DN button to get to the
EXP setting. When getting to below interface, press R or L to choose from EXP “ ON
“ or “ OFF”. The pitch curve will be smoothly changed if choosing On. Otherwise
choosing Off.
4) Point setting: Press DN, the 7 piont options will be shown. Press R or L to select
any point from L, 1, 2, M, 4, 5 and H7.
