Dexter Laundry A Series Service Procedures And Parts Data

Parts Data
98

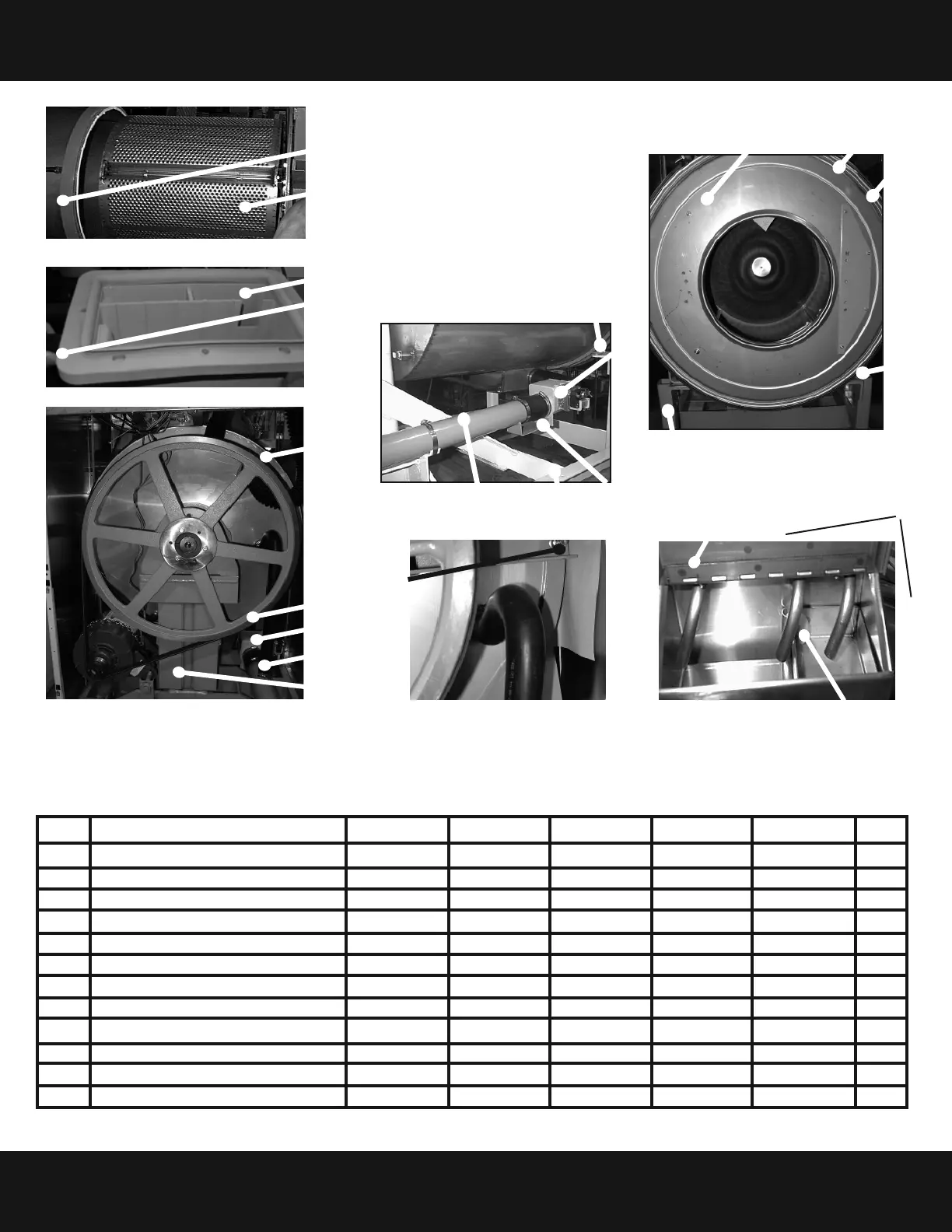

Chassis and Drain Part # by Model
Key Description T-300 T-400 T-600 T-900 T-1200 QTY
1 Base Assy,Frame 9945-093-002 9945-087-002 9945-097-002 9945-105-002 9945-125-002 1
2 Outer Tub Assy 9930-135-001 9930-145-001 9930-146-001 9930-138-001 9930-144-001 1
-- Tub & Cylinder Assy 9869-006-001
9869-016-001 9869-017-001 9869-018-001 1
4 Ring Assy, Tub Mtg-Front 9950-045-002 9950-050-002
9950-053-002 9950-053-002 1
5 Bolt, Top Front Ring 5/8” x 3” 9545-017-006 1
5 Nut WCVD 5/8” 8640-425-001 1
5 Lockwasher 8641-582-018 1
7 Ring Assy.Clamp Tub Mtg.- Rear 9950-046-002 9950-041-004 9950-056-003
9950-055-001 9950-055-001 1
8 Bolt, 1/2” x 1 1/4 Rings to Base 9545-017-009 4
-- Washer 8641-581-018 8641-581-018 1
-- Screw Tube (
Bracket to Base 1/4Bx3/4 ) 9545-030-002 9545-030-002 9545-030-002 2
11 Tube Assy, Drain 9915-116-004 9915-119-002 9915-118-002
9915-124-002 9915-126-002 1
7
2
13
15
16
&
17
2
9
19
11
1
13
25
25
22
23
21
2
1
1
11
10
4
9
