Parts Data

97

Key Description T-300 T-400 T-600 T-900 T-1200 QTY

-- Wiring Schematic (208-240 v) 9506-013-001 9506-016-001 9506-018-001 9506-050-001 9506-050-001

-- Wiring Diagram (208-240 v) 9506-014-001 9506-015-001 9506-017-001 9506-019-001 9506-049-001

-- Instruct. Control Trans. (208-240 v) 8507-258-001 8507-258-001 8507-258-001 8507-258-001 8507-258-001

-- Label Dispenser Instructions 9506-650-001 8502-650-001 8502-650-001 8502-650-001 8502-650-001

-- Transient Voltage Surge 8507-330-001 8507-330-001 8507-330-001 8507-330-001 8507-330-001

Suppressor Infomational

-- Instructions Spin Direction 8507-273-001 8507-274-001 8507-274-001 8507-275-001 8507-275-001

-- Instructions Installer 8502-653-001 8502-653-001 8502-653-001 8502-653-001

-- Label Electrical Instructions 8502-649-001 8502-649-001 8502-649-001 8502-649-001

-- Label Connection Injector 8502-647-001 8502-647-002 8502-647-002 6502-647-002

-- Label Injector 8502-666-001 8502-666-001 8502-666-001 8502-666-001

-- Label High Voltage Warning 8502-614-004 8502-614-004 8502-614-004 8502-614-004 8502-614-004

-- Label Fusing & Installation 8502-619-003 8502-619-003 8502-619-003 8502-619-003 8502-619-003

-- Label Quality 8511-001-002 8511-001-002 8511-001-002 8511-001-002 8511-001-002

1 Label Warning Risk of Injury 8502-722-002 8502-722-002 8502-722-002 8502-722-002 8502-722-002

2 Label Warning Door Opening 8502-723-001 8502-723-001 8502-723-001 8502-723-001 8502-723-001

-- Booklet Owners (208-240 v) 8514-055-001 8514-057-001 8514-059-001 8514-061-001 8514-081-001

-- Label Nameplate RH 8502-726-001

-- Label Instructions Chemical Injection 8507-268-001 8507-268-001 8507-268-001 8507-268-001 8507-268-001

-- Label Instruction Installation Start-up 8507-351-001 8507-351-001 8507-351-001 8507-351-001 8507-351-001

-- Label Warning Injectors 8502-639-001 8502-631-001 8502-638-001

-- Wiring Schematic (120 v) 9506-012-001 8502-639-001

-- Wiring Diagram (120 v) 9506-011-001

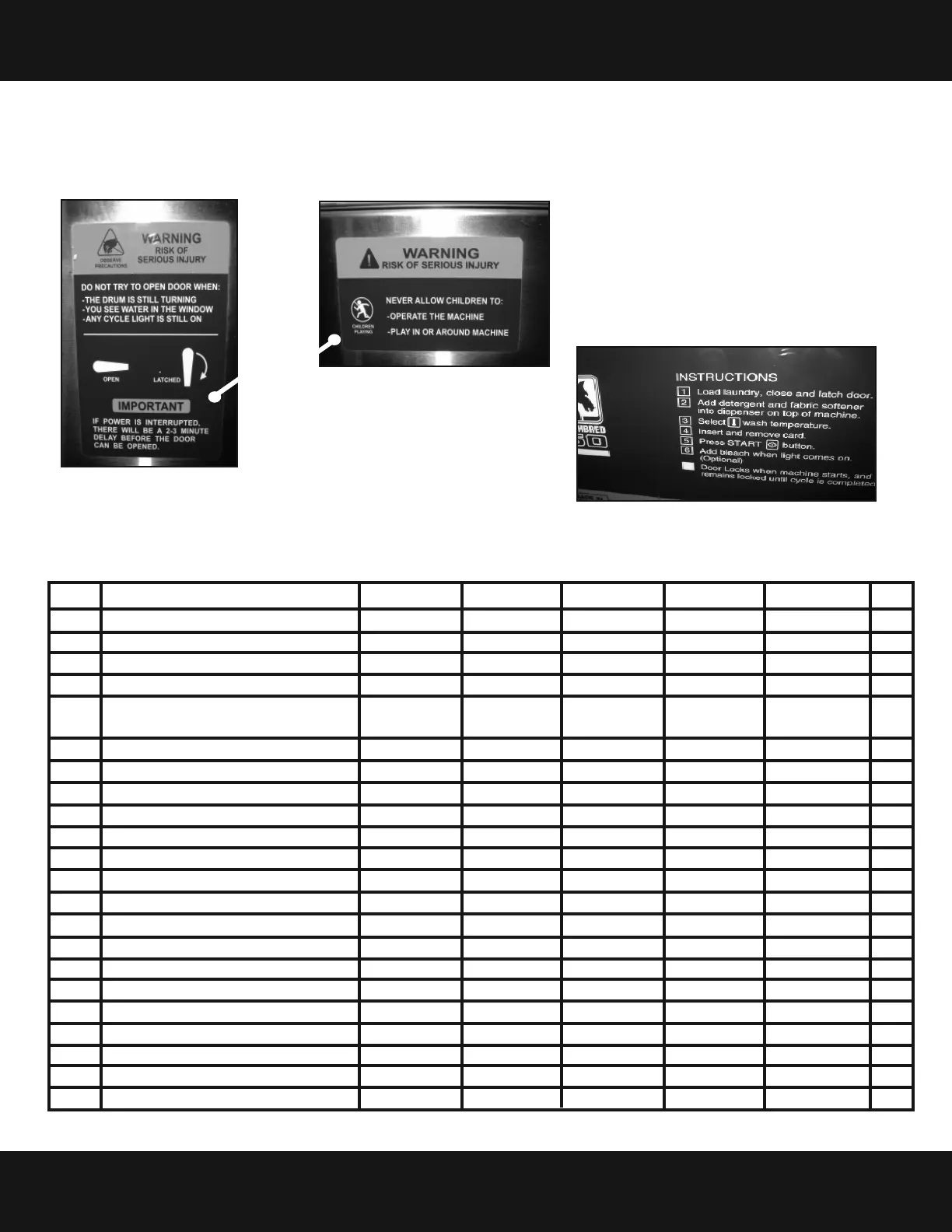

Door Label

Risk of Injury Label

Instructions Label On Name Plate

Labels and Diagrams All WCVD Models

2

1

Dexter Laundry A Series Service Procedures And Parts Data
