Machine Service Procedures
55
Step 1: Remove the top panel as described previously.
Step 2: Remove lower service panel as described previously.
Step 3: Remove front panel as described previously.
Step 4: Remove masking ring as described previously.
Step 5: Remove door lock assembly. (Leave wires & pull rod in
place)
Step 6: Remove clothes door.
Step 7: Remove tub front clamp ring.
Step 8: Remove tub front. Use a fl at screw driver to pry the tub
front loose.
Step 9: Remove the rear access panel.
Step 10: Remove the drive belts.

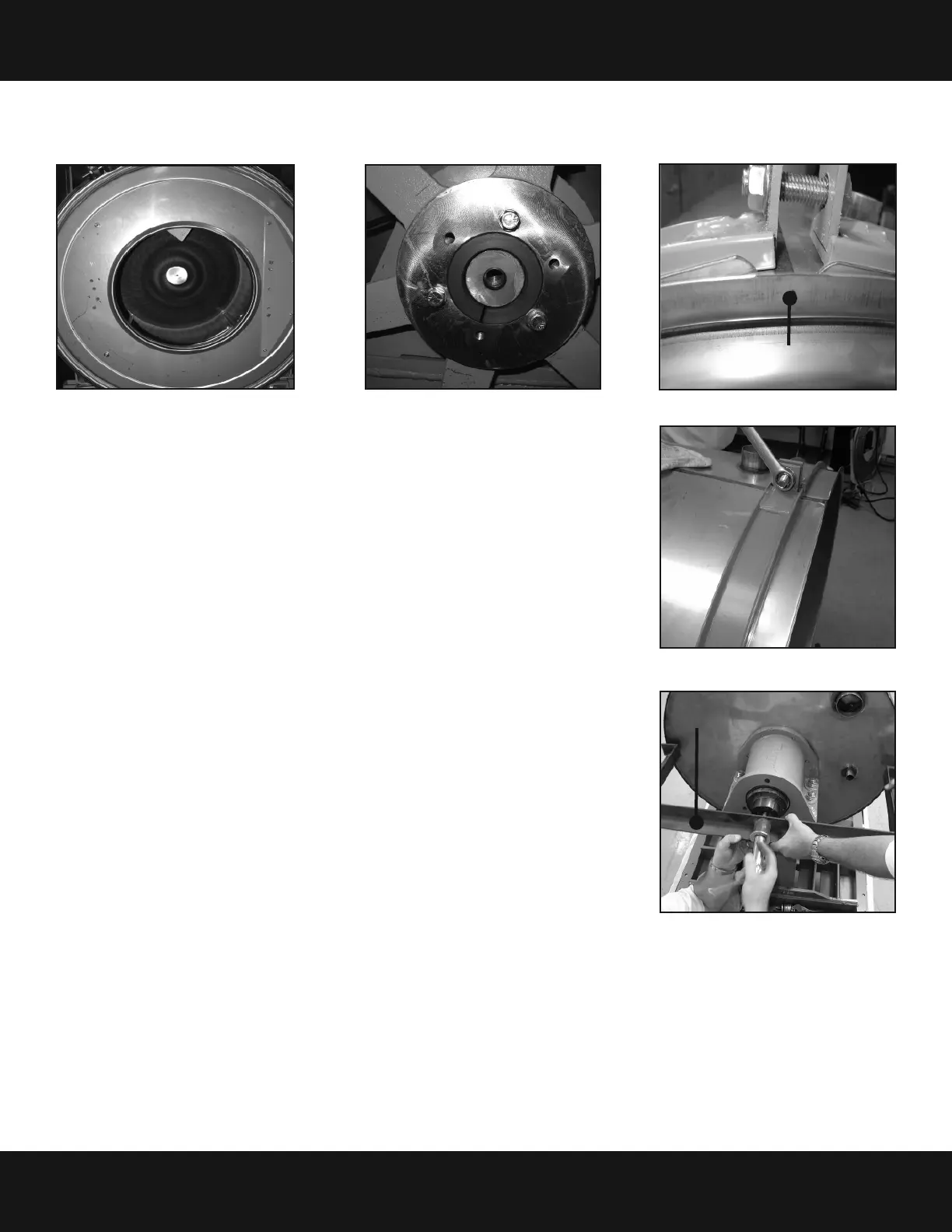

T-900 & T-1200 Cylinder (Basket) Removal
Step 11: Remove drive pulley. Remove 3 retaining screws. Insert 3 2” screws into the
threaded removal holes. Alternately tighten these screws evenly to pull the pulley off.
Step 12: Remove pulley hub. Drive a fl at screw driver into the slot in the hub and pull it from
the shaft.
Step 13: Install cylinder puller. (Snap On part #CJ-84-C) Be sure to thread a bolt into the end
of the cylinder shaft to protect the threads. Push the basket out.
TDC
Dexter Tool
To Next Page
