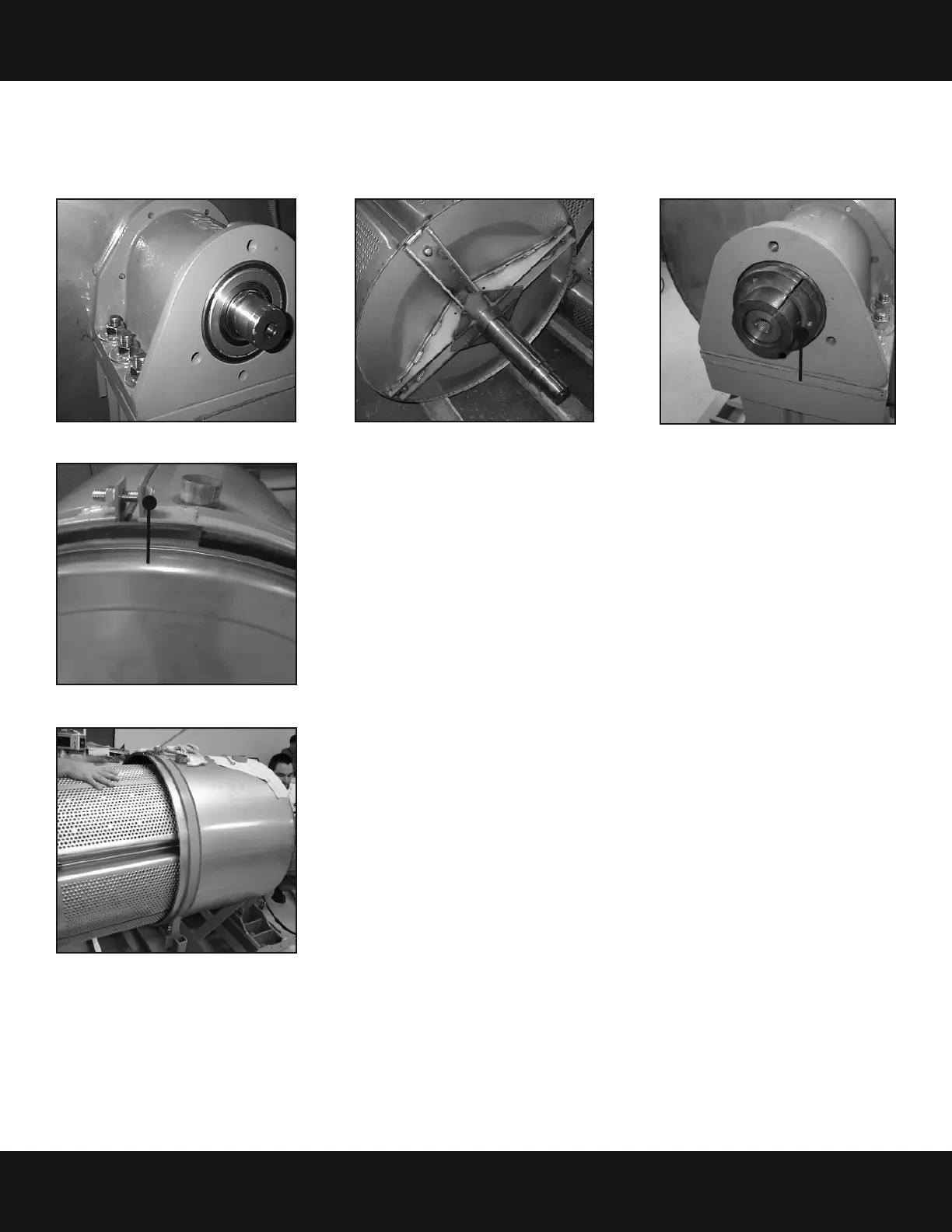

Bearing Housing Assembly T-900 & T-1200
Removal
Step 1: Remove cylinder from washer (see Cylinder (basket)
removal).
Step 2: Remove 6 7/16” tub back to bearing housing cap
screws.
Step 3: Remove 6 3/4” bearing housing to frame bolts.
Step 4: Remove bearing housing from frame.
Step 5: Remove the retaining ring next to the front bearing.
Step 6: The bearings are pressed into the housing and must be
pressed back out.
Reassembly
Step 1: When installing new bearings into a bearing housing,
rst press the front (large) bearing into the housing until it
bottoms and install the snap ring. With the bearing spacer in
place, press the rear bearing in until the spacer is snug between
the two bearings.
Note: If the tub-back water-seal mating ring has been
moved it must be cleaned and resealed
Machine Service Procedures
56
Taper Bushing
Front Top
Clamp Ring
Bolt
