Rapid Advance Mode
To enter the Rapid Advance mode, turn the key CCW. The Rapid Advance setting is not marked
next to the key, but turning the CCW until it stops selects this mode. The Rapid Advance mode
can be entered from either the Idle mode or during the cycle. If the cycle has not yet started, press
the “START” button. To rapid advance to the next step in the wash cycle, push both the “UP” and
“START” buttons at the same time. The display will show an “Ad” (advance) in the display. The
washer will advance to the next bath segment. The water will drain before the advance will occur
and the time displayed may not be accurate.
Notes: - The indicator lights will show to which segment the cycle has been advanced.
- The cycle will continue in rapid advance mode even if the key is turned to “RUN” and/
or removed.
- Rapid advance cannot skip the fi nal 1- minute tumble of the cycle, and the door lock
may remain activated for up to 3 minutes after the cycle has been completed.
- Chemical 120 volt signals will be lost after Rapid advance Mode has been activated
until cycle resets. To exit the Rapid Advance mode, push and hold the STOP button.

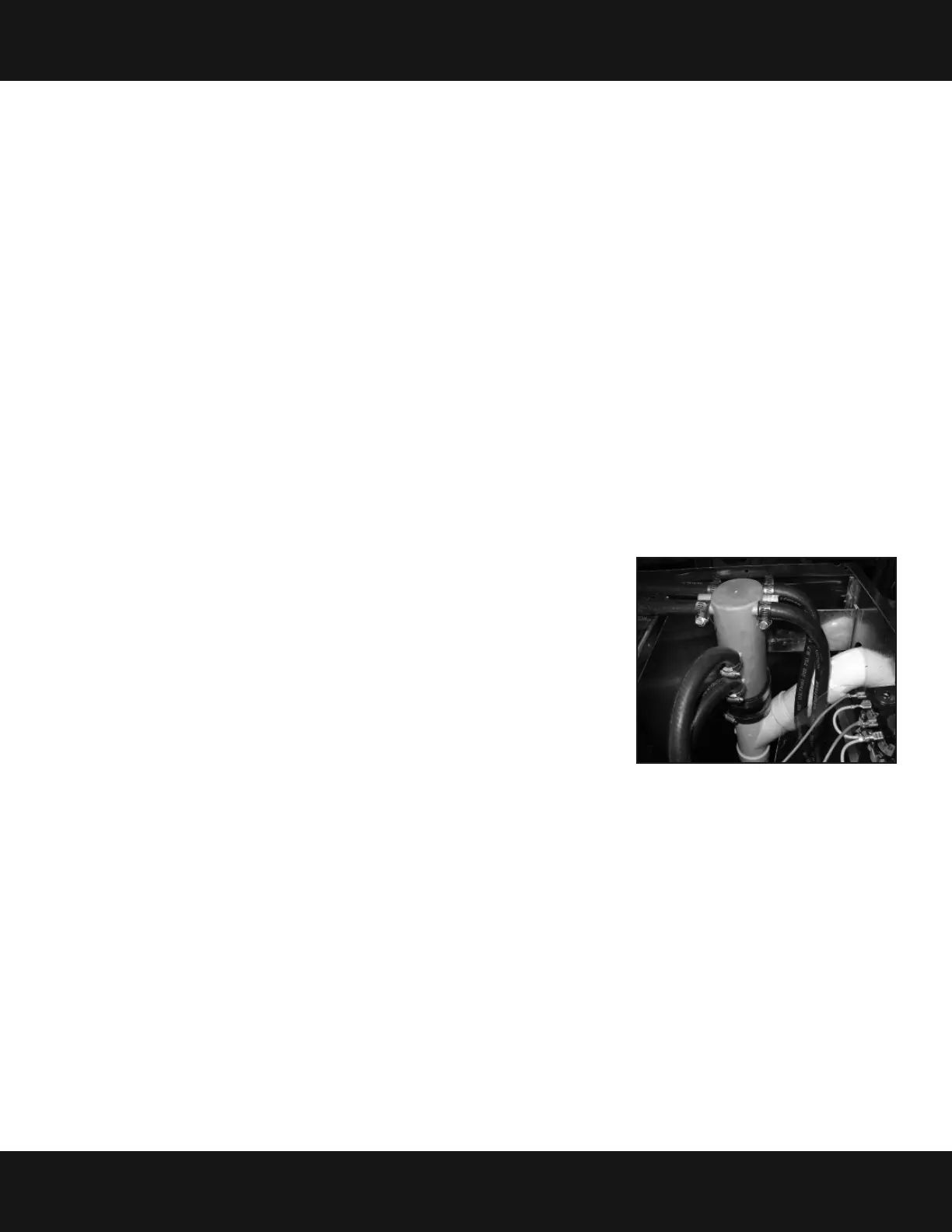

Injection Source Details
The washer control may be programmed to send output signals for
a chemical injection system. There is a separate terminal block
for connection of the external injection signals. For the injection
sources, program codes 0 through 6 are as shown in the table
below. Injection signal will trigger a 120 volt reading at rear terminal
block for approximately 5-10 seconds and will start to trigger at
about 10-15 seconds after start of fi ll bath.
Dexter Controller Injection
Recommended Connections Programmed Signals Terminal Block Circuits
Detergent 1 A
Bleach 2 B
Starch 3 C
Sour/Softener 4 D
5 A and B
6 C and D
0 None
NOTE: The Wash Cycle programming mode will automatically exit and return to the Idle
mode if no buttons are pushed for one minute.
Machine Programming Instructions
27
