Machine Installation & Operation
Electrical Connections

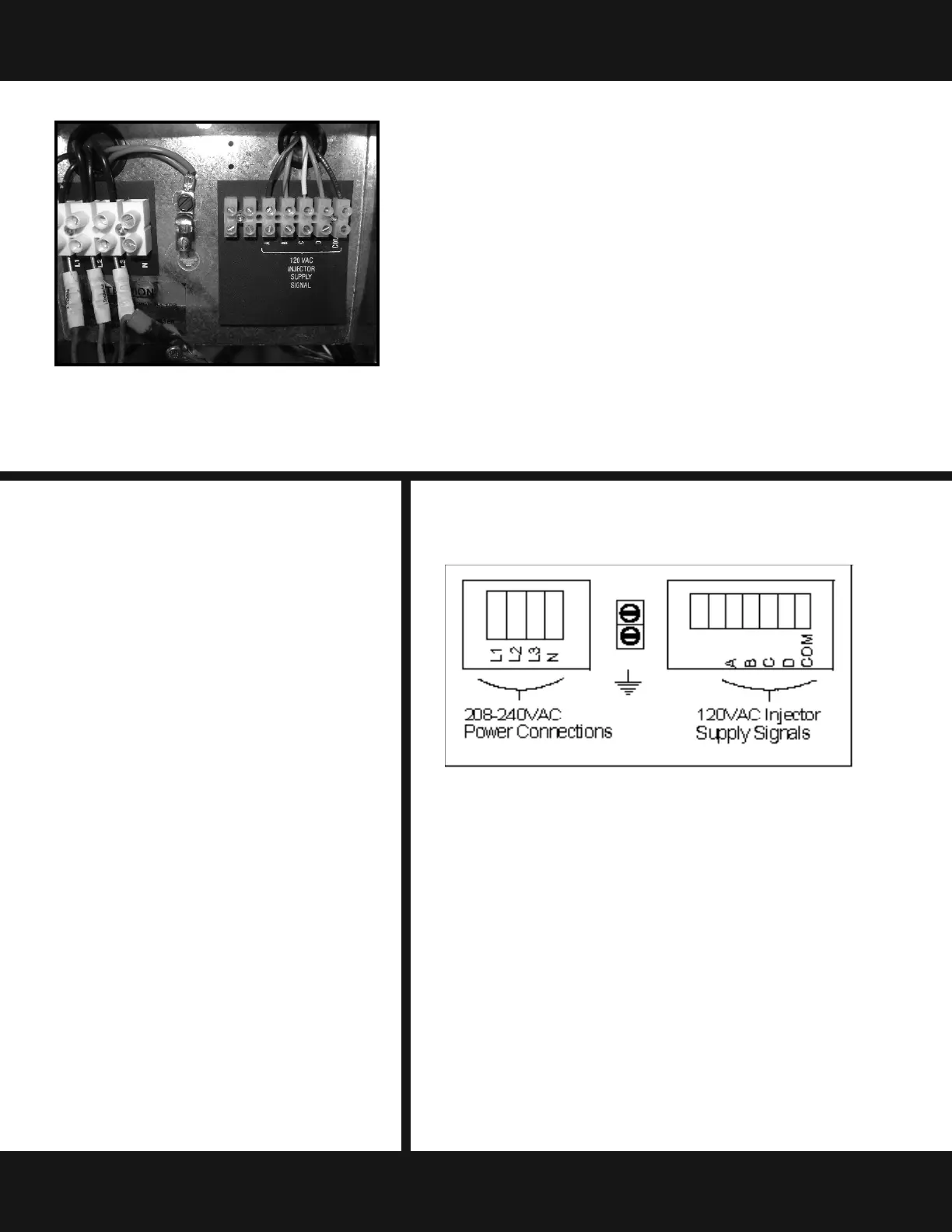

Electrical power connections are made to the small
terminal block located in the rear of the control trough.
The terminal block is accessed by opening the top
panel of the machine.
• 1 Phase or 3 Phase connections
• 208-240 volts, 60 Hz.
• 3 wire plus ground
• Suggested Minimum Wire Size -- 12 Ga.
In the left rear corner of the washer is the chemical
injection assembly. This is where all chemical hose
connections are made. The chemical hoses should
be inserted into the round pvc pipe a minimum of
14” and a maximum of 18” to eliminate chemical
buildup in the pipe and/or restrict water fl ow to the
tub.
Chemical Injection Signals added in
programming section.
#0-No Signal #1-A terminal #2-B terminal
#3-C terminal #4-D terminal #5-A & B
#6-C & D Com-120VAC common
18
Always disconnect electrical power to the machine before performing any
adjustments or service.
Fusing Requirements:
Dual element time delay fuse or
equivalent breaker of amperage
specifi ed below.
1 Phase or 3 Phase 15 amp
WCVD-18-12,WCVD-25,WCVD-40
1 Phase or 3 Phase 20 amp
WCVD-55, WCVD-75
1 Phase 20 amp
WCVD-18-10 120 volt
Rotation in extract as viewed
through glass door at front of
washer models WCVD-25,WCVD-
40,WCVD-55,WCVD-75 will be
counter- clockwise. Rotation in
extract as viewed through glass
door at front of washer model
WCVD-18 will be clockwise.
Liquid Chemical Connection
To Next Page
