DI-80 USER MANUAL

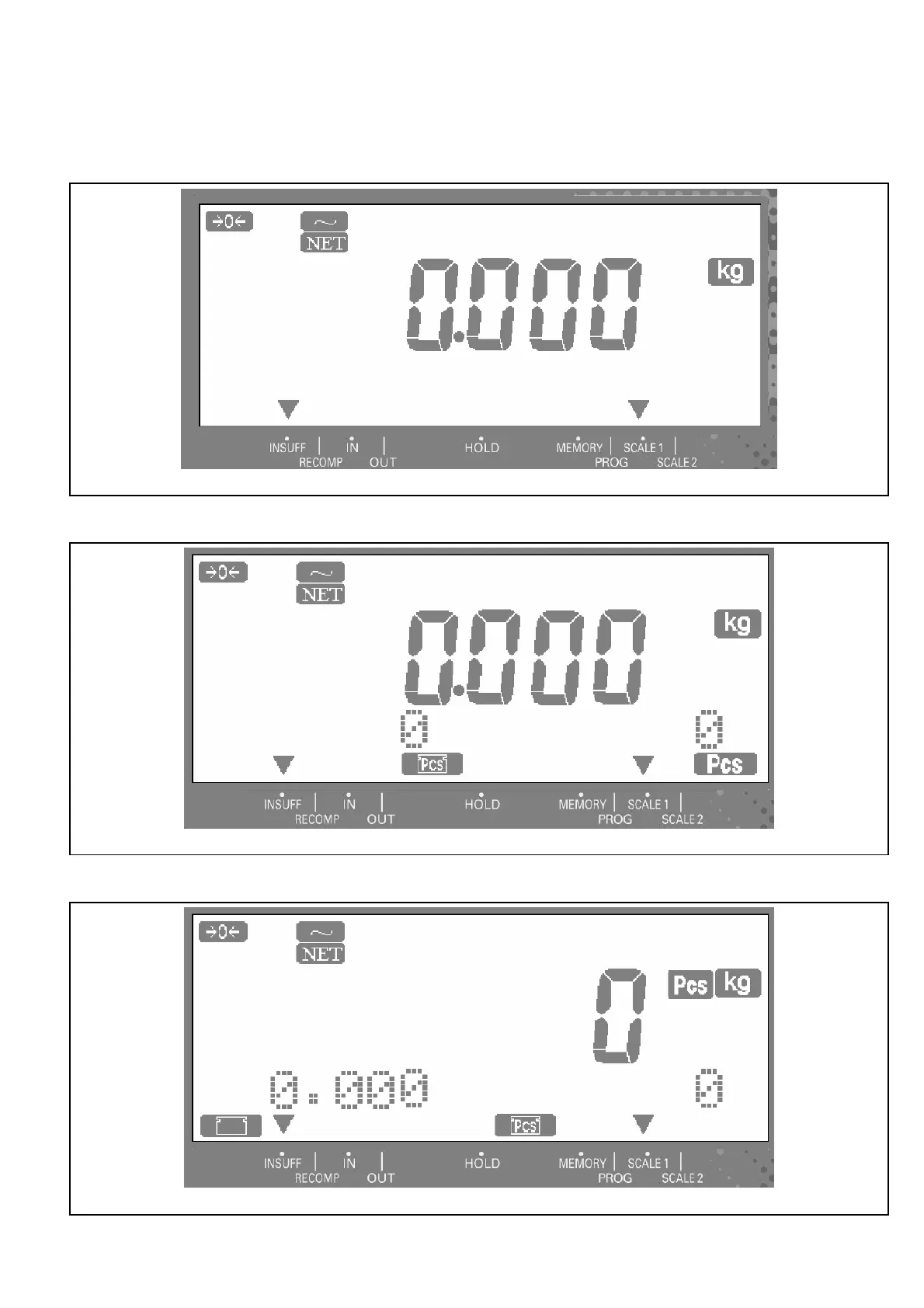

1. 3 REGISTRATION MODE DESCRIPTION
DI-80 / DI-80SS has two modes (Weight Mode and Counting Mode) can be switched alternatively by pressing [MODE] key on
keypad and there are two type of Counting Mode will depending on SPEC 00 bit 3 setting.
1.3.1 Weight Mode
When DI-80 is powered up, it will go to Weight Mode, where the Main Display show the Weight and the Sub- Display will
showing Set point 1 & Set point 2 or PLU Name is depending on SPEC 00 bit 0 setting.
Weight Mode
1.3.2 Counting Mode Type 1
Main Display showing the Total Weight and Sub-Display will show the Unit Weight and Quantity (SPEC 00 bit set to "0").
Counting Mode - Type 1
1.3.3 Counting Mode Type 2
Main Display showing the Quantity and Sub-Display will show Weight and Unit Weight (SPEC 00 bit set to "1").
Counting Mode - Type 2
