Services
Allow
remote
access
for
web
administration
and
SSH
IX14
User
Guide
319

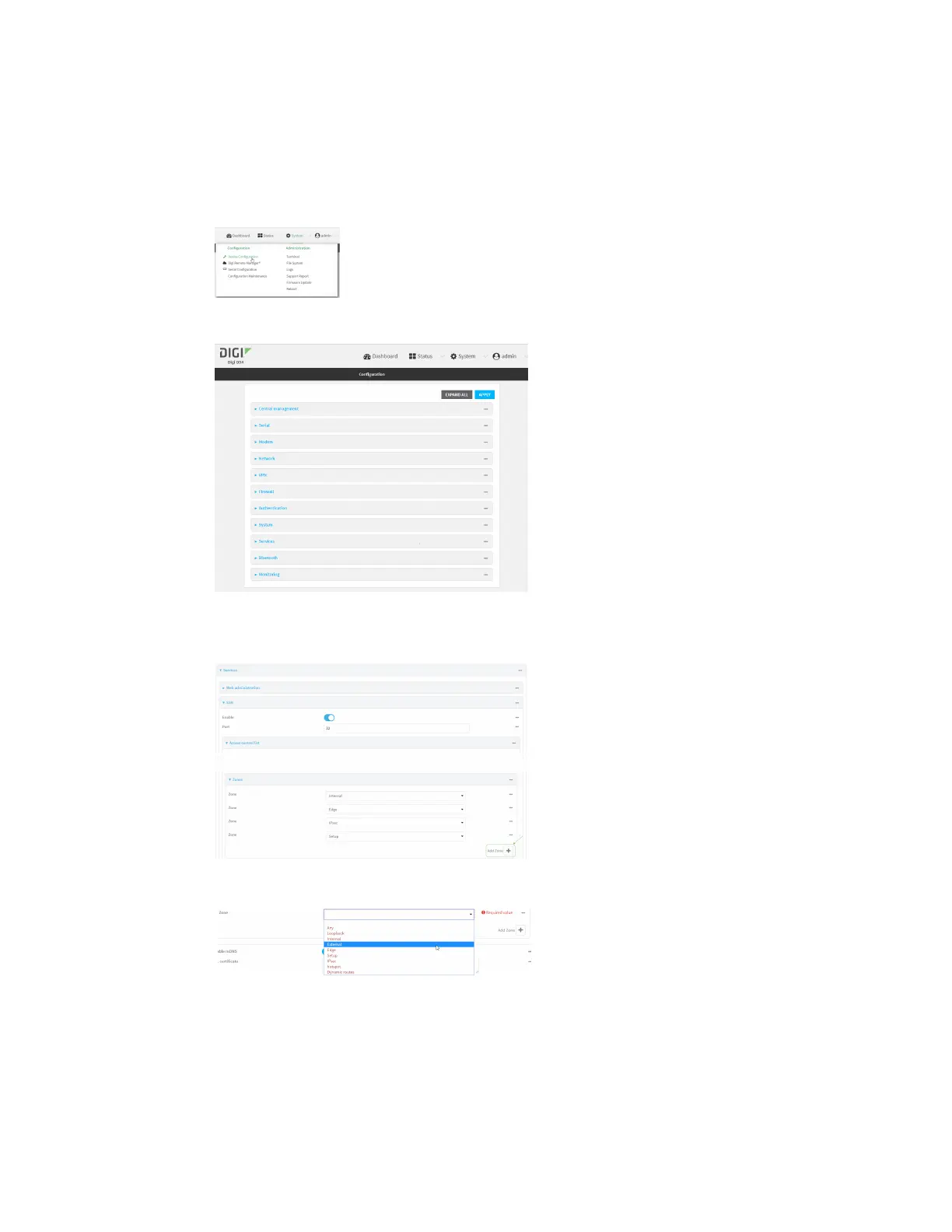

WebUI
1.
Log
into
the
IX14
WebUI
as
a
user
with
full
Admin
access
rights.
2.
On
the
menu,
click
System
.
Under
Configuration
,
click
Device
Configuration
.
The
Configuration
window
is
displayed.
3.
Click
Configuration
>
Services
>
SSH
>
Access
Control
List
>
Zones
.
4.
For
Add
Zone
,
click
.
5.
Select
External
.
318
320
