Getting Started with Digi 002 & Digi 002 Rack100
Digital Outputs
The output configuration of Digi 002 in Stand-
alone mode depends on the digital output for-
mat chosen in the S/PDIF preference setting.
(This is the same setting used to configure the
digital input format.)
S/PDIF Outputs
In Stand-alone mode, the S/PDIF outputs on the
back panel of Digi 002 mirror outputs 1–2 at all
times. If RCA is chosen in the S/PDIF prefer-
ences, only the RCA S/PDIF connector is active.
If Optical is chosen in the S/PDIF preferences,
both the RCA and Optical S/PDIF connectors are
active.
If Optical is chosen in the S/PDIF preferences,
only Main Outputs 1–2 are mirrored in the Op-
tical Output port.
ADAT Optical Outputs
In Stand-alone mode, if RCA is chosen in the
S/PDIF preferences, all 8 Input channels are
passed directly to the ADAT Optical Output
port, pre-fader and pre-effects. This allows you
to route input signals directly to an ADAT device
and record raw input data on all 8 channels.
To change the digital output format:
1 In Stand-alone mode, press F1 (Utility).
2 Press the illuminated Channel Select switch
under Pref.
3 Press the illuminated Channel Select switch
under SPDF (S/PDIF).
4 Press the illuminated Channel Select switch
repeatedly to toggle the digital format to RCA or
Optical.
5 Press the Escape (Esc) switch to exit SPDF pref-
erences.
6 Press the far right-hand Channel Select switch
to save the preference settings.
7 Press the Escape (Esc) switch twice to exit Util-
ity mode.
Views in Stand-Alone Mode
In Stand-alone mode, Digi 002 can display the
mixer controls in several views.
Home View
Home View is the default mixer view that you
see when you first enter Stand-alone mode. This
view is actually the same as Console View with
the Pan controls displayed on the Rotary Encod-
ers, and channel names on the Channel Scribble
Strips.
To put Digi 002 in Stand-alone Home View:
■ In Stand-alone mode, press the Pan switch in
the upper left-hand corner of the Console View
area.

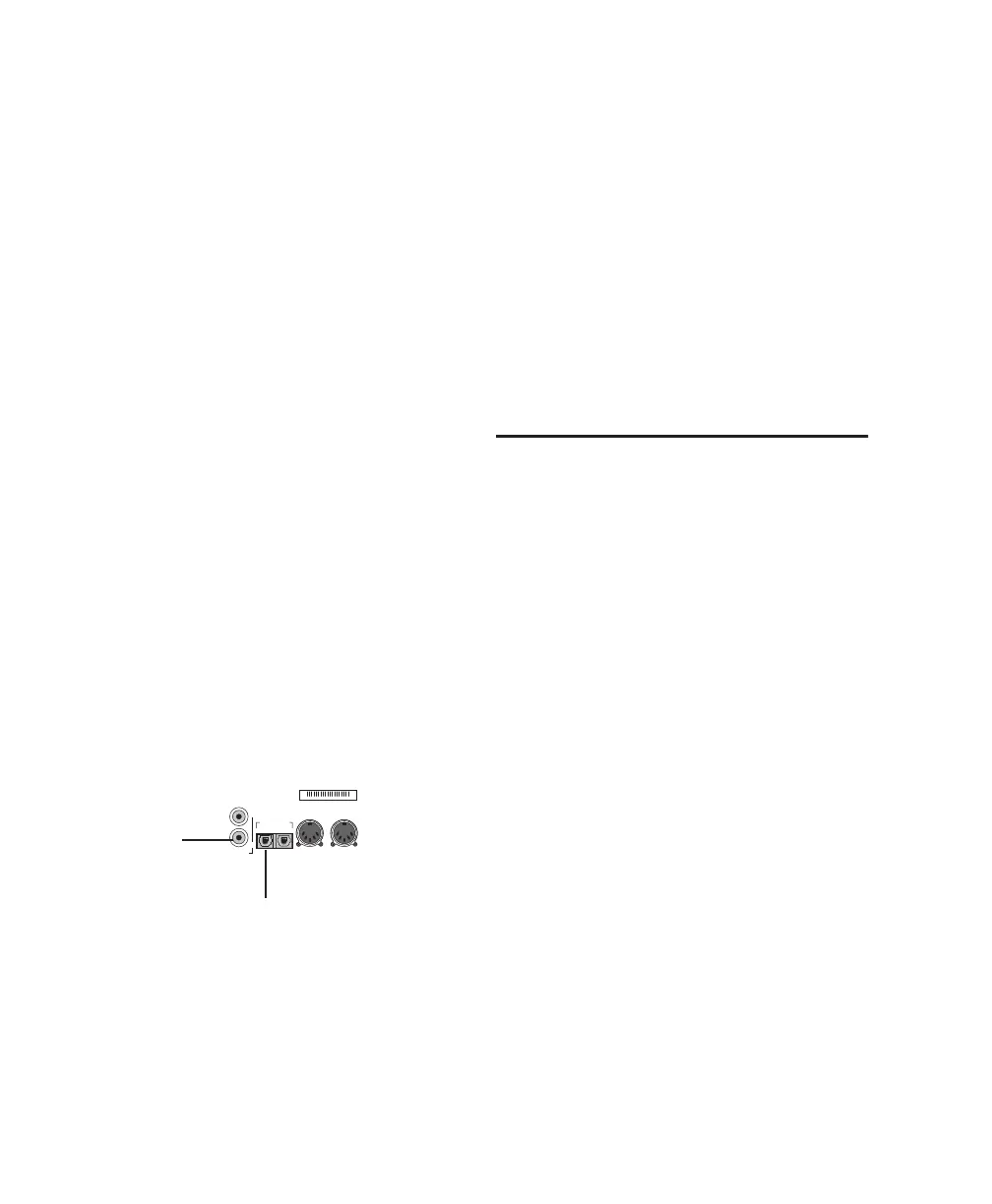

Digital output connectors (back panel)
S / PDIF
IN
OUT
OPTICAL
MIDI OUT 1MIDI OUT 2
IN
OUT
964530300294856
SERIAL NUMBER
RCA S/PDIF
Output
Optical
Output port
