DigiDesign Digi 002 User Manual

Getting Started with Digi 002 & Digi 002 Rack66

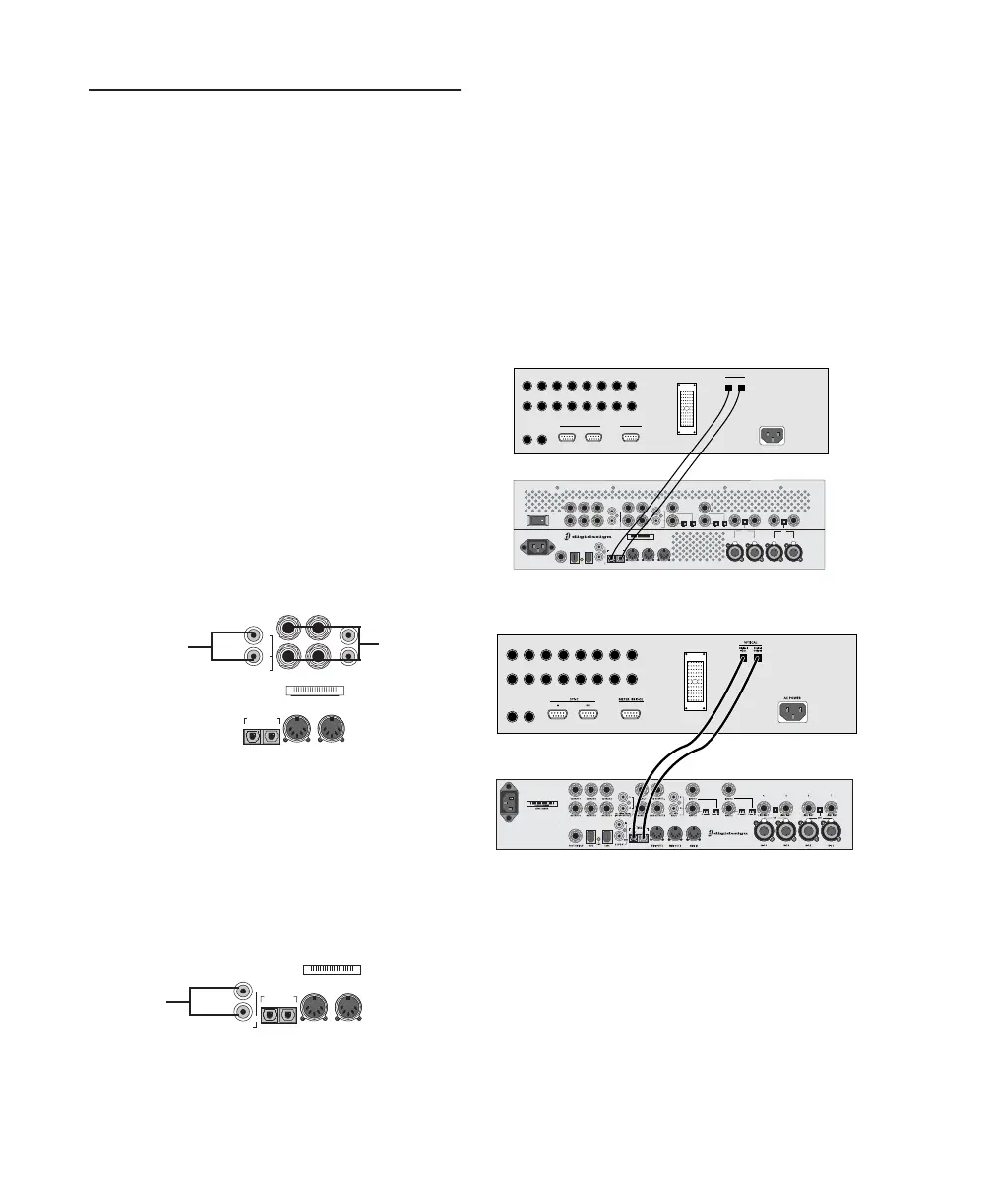

Connecting a Recorder for
Mixdowns
After you record and mix your sessions using
Digi 002 or Digi 002 Rack, you may want to mix
them down to a DAT, audio cassette, or other
stereo 2-track recording device.
Connecting an Analog Deck
◆ If your recorder operates at –10 dBV level,
connect its inputs to the Alt Main Outputs on
the back of the Digi 002 or the Digi 002 Rack.
These outputs are RCA connectors.
◆ If your recorder operates at +4 dBu level, con-
nect its inputs to the Main Outputs 1–2 on the
back of the Digi 002 or the Digi 002 Rack. These
outputs are 1/4-inch jacks. You may need
adapter cables if your mixdown deck has RCA
inputs (and the Alt Main Outputs are not avail-
able).
Connecting a Digital Deck (DAT)
If you have a DAT or other digital device that
can receive S/PDIF digital audio data, connect it
to the S/PDIF In and S/PDIF Out RCA jacks on
the back of the Digi 002 or the Digi 002 Rack.
Connecting an ADAT
To connect an ADAT to Digi 002 or Digi 002 Rack:
1 Connect the Optical output on the ADAT to
the Optical In port on the Digi 002 or
Digi 002 Rack.
2 Connect the Optical input on the ADAT to the
Optical Out port on the Digi 002 or Digi 002
Rack. (When the Digi 002 or Digi 002 Rack is
on, its Optical Out port emits a red light.)
Alt Main and Main Outputs (back panel)
S/PDIF Input and Output
MON OUTPUT L
MON OUTPUT R
MAIN L/1
MAIN R/2
OPTICAL
R
L
MIDI OUT 1MIDI OUT 2
IN
OUT
964530300294856
SERIAL NUMBER
ALT SRC
INPUT
(-10 dBV OUTPUT)
ALT MAIN UNBAL
Main
Outputs
Alt Main
Outputs
(–10
dBV) (+4 dBu)
S / PDIF
IN
OUT
OPTICAL
MIDI OUT 1MIDI OUT 2
IN
OUT
964530300294856
SERIAL NUMBER
RCA S/PDIF
Input and
Output
Connecting an ADAT to Digi 002
Connecting an ADAT to Digi 002 Rack
AC POWER
OPTICAL
METER BRIDGESYNC
Digital
Input
IN OUT
Digital
Output
S / PDIF
IN
OUT
MON OUTPUT L
MON OUTPUT R
MAIN L/1
MAIN R/2
OUTPUT 3
OUTPUT 4
OUTPUT 5
OUTPUT 6
OUTPUT 7
OUTPUT 8
FOOT SWITCH
MIC MIC
13941394
OPTICAL
LINE/ INST LINE/ INST LINE/ INST LINE/ INST
R
L
+4 -10 +4 -10 +4 -10 +4 -10
1 23
4
MIC MIC
48V
LINK
MIDI INMIDI OUT 1MIDI OUT 2
INPUT 5
INPUT 6
INPUT 7
INPUT 8
IN
OUT
964530300294856
SERIAL NUMBER
ALT SRC
INPUT
(-10 dBV OUTPUT)
ALT MAIN UNBAL
R
L
48V
