Monitor and Headphone Level Controls
Monitor Level Control Digi 002 provides a pair of
Monitor Outputs that mirror its Main Outputs
(or outputs 1–2), which correspond to outputs
1–2 in Pro Tools. This knob controls the volume
of those Monitor Outputs.
Headphone Level Control The Headphone Out-
put on Digi 002 also mirrors outputs 1–2 in
Pro Tools, and is independent of the Monitor
Outputs. This knob controls the volume of the
independent Headphone Output.
Monitor Mute Switch This switch mutes the
Digi 002 Monitor Outputs only, and has no ef-
fect on the Main Outputs or the Headphone
Output. Monitor Mute is automatically engaged
when you power up the Digi 002 unit.
Mono Output Switch This switch temporarily
combines the output signals 1 and 2 in both the
Monitor Outputs and the Headphone Output.
This is helpful for checking phase relationships
of stereo material. The Mono Output switch has
no effect on the Main Outputs.
Headphone Jack This jack accepts a standard
1/4-inch stereo headphone connector.
Keyboard Modifier Switches
Many keyboard commands in Pro Tools use
modifier keys, which are pressed in combination
with other keys or with a mouse action.
The Modifier switches on the left-hand side of
Digi 002 mirror the functions of modifier keys
on the computer keyboard. You can use these
switches on Digi 002 in any combination with
keys on your computer while working with
Pro Tools.
Shift/Add Switch Allows you to extend a track
selection or add to a group of selected items
Option/All Switch Applies an action or com-
mand to all tracks in a Pro Tools session
Control/Clutch Switch Temporarily disengages a
control from grouped behavior
Command Switch Allows fine adjustment of con-
trols and automation breakpoints
Refer to the electronic PDF versions of the
Pro Tools Reference Guide and the Key-
board Shortcuts for more information.

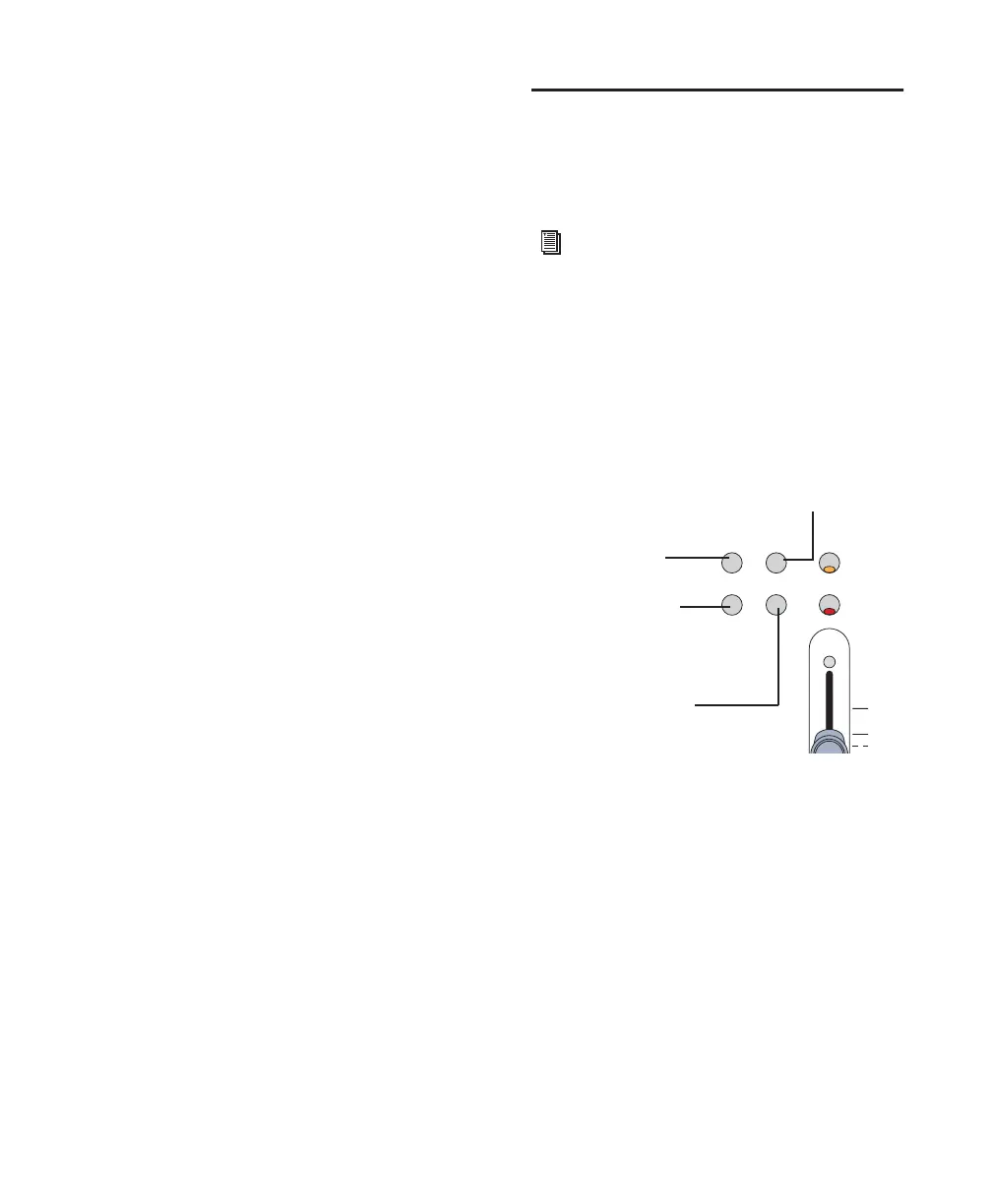

Digi 002 keyboard modifier keys
MUTE
SOLO
MODIFIERS
SHIFT/ADD
COMM/CTL/CLUTCH
OPTION/ALL

+6
0
+3
Option/All switch
Shift/Add switch
Control/Clutch switch
Command switch
