Getting Started with Digi 002 & Digi 002 Rack44
Status Indicators and Display Controls
The area above the Transport and Navigation Controls on Digi 002 contains status indicators, an
8-character LED Scribble Strip, and controls for displaying information about Pro Tools sessions.
Display Scribble Strips and
Display Mode Switch
The Display Scribble Strips have two modes: Sta-
tus mode, which shows the current status of the
Channel Scribble Strips, and Counter mode,
which mirrors the main counter in Pro Tools. To
toggle between the two display modes, press the
Display Mode switch directly to the left of the
Display Scribble Strips.
In addition, pressing the Command switch in
tandem with the Display Mode switch allows
you to set channels to display numerical param-
eter values by default, rather than control
names. For example, in Pan view, when you
press Command+Display, fader volume levels
(in dB) are the default display.
Status Mode
In Status mode, the Display Scribble Strips show
information about the current view.
Console View When Digi 002 is in Console
View, the Display Scribble Strips show which
Console mode is active (Pan, Send, or Insert).
When in Pan mode, the Display Scribble shows
which pan controls are visible in the rotary en-
coders, left pan or right pan. (Right pan controls
are available for stereo tracks only.)
When in Send mode, the Display Scribble shows
the position of the displayed send (A–E).
When in Insert mode, the Display Scribble
shows the position of the displayed insert (A–E).

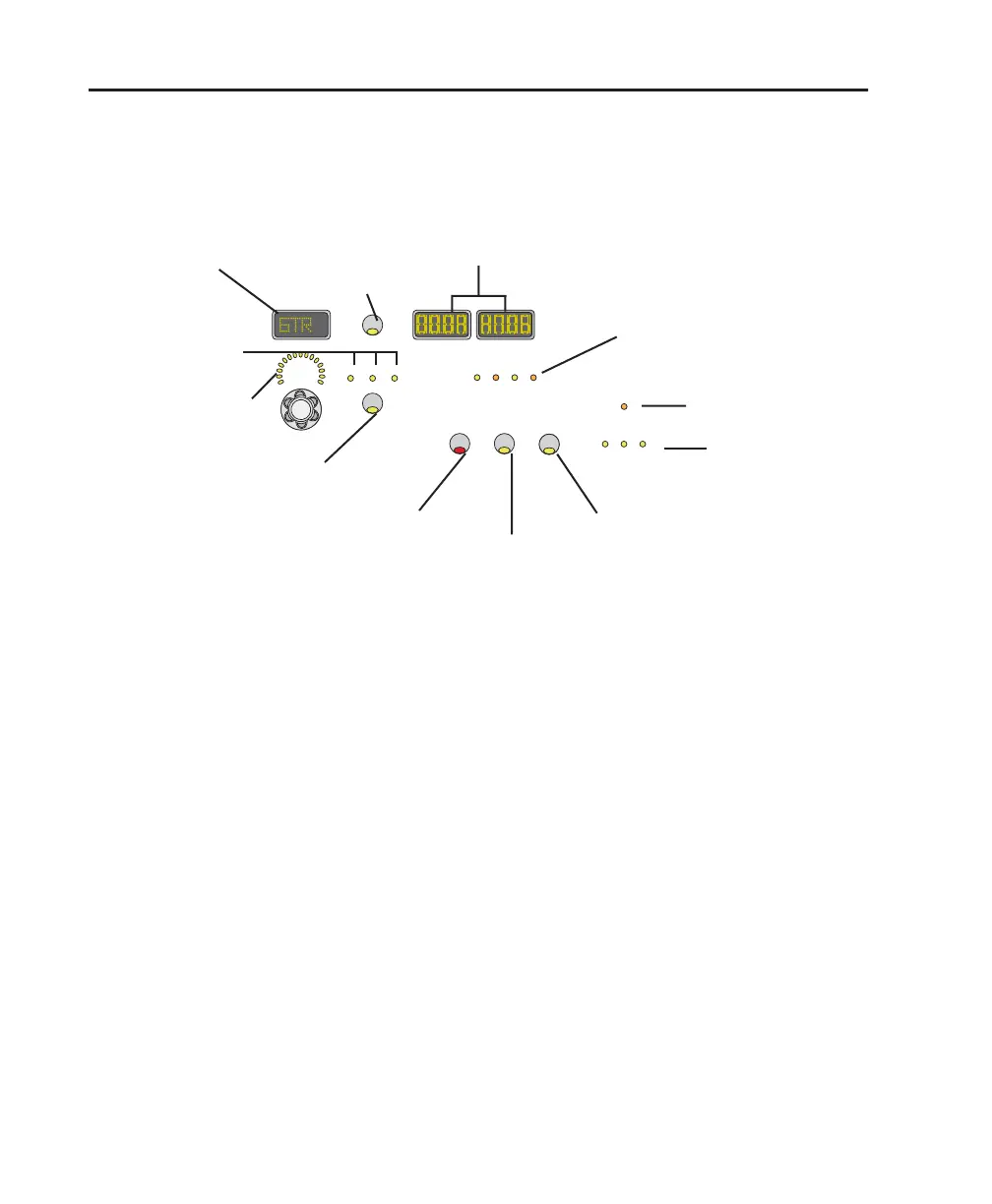

Digi 002 status indicators and display controls
UNDO STANDALONE
DISPLAY
1394
MIDI
IN OUT1
OUT2
LRMETER
ENTER
SAMPLE RATE
44.1 48
88.2 96
Session Sample Rate indicators
Pro Tools Connection
Status indicator
MIDI Data indicators
Display Scribble Strips
Display Mode switch
Encoder/Meter Mode switch
Enter/OK switch
Edit Undo switch
Standalone Mode switch
Encoder/Meter Mode
Encoder/Meter LED ring
Channel Scribble Strip
indicators
