Digital Projection 7000 Series User Manual

Digital Projection E-Vision 7000 Series Changing The Lens, Lamps And Color Wheel Installation and Quick-Start Guide
7
Rev B May 2013

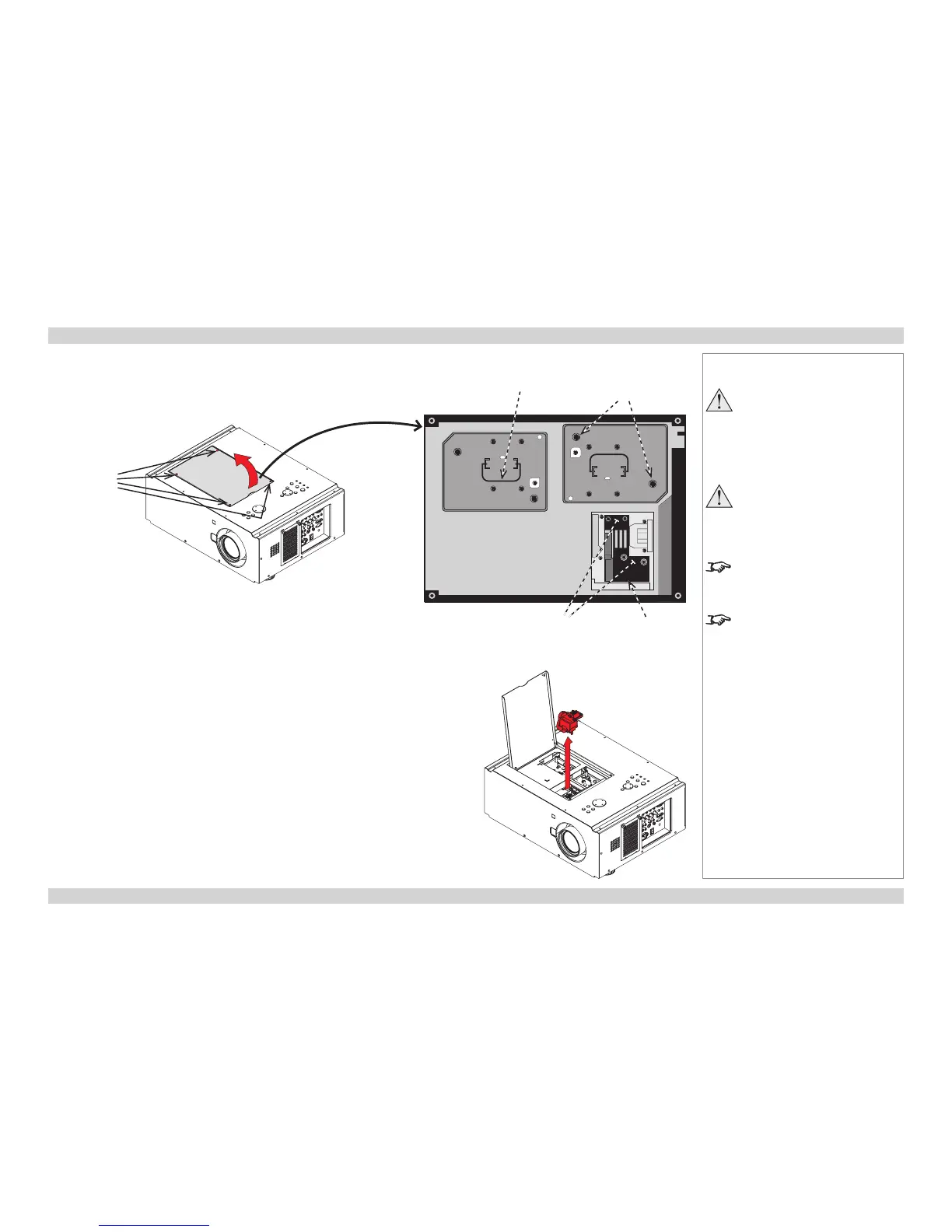

Changing the lamp
• Remove the four screws securing the lamp compartment cover.
• Open the lamp compartment.
• Unscrew the two captive screws securing the lamp module.
• Pull rmly upwards on the handle to remove the lamp module.
• Insert a new lamp module, fasten the screws, and replace the lamp compartment cover.
Changing the color wheel
• Remove the four screws securing the lamp compartment cover.
• Open the lamp compartment.
• Unscrew the four captive screws securing the color wheel.
• Remove the color wheel.
• Insert a new color wheel, fasten the screws, and replace the lamp compartment cover.
Notes
Always allow the lamp to cool for
5 minutes before:
- disconnecting the power
- moving the projector
The lamp and color wheel must
be changed only by suitably
qualied personnel.
The projector will shut down if the
cover is opened whilst in operation.
 Theltersshouldbechangedatthe
same time as the lamp is changed.
Cover
screws
Color wheel
screws
Lamp
compartment
Lamp module
screws
Color
wheel
Handle
