Wiring Details
Signal inputs and outputs

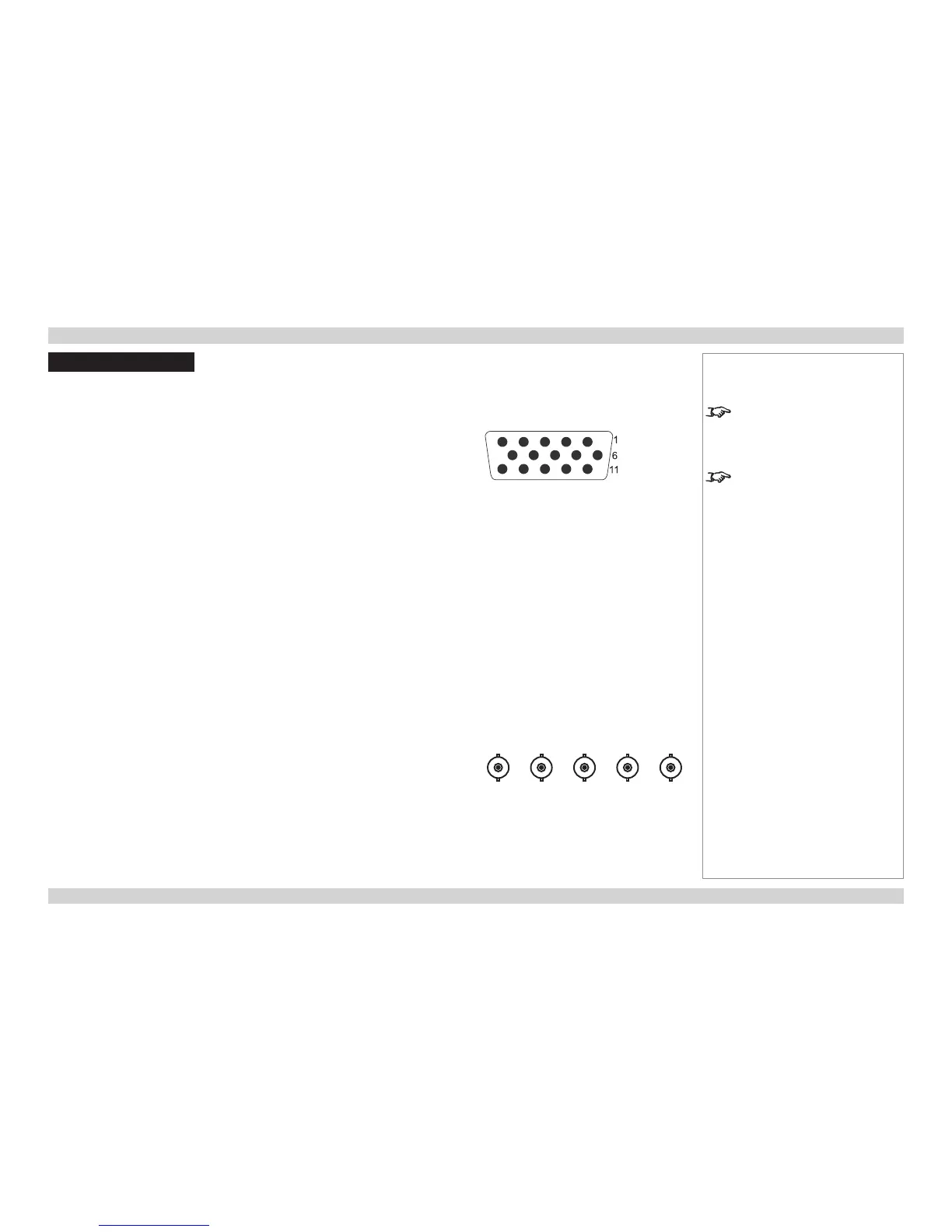

Monitor video output (VGA)
Computer 1 video input: analog computer (VGA)
15 way D-type connector
1 R
2 G
3 B
4 unused
5 Digital Ground (H Sync)
6 R Ground
7 B Ground
8 G Ground
9 +5v
10 Digital Ground (V Sync/DDC)
11 unused
12 SDA
13 H Sync
14 V Sync
15 SCL
Computer 2 video input: RGBHV, RGsB or YCbCr
5 x 75 ohm BNC
RGBHV RGsB YCbCr
Green Green + Sync Y
Blue Blue Cb
Red Red Cr
Hsync
Vsync
Notes
For full details of all input settings,
see the Advanced menu in the
Operating Guide.
For details of the audio connections
associated with these video
connections, see later in this
section.
pin view of female connector
R/Cr G/Y B/Cb H V
