Digital Projection 7000 Series User Manual

Digital Projection E-Vision 7000 Series Wiring Details Connection Guide
23
Rev B May 2013

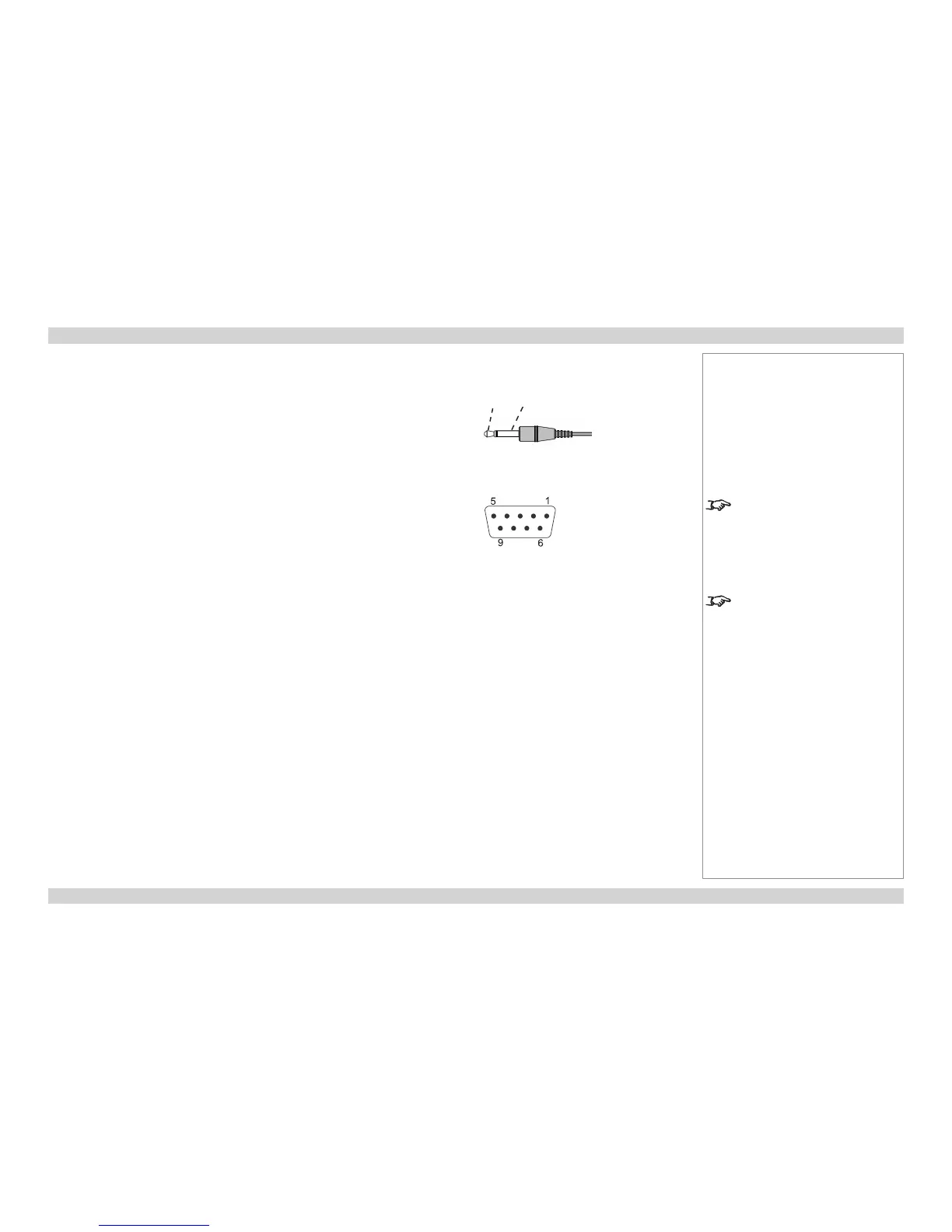

Control connections
Screen Trigger output
3.5mm mini jack
Tip Signal
Sleeve Ground
RS232 Serial control input
1 unused
2 Received Data (RX)
3 Transmitted Data (TX)
4 unused
5 Signal Ground
6 unused
7 unused
8 unused
9 unused
Null-modem cable
(used to connect the projector to a computer)
RX 2 --- 3 TX
TX 3 --- 2 RX
GND 5 --- 5 GND
pin view of female connector
Notes
Only one remote connection can
be used at any one time. For more
information, see the Installation
menu in the Operating Guide.
The projector is a DTE, so use:
a straight cable to connect to a
modem, or
a null-modem cable as shown here
to connect to another DTE such as a
computer.
Sleeve
Tip
