Digital Projection E-Vision 7000 Series Wiring Details Connection Guide
22
Rev B May 2013

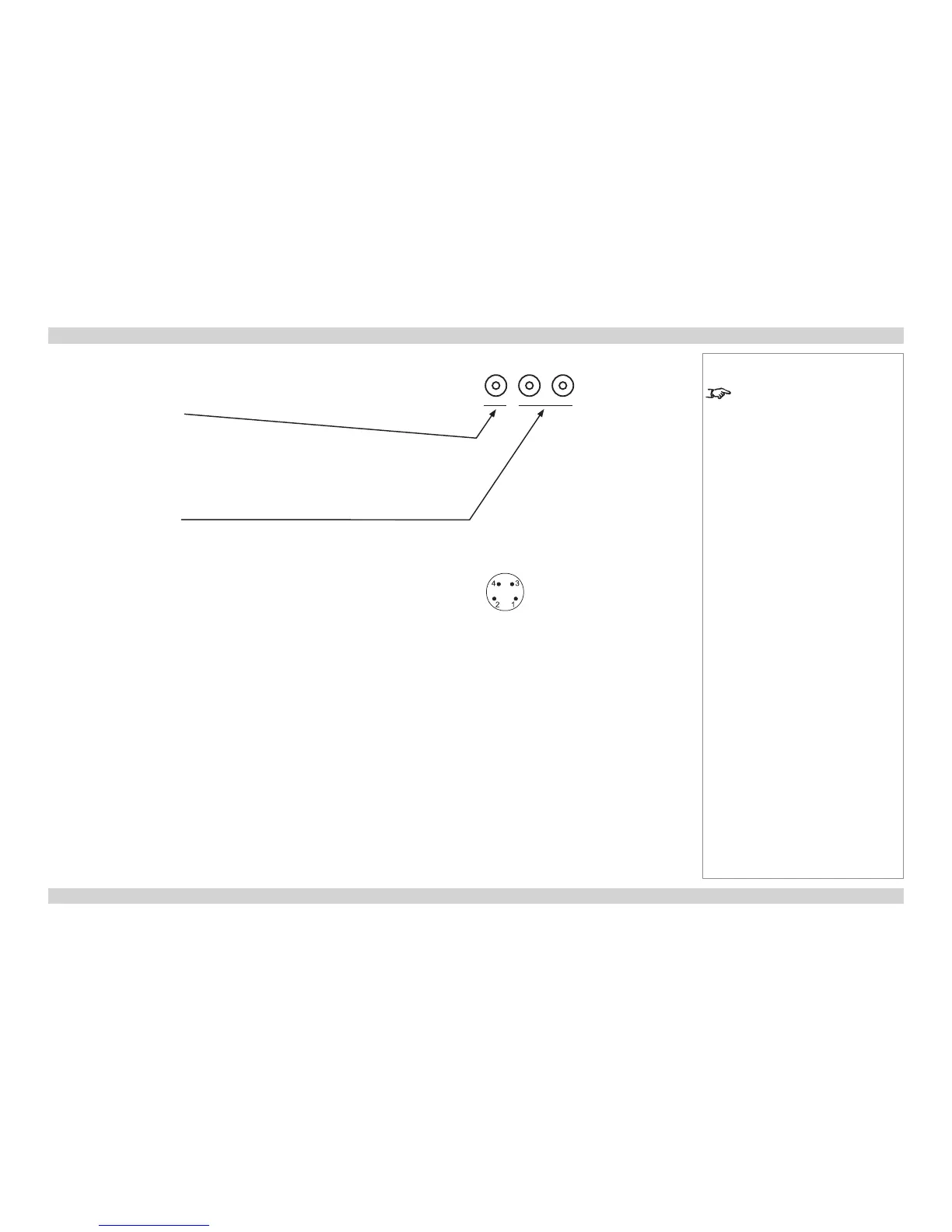

Video input
1 x RCA Phono
Composite Video
Composite and S-Video audio input
2 x RCA Phono
Left or Mono audio
Right audio
S-Video input
4 pin mini-DIN
1 Y Ground
2 C Ground
3 Luminance (Y)
4 Chrominance (C)
pin view of female connector
Notes
For full details of all input settings,
see the Advanced menu in the
Operating Guide.
L R
