Digital Projection 7000 Series User Manual

Digital Projection E-Vision 7000 Series Wiring Details Connection Guide
21
Rev B May 2013

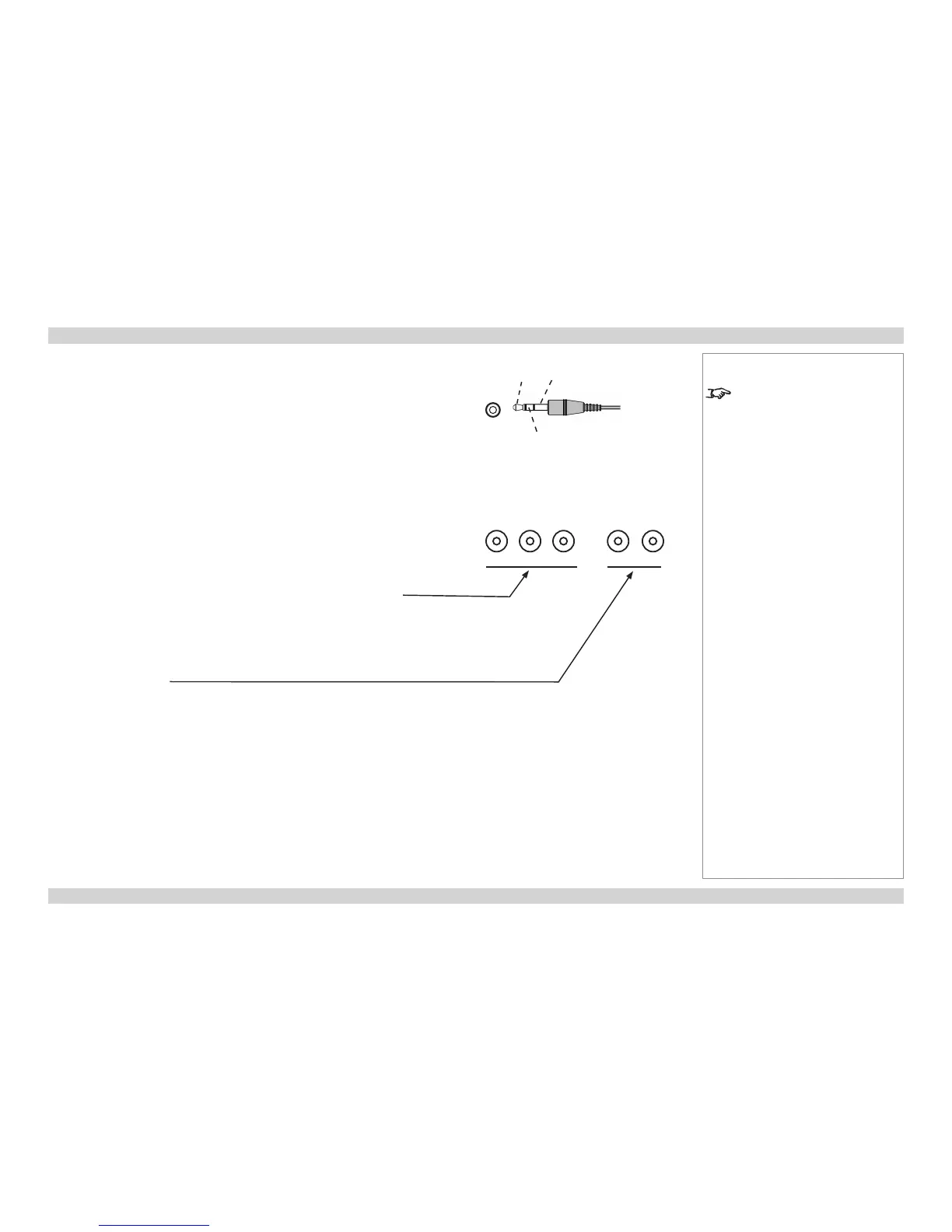

Monitor audio output
Computer 1, 2, 3 audio inputs
3.5mm mini jack
Tip Left
Ring Right
Sleeve Ground
Component video and audio input
3 x RCA Phono
YCbCr YPbPr
Cr Pr
Y Y
Cb Pb
2 x RCA Phono
Left or Mono audio
Right audio
Notes
For full details of all input settings,
see the Advanced menu in the
Operating Guide.
Sleeve
Ring
Tip
L R Y Pb/Cb Pr/Cr
