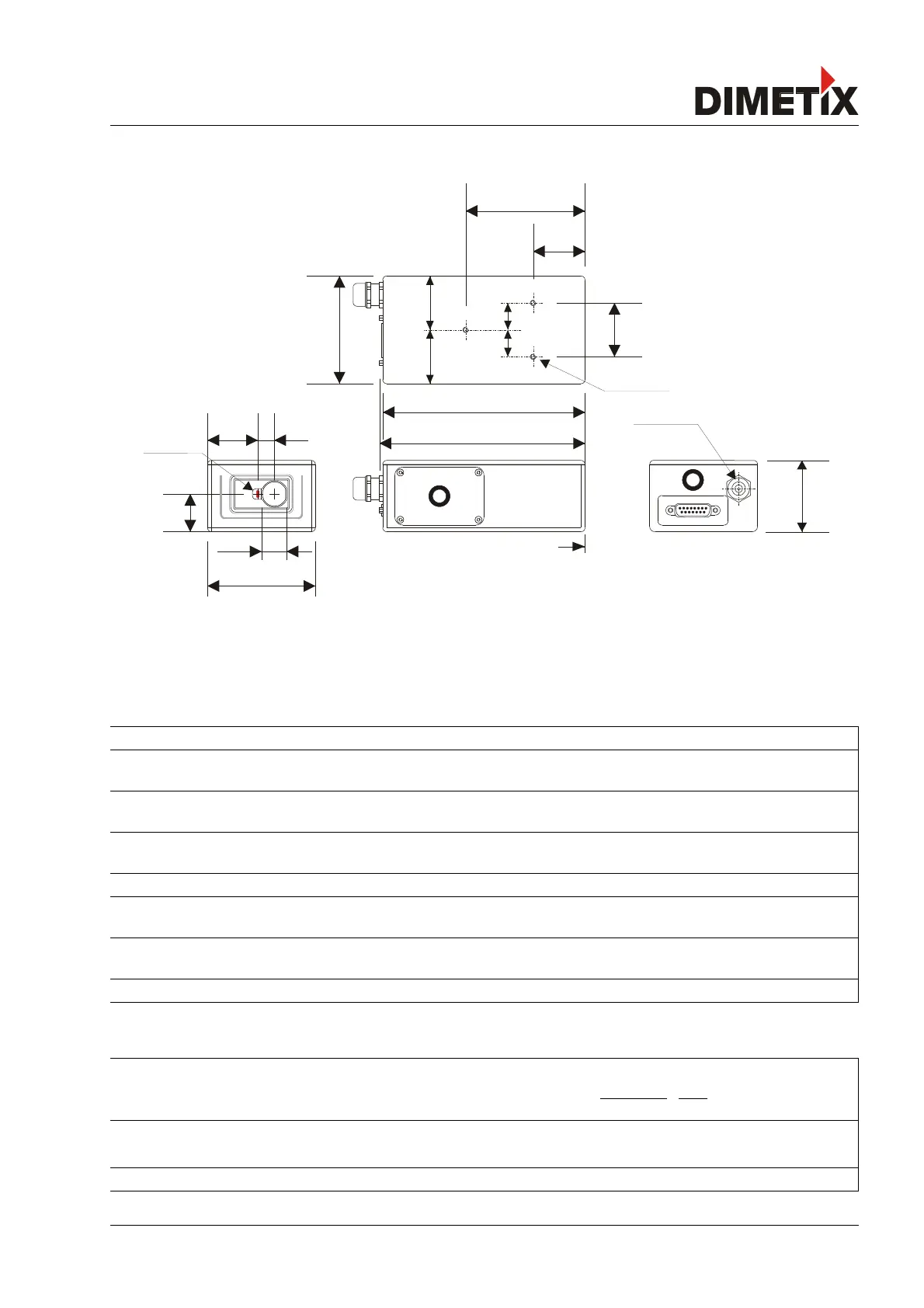

TECHNICAL REFERENCE MANUAL
7 Physical dimensions
All dimensions in mm
8 Factory settings
8.1 Standard configuration
Operation Mode
Controlled
Serial Communication
Setting 7 Baud: 19200
Data bit: 7
Parity: Even
Stop bit: 1
Analog outputs
Min output: 4mA
Error output: 0mA
Range min: 0m
Range max: 10m
SSI Output
Inactive (default is RS-422 active)
Replacement value in case of an error: 0
Device ID
ID Number: 0
Digital output 1 (DOUT1)
ON: 2m + 5mm = 2005mm
OFF: 2m - 5mm = 1995mm
Digital output 2 (DOUT2)
ON: 1m – 5mm = 995mm
OFF: 1m + 5mm = 1005mm
Digital input 1 (DI1)
Inactive, configured as output
8.2 User configured measurement
User distance offset and gain
User distance offset = 0mm
User Gain Num = 1000
User Gain Den = 1000
Measurement characteristic
Normal
Measurement Filter
inactive
Output protocol
No special configuration, display distance
Distance Laser Sensor Page 28/53
Gain=
GainNum
User
GainDen
User
=
1000
1000
=1
37.3
12.2
28.0
150.0
38.5
88.5
Measuring reference
= =
3 x M4 x 5
54.0
80.0
M16 x 1.5
40.0
= =
152.5
80.0
Laser Beam
19.0
