TECHNICAL REFERENCE MANUAL

1.1 Product identification

The product is identified by the label on the top of the sensor:

DLS-C Version with a measurement rate of up to 6 Hz and a maximum measuring distance of 150m

Typical Accuracy

1.5mm 3.0mm

Standard version DLS-C 15

Part No.: 500622

DLS-C 30

Part No.: 500621

Extended temperature range DLS-CH 15

Part No.: 500624

DLS-CH 30

Part No.: 500623

FLS-C Version with a measurement rate of up to 250 Hz and a maximum measuring distance of 500m

Typical Accuracy

1.0mm 3.0mm

Standard version FLS-C 10

Part No.: 600502

FLS-C 30

Part No.: 600501

Extended temperature range FLS-CH 10

Part No.: 600504

FLS-CH 30

Part No.: 600503

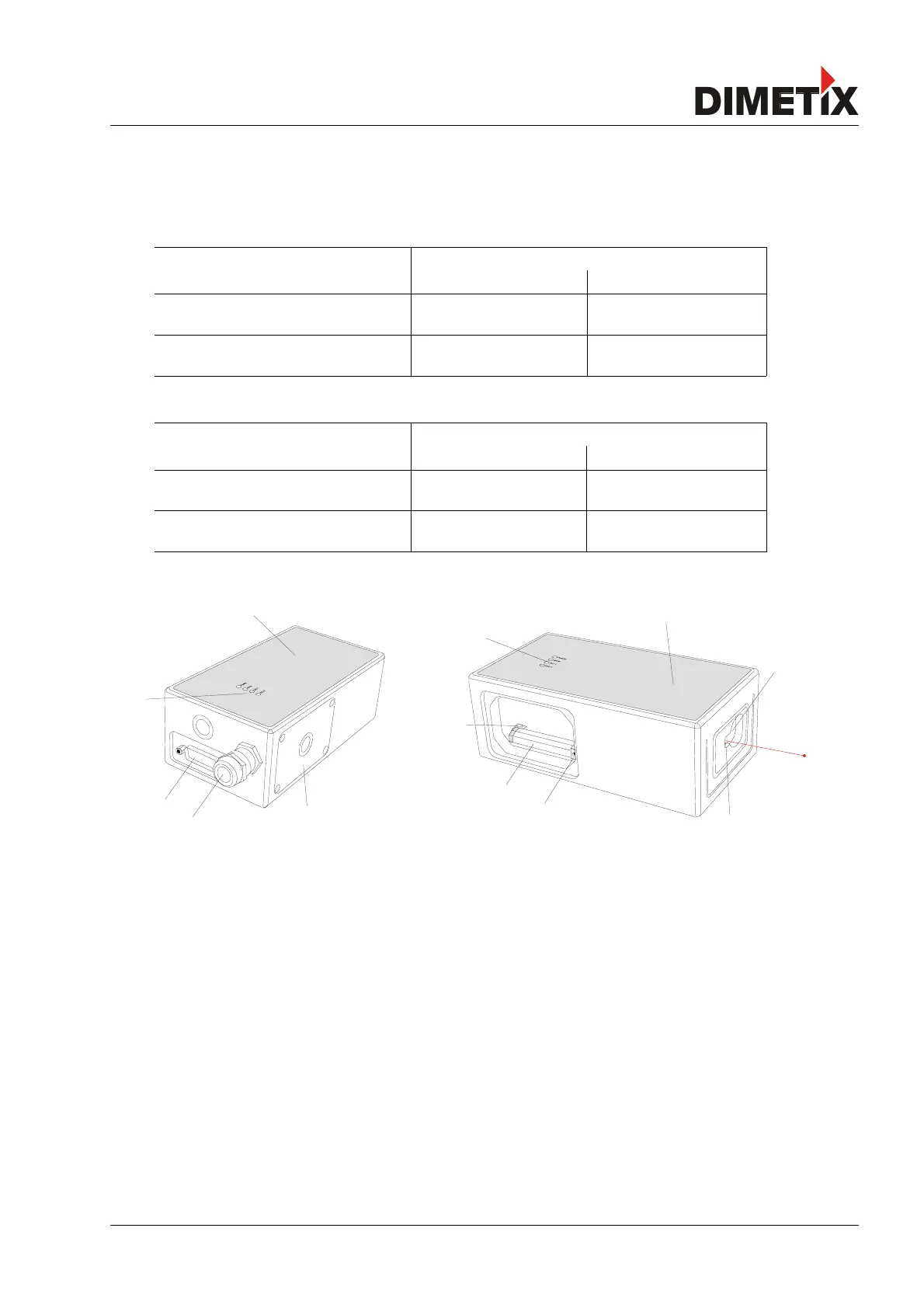

1.2 Components

1 Status LEDs

status signaling

2 15-Pin D-Sub connector

RS-422, RS-232, SSI , analog, digital output

3 Cable gland (M16 x 1.5mm)

for connection cable insertion

4 Cover

provides access to the screw terminal,

Screwdriver-type is Torx T9

5 Reset switch

resets the DLS-C(H)/FLS-C(H) to default settings

6 Screw terminal

RS-422, RS-232, SSI, analog, digital output

7 ID switch

defines the Device ID for RS-422 operation

8 Laser beam outlet

9 Receiver optics

10 Product label

see 10.9 Labeling on page 52

1.3 Validity

This manual is valid for DLS-C(H) and FLS-C(H) devices with the following software version:

Interface software version: 0500 or later

Module software version: 0400 or later

To get the software version use the command described in 9.3.15 Get software version (sNsv) on page 41

Distance Laser Sensor Page 5/53
