TECHNICAL REFERENCE MANUAL
10.9 Labeling
10.10 Laser Specification
Standard applied EN60825-1:2007
IEC60825-1:2007
Emitted wavelength 620-690nm
Beam divergence 0.16 x 0.6 mrad
Pulse duration
0.45x10
-9
s
Max. radiant power 0.95 mW
10.11 Maintenance
The DLS-C(H)/FLS-C(H) is almost maintenance free. The only thing you have to do is to clean the surfaces of the lenses.
CAUTION:
Look after the surfaces of the lenses with same care that you would apply to spectacles, cameras and
field glasses. Clean the optical parts (small laser output glass and the round lens) only with a clean soft
glasses cleaning cloth and avoid scratching of the optical parts. All other cleanser or resolvent are not
allowed.
10.12 Service
If you need to service the device, please contact Dimetix for instructions.
CAUTION:
The warranty is void if the device is opened except the cover of the screw terminal. Removing the label
is also understood as opening.
Distance Laser Sensor Page 52/53

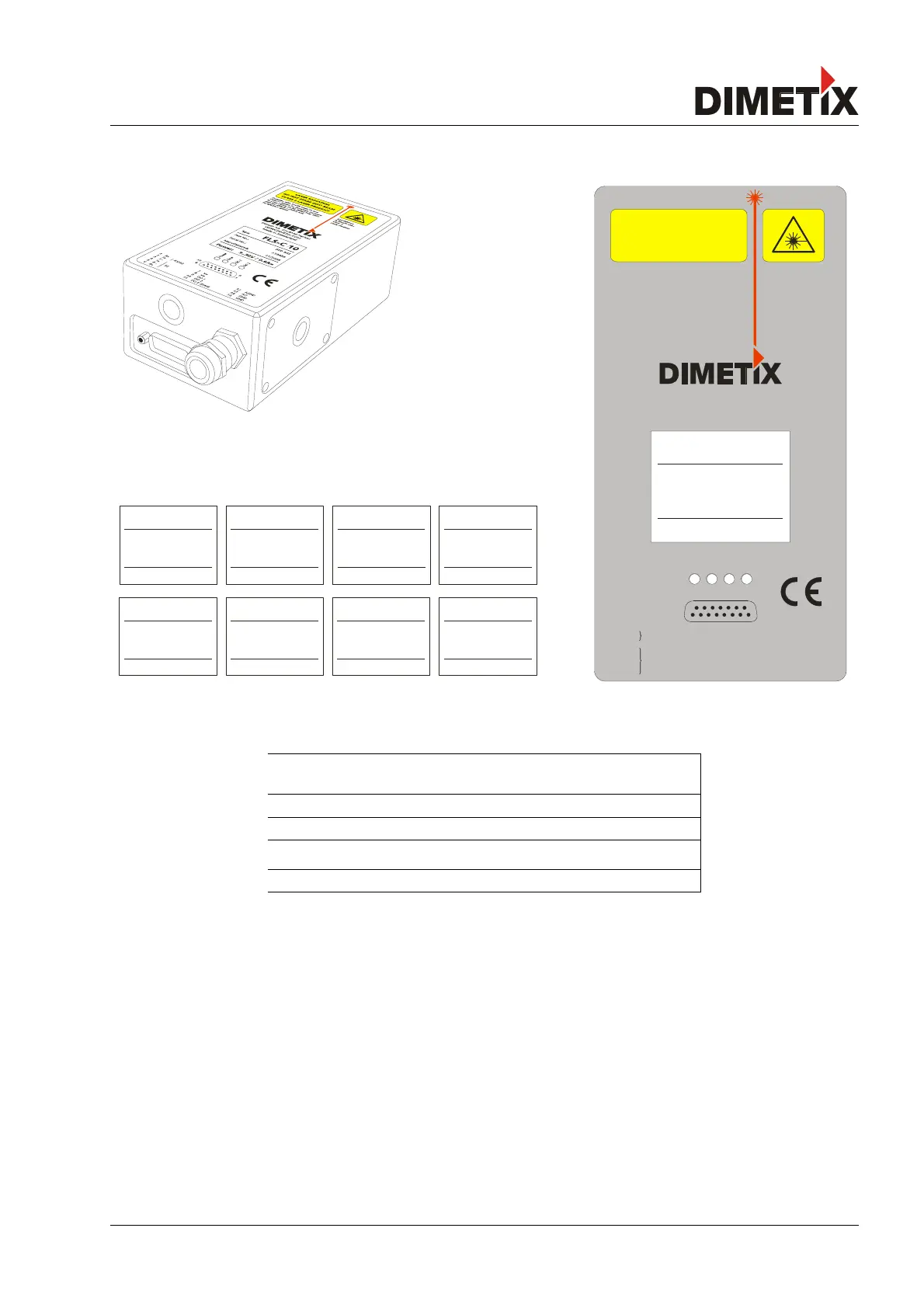

Fig. 22: Location of the label
Fig. 24: all existing type labels
Fig. 23: DLS-C / FLS-C label inclusive type label
1
9 15
8
Pow er
Error
DO 1
DO 2
1 Rx
2 Tx
3 T -
4 T+
5 R -
6 R+
7 V+
8 V+
9 DO 1
10 DO 2
11 DO E (E r ror)
12 AG ND
13 AO
14 G ND
15 G ND
RS 232
If2
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
Dimetix AG CH-9100 Herisau
WWW.DIMETIX.COM
Com plies with 21CFR 1040.10 and
1040.11 except for devia tions pur suant
to Laser Notice no.50, da t ed M a y 2001,
with IE C 60825-1 (2001) a nd
EN 60825- 1 (2001)
620-690nm
0.95m W m ax.
Class 2
Laser P roduct
Made in Switzerland
FLS-C 10
Part No.: 600 502
Manufactured:
Serial No.: 123456
11/2009
Power: 9..30V / 0.6A=
Type:
