Dini Argeo DGT4X Technical Manual

10
Optimized layout for A4 print.
TECH_MAN_ENG_DGT4X
Category I Category II Category III Category IV
Distance
≥ 100 mm
≥ 200 mm
≥ 500 mm
≥ 100 mm
≥ 500 mm
≥ 500 mm
Classification
Fieldbus, LAN network
(PROFIBUS, Ethernet,
Devicenet...).
Shielded data cables
(RS232...).
Shielded cables for
analog digital signals
< 25 V (sensors, load
cells...).
Low voltage power sup-
ply cables (< 60 V).
Coaxial cables.
DC supply cables with
voltage > 60 V and <
400 V.
AC supply cables with
voltage > 25 V and <
400 V.
Power supply cables
with voltage > 400 V.
Telephone cables.
Any cable subject to
lightning danger.
Load cell RS232 RS485 Analog output
50 metres with
6 x 0.25 mm
2
cable;
100 metres with
6 x 0.5 mm
2
cable.
15 m with baud rate up to
19200.
1200 m with shielded 2 x
24 AWG twisted pair with
outer braid + aluminium
strip.
CURRENT:
100 metres with 2 x 0.25 mm
2
cable;
150 metres with 2 x 0.5 mm
2
cable;
300 metres with 2 x 1 mm
2
cable.
VOLTAGE:
50 metres with 2 x 0.25 mm
2
cable;
75 metres with 2 x 0.5 mm
2
cable;
150 metres with 2 x 1 mm
2
cable.

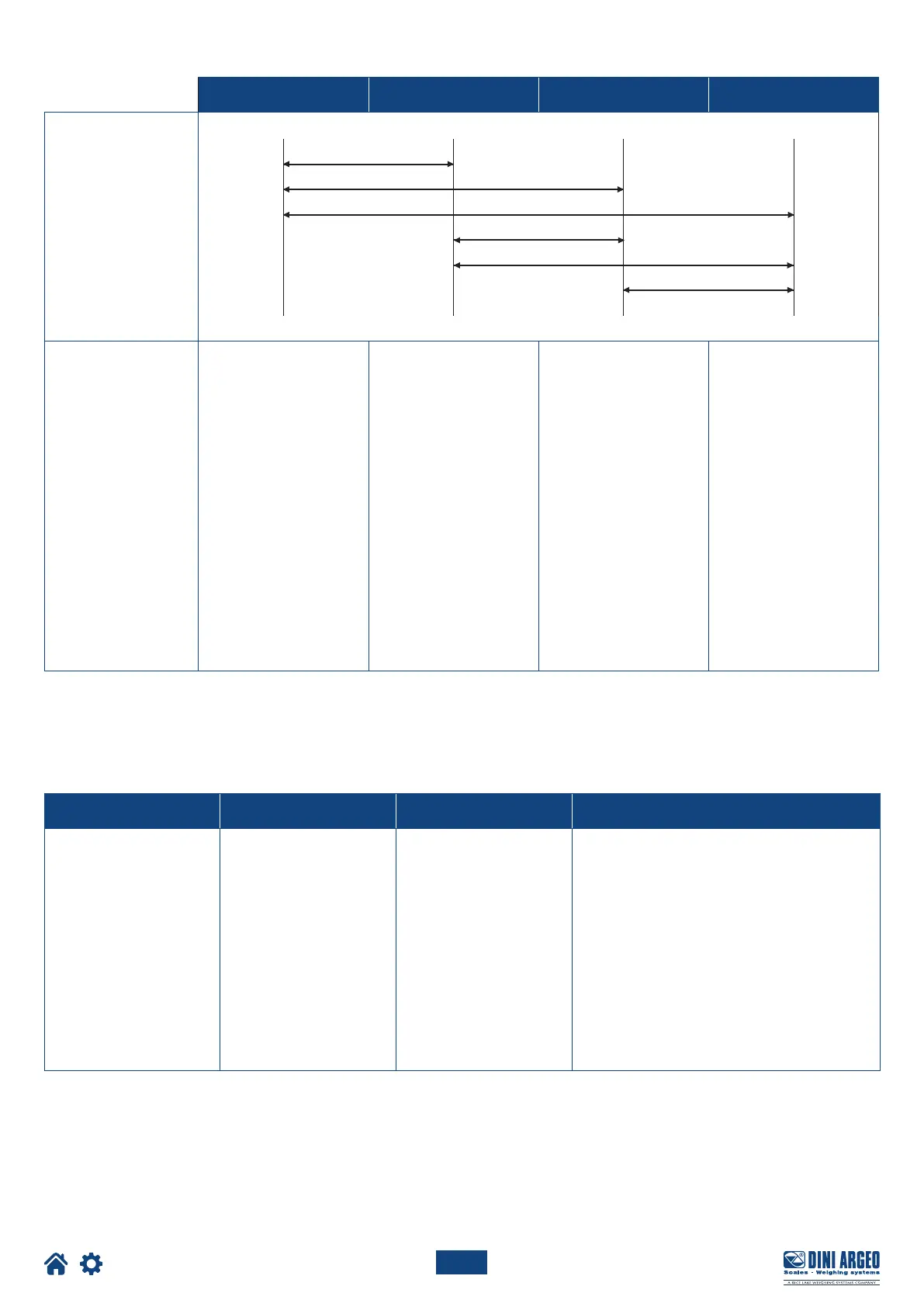

RECOMMENDED DISTANCES AND CABLE CLASSIFICATION
MAXIMUM ALLOWED LENGTHS
