Dini Argeo DGT4X Technical Manual

45
Optimized layout for A4 print.
1 1
1
3
2
2
5
4
2
5
3
4
8
6
9
7
10
TYPE
A
888888
Setup
C
ConfiG
mode ao.Gro
0 5V
0 20mA
ao.net
0 10V
manual
4 20ma
ao.type
weiGt.1
Calib
Chan
out 2
out 1
weiGt.3
weiGt.2
out 3
1
an.out
7
1
3
2
4
ao 0v
ao 0ma
ao 10v
ao.20ma
i
TECH_MAN_ENG_DGT4X
LEGEND:
Indicates repeated pressing of
the key.
Parameter visible only
under certain conditions.
Parameter or menu subject
to approval.
Default value of the parameter.
Analog output for gross weight.
Operation 0 - 20 mA.
Setting D/A points at 0 V.
Operation 0 - 5 V.
Manual setting of D/A points.
Setting D/A points at 0 mA.
Analog output for net weight.
Operation 4 - 20 mA.
Setting D/A points at 10 V.
Operation 0 - 10 V.
Setting D/A points at 20 mA.
Weight 1.
Selection of the scale associated with the analog output.
Value in V / mA / D/A points for weiGt.1.
Weight 2.
Value in V / mA / D/A points for weiGt.2.
Weight 3.
Value in V / mA / D/A points for weiGt.3.

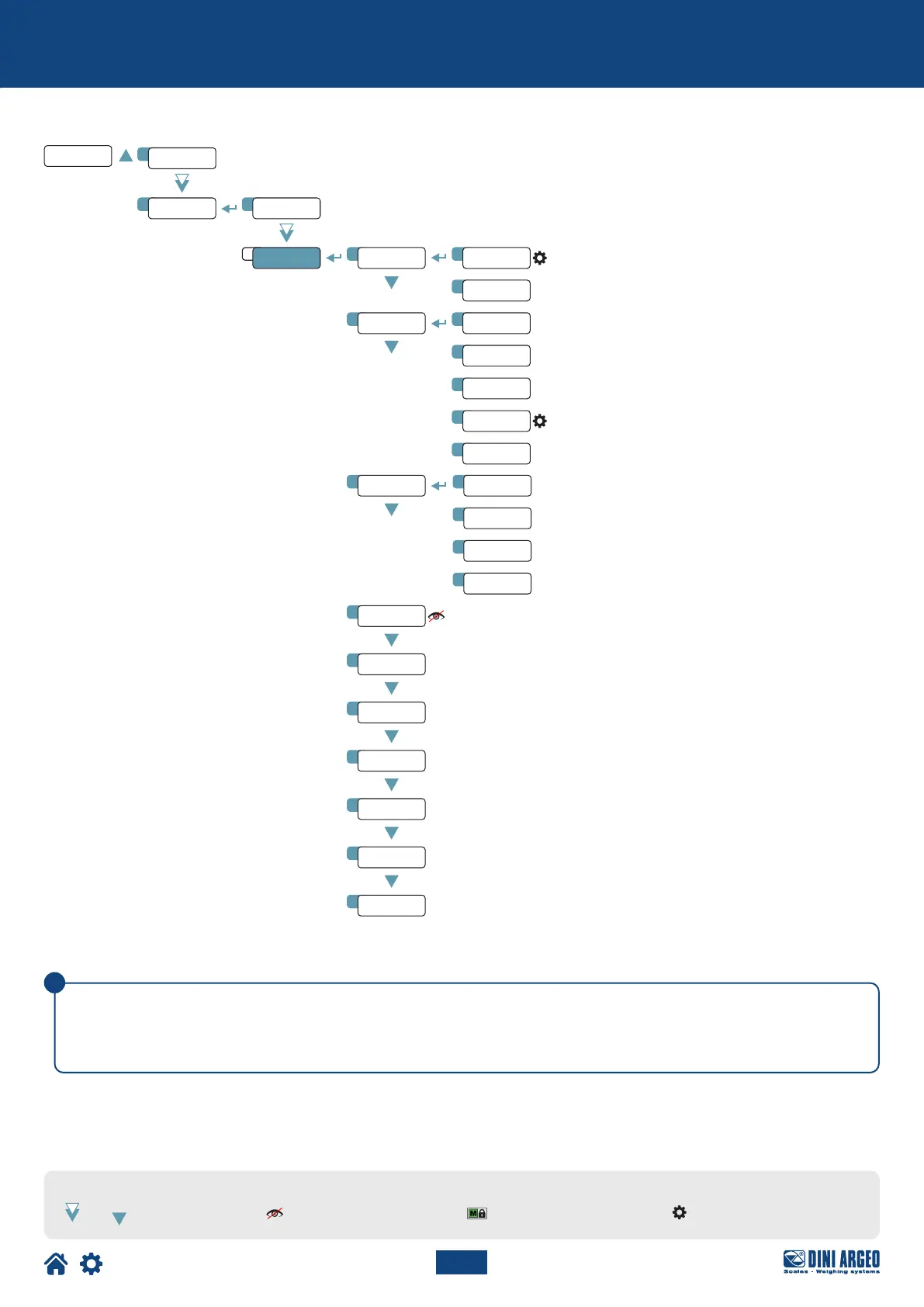

Analog output configuration
The DGT4XAN model has an analog output in voltage (0 - 5 / 0 - 10 Vdc) or current (4 - 20 / 0 - 20 mA ).
This menu allows an advanced configuration of the analog output.
For simple configurations, it is recommended to use the quick menu (Ref. Quick Start Guide).
