Dini Argeo DGT4X Technical Manual

34
Optimized layout for A4 print.
888888
TYPE
A
888888
Setup
C
ConfiG
1
deCi
man.Cal
Calib
1
8
5
i
TYPE
A
888888
Setup
C
ConfiG
1
0.Calib
6
i
TECH_MAN_ENG_DGT4X
MENU ACCESS:
SAVING THE PARAMETERS:
Press the key during the start-
up procedure.
Press the key several times, until the display shows
SAVE?. Press the key to confirm.
Complete menu
on pages 24 - 25

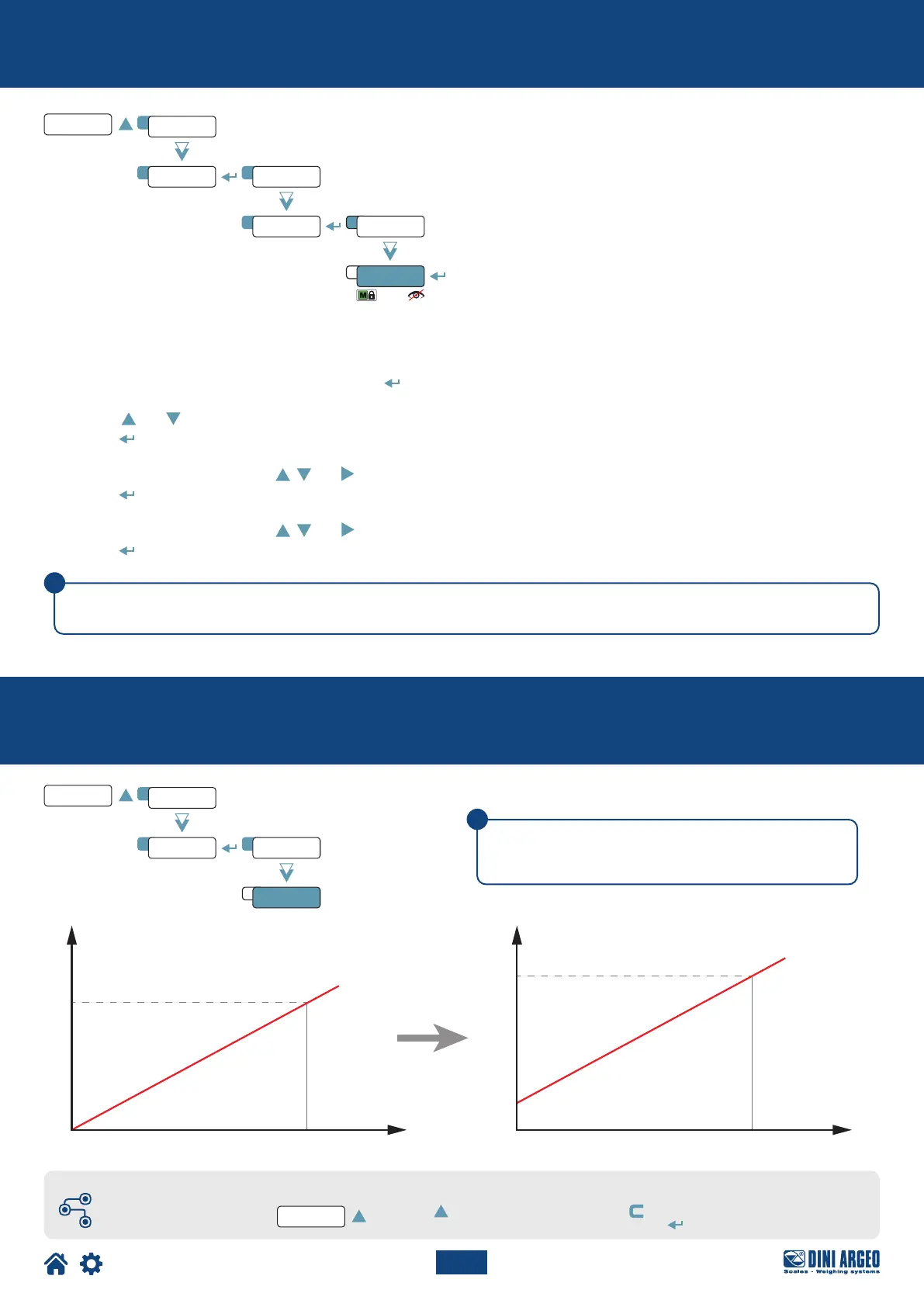

Manual calibration
Repeat the procedure for each calibration point.
If ind.CH mode has been selected, the procedure must be repeated for each scale (CHAN 2, 3, 4).
If you know the number of ADC converter points for a known weight (for example if you want to copy the calibration from one transmitter
to another) the calibration points can be entered manually:
1. The display shows mod.pnt, proceed by pressing the key.
2. Using the and keys, select the calibration point you want to enter / change (from 0 to 3).
Press the key to confirm.
3. The display shows weiGht, use the , and keys to enter the weight value.
Press the key to confirm.
4. The display shows points, use the , and keys to enter the converter points value.
Press the key to confirm.
Quick zero calibration (pre-tare reset)
If ind.CH mode has been selected, it is first necessary to
select the channel on which the zero calibration is to be
performed (CHAN 1 2, 3, 4).
Tp 0 Tp n
ADC
Kg
Tp 0 Tp n
ADC
Kg

