Dini Argeo DGT4X Technical Manual

29
Optimized layout for A4 print.
1
3
3
5
5
2
2
4
4
TYPE dep.Ch
A 1
888888
nChanSetup
1C
ConfiG
1
deCi
div
ranGe1
Calib.p
u.m.
Calib
1
3
4
6
2
5
equal
n tp
ddt2
ddt1
ddt3
Tp 0
Tp 2
tp 1
tp 3
TECH_MAN_ENG_DGT4X
LEGEND:
Indicates repeated pressing of
the key.
Parameter visible only
under certain conditions.
Parameter or menu subject
to approval.
Default value of the parameter.

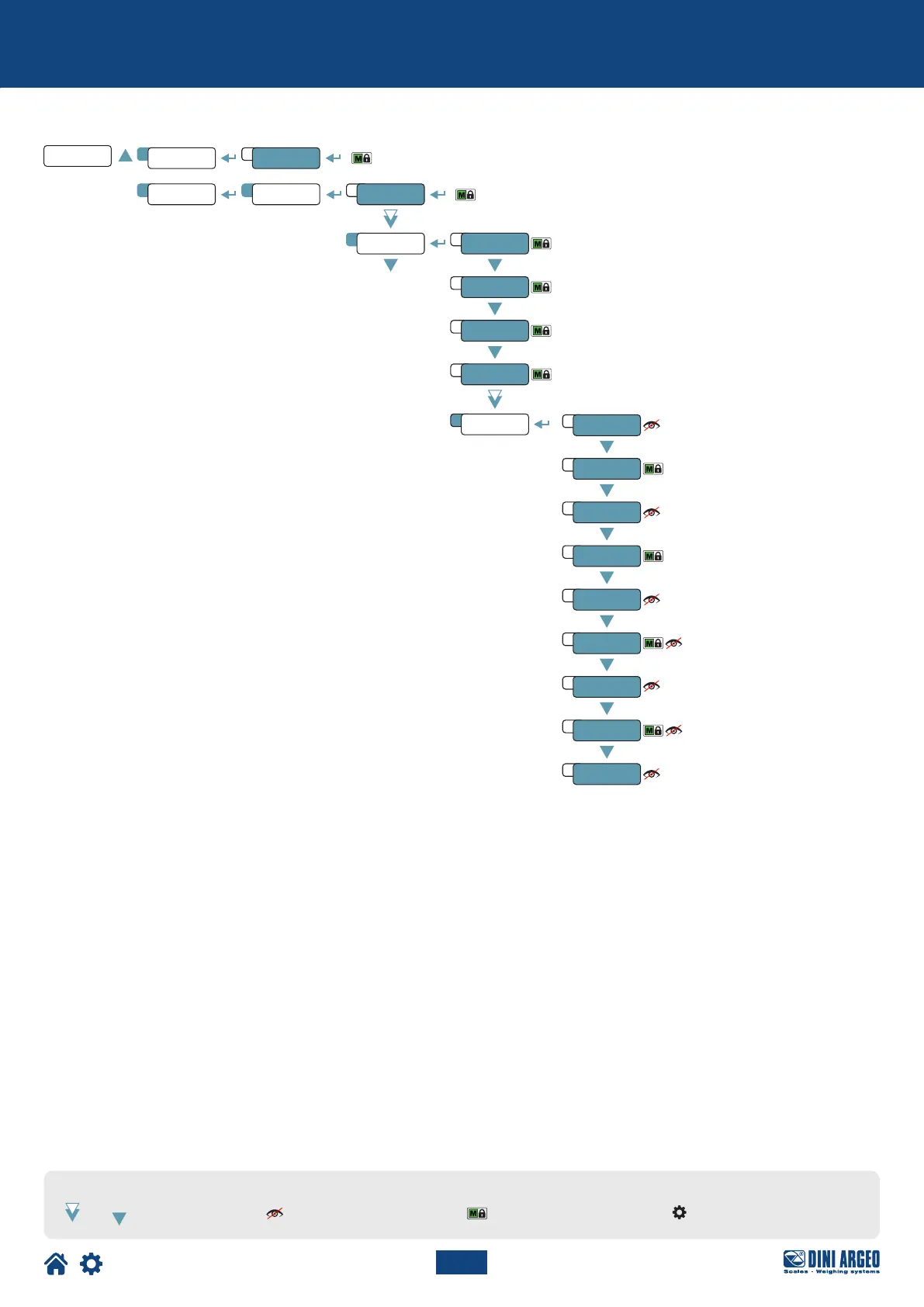

CALIBRATION PROCEDURE:
1. Select mode of use dep.Ch.
2. Set the number of connected scales (from 1 to 4).
3. Set the calibration parameters:
deCi = Number of decimals.
u.m. = Unit of measurement (kG, G, t, lb).
div = Minimum division.
ranGe1 = Maximum range.
4. Equalise the cells.
Attention: The equalisation procedure is not compulsory. However, for a good accuracy of the system, it is recommended to perform it.
To perform equalisation follow the instructions on page 33.
5. Acquire the calibration points (continued on next page)
Calibration with sample weights
Dependent channels (with digital equalisation)
